Toyota BZ3
2023-01 → present · chassis BEAM10,BEJG10 · catalogue 182310 · General
Supported model
Data version 2024-06

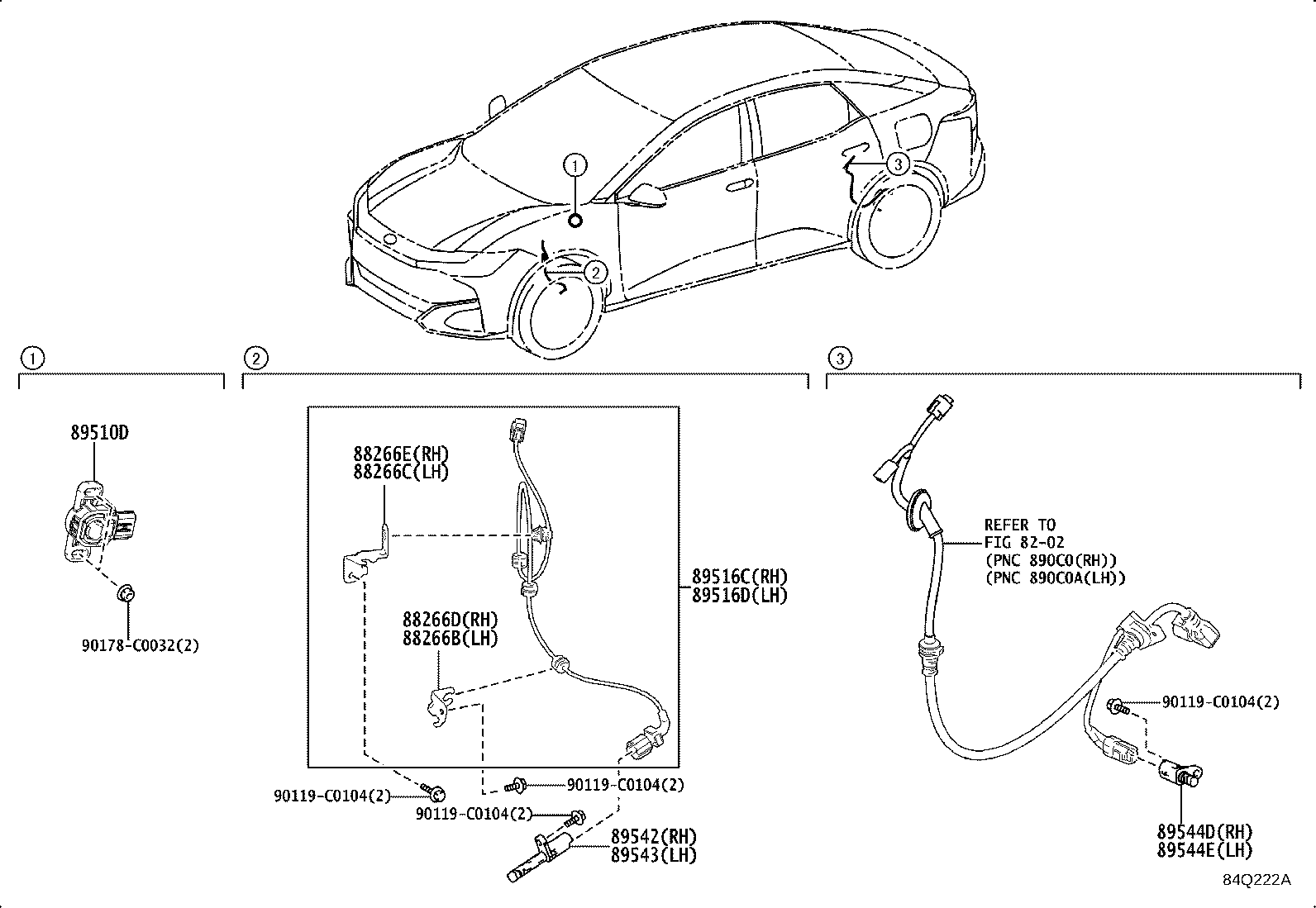

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 88266B — Clamp, Skid Control Sensor, NO.1 | ||||
| 88266-03010 |
Clamp, Skid Control Sensor, NO.1
2024-07 → —
|
BEJG10 | — | |
| 88266-03010 |
Clamp, Skid Control Sensor, NO.1
2023-01 → —
|
BEAM10 | — | |
| 88266C — Clamp, Skid Control Sensor, NO.2 | ||||
| 88266-03020 |
Clamp, Skid Control Sensor, NO.2
2024-07 → —
|
BEJG10 | — | |
| 88266-03020 |
Clamp, Skid Control Sensor, NO.2
2023-01 → —
|
BEAM10 | — | |
| 88266D — Clamp, Skid Control Sensor, NO.3 | ||||
| 88266-03030 |
Clamp, Skid Control Sensor, NO.3
2024-07 → —
|
BEJG10 | — | |
| 88266-03030 |
Clamp, Skid Control Sensor, NO.3
2023-01 → —
|
BEAM10 | — | |
| 88266E — Clamp, Skid Control Sensor, NO.4 | ||||
| 88266-03040 |
Clamp, Skid Control Sensor, NO.4
2024-07 → —
|
BEJG10 | — | |
| 88266-03040 |
Clamp, Skid Control Sensor, NO.4
2023-01 → —
|
BEAM10 | — | |
| 89510D — Sensor Assy, Brake Pedal Stroke | ||||
| 89510-0R040 |
Sensor Assy, Brake Pedal Stroke
2024-07 → —
|
BEJG10 | — | |
| 89510-0R040 |
Sensor Assy, Brake Pedal Stroke
2023-01 → —
|
BEAM10 | — | |
| 89516C — Wire, Skid Control Sensor, RH | ||||
| 89516-03020 |
Wire, Skid Control Sensor, RH
2024-07 → —
|
BEJG10 | — | |
| 89516-03020 |
Wire, Skid Control Sensor, RH
2023-01 → —
|
BEAM10 | — | |
| 89516D — Wire, Skid Control Sensor, LH | ||||
| 89516-03010 |
Wire, Skid Control Sensor, LH
2024-07 → —
|
BEJG10 | — | |
| 89516-03010 |
Wire, Skid Control Sensor, LH
2023-01 → —
|
BEAM10 | — | |
| 89542 — Sensor, Speed, Front RH | ||||
| 8954B-03020 |
Sensor, Speed, Front RH
2024-07 → —
|
BEJG10 | — | |
| 8954B-03020 |
Sensor, Speed, Front RH
2023-01 → —
|
BEAM10 | — | |
| 89543 — Sensor, Speed, Front LH | ||||
| 8954B-03020 |
Sensor, Speed, Front LH
2024-07 → —
|
BEJG10 | — | |
| 8954B-03020 |
Sensor, Speed, Front LH
2023-01 → —
|
BEAM10 | — | |
| 89544D — Sensor, Skid Control, Rear RH | ||||
| 89544-03010 |
Sensor, Skid Control, Rear RH
2024-07 → —
|
BEJG10 | — | |
| 89544-03010 |
Sensor, Skid Control, Rear RH
2023-01 → —
|
BEAM10 | — | |
| 89544E — Sensor, Skid Control, Rear LH | ||||
| 89544-03010 |
Sensor, Skid Control, Rear LH
2024-07 → —
|
BEJG10 | — | |
| 89544-03010 |
Sensor, Skid Control, Rear LH
2023-01 → —
|
BEAM10 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
