Toyota BZ3
2023-01 → present · chassis BEAM10,BEJG10 · catalogue 182310 · General
Supported model
Data version 2024-06

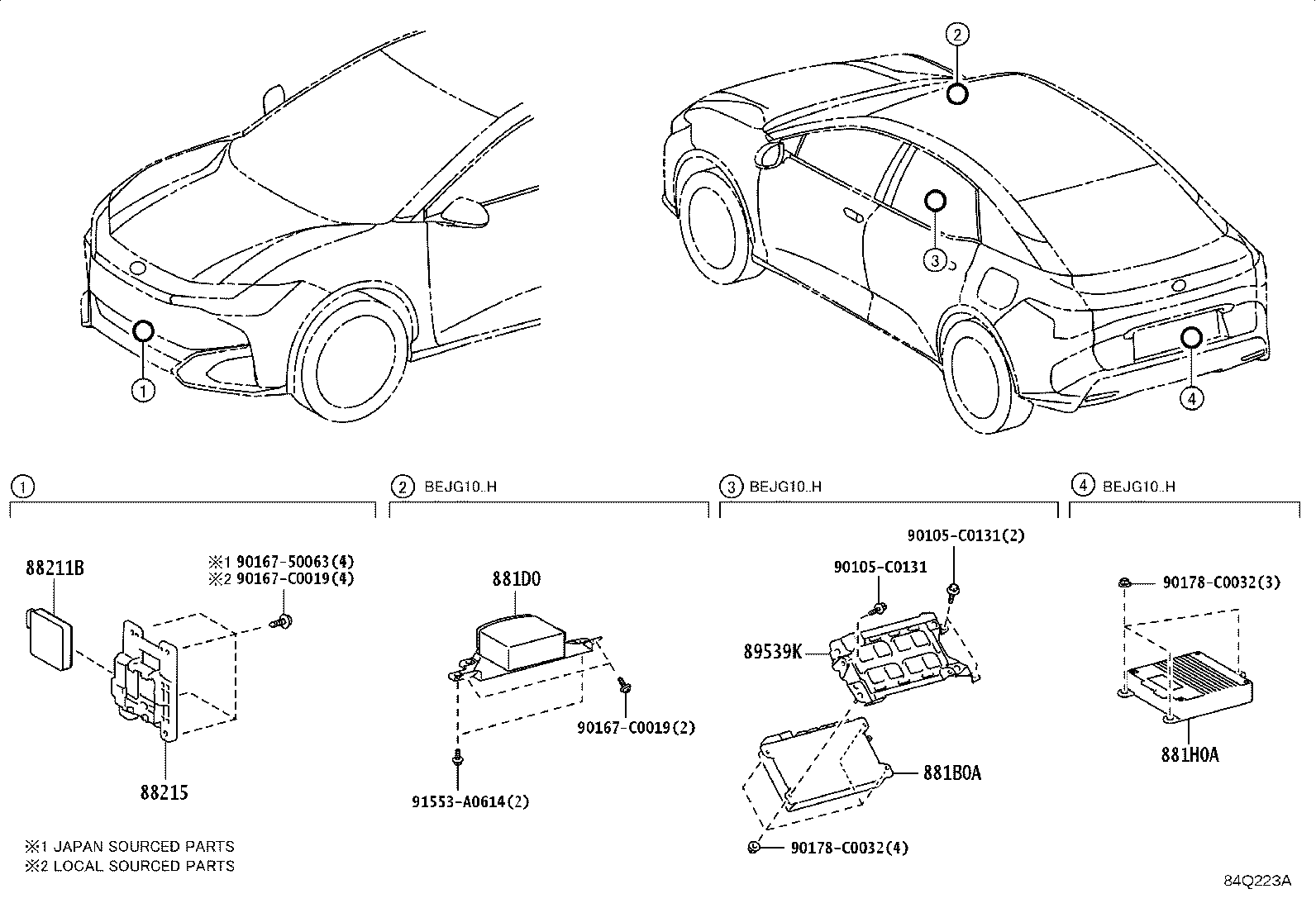

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 881B0A — Computer Assy, Advanced Drive Extension | ||||
| 881B0-03050 |
Computer Assy, Advanced Drive Extension
2024-07 → —
|
BEJG10 H | — | |
| 881D0 — Sensor Assy, Lidar Advanced Drive, Front | ||||
| 881D0-03020 |
Sensor Assy, Lidar Advanced Drive, Front
2024-07 → —
|
BEJG10 H | — | |
| 881H0A — Computer Assy, Spatial Information Service | ||||
| 881H0-03020 |
Computer Assy, Spatial Information Service
2024-07 → —
|
BEJG10 H | — | |
| 88211B — Sensor Assy, Millimeter Wave Radar | ||||
| 88210-03010 |
Sensor Assy, Millimeter Wave Radar
2024-07 → —
|
BEJG10 J,M,N | — | |
| 88210-03060 |
Sensor Assy, Millimeter Wave Radar
2024-07 → —
|
BEJG10 H | — | |
| 88210-03010 |
Sensor Assy, Millimeter Wave Radar
2023-01 → —
|
BEAM10 | — | |
| 88215 — Bracket, Millimeter Wave Radar Sensor, NO.1 | ||||
| 88215-03010 |
Bracket, Millimeter Wave Radar Sensor, NO.1
2024-07 → —
|
BEJG10 | — | |
| 88215-03010 |
Bracket, Millimeter Wave Radar Sensor, NO.1
2023-01 → —
|
BEAM10 | — | |
| 89539K — Bracket, Computer NO.1 | ||||
| 881C3-03010 |
Bracket, Computer NO.1
2024-07 → —
|
BEJG10 H | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
