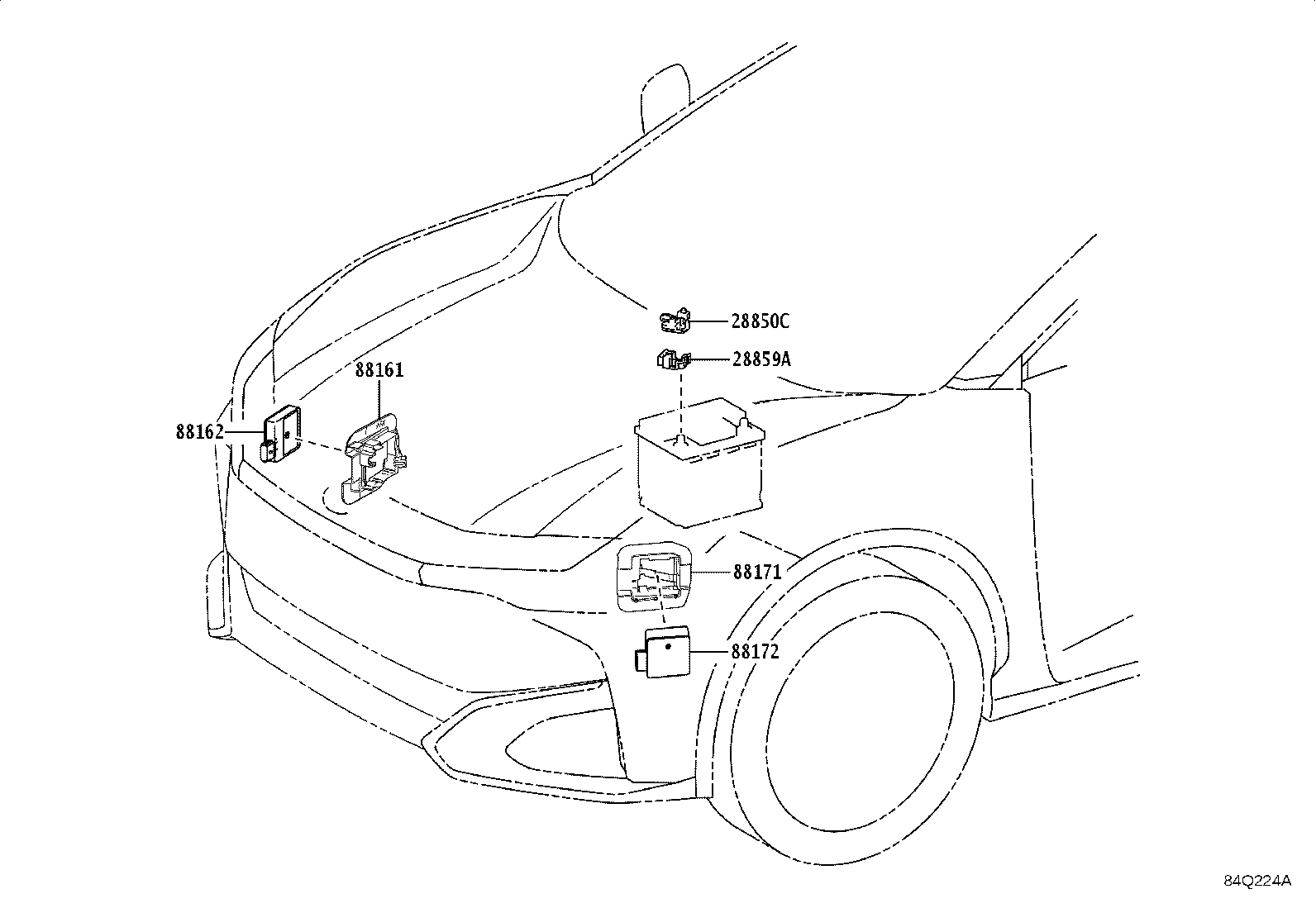

Toyota BZ3
2023-01 → present · chassis BEAM10,BEJG10 · catalogue 182310 · General
Supported model
Data version 2024-06
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 28850C — Sensor Assy, Battery State | ||||
| 28850-K0010 |
Sensor Assy, Battery State
2023-01 → —
|
EM BEAM10 | — | |
| 28859A — Holder, Battery Current Sensor | ||||
| 28859-F0170 |
Holder, Battery Current Sensor
2023-01 → —
|
EM BEAM10 | — | |
| 88161 — Bracket, Blind Spot Monitor, RH | ||||
| 88161-03010 |
Bracket, Blind Spot Monitor, RH
2024-07 → —
|
BEJG10 H,J | — | |
| 88161-03010 note |
Bracket, Blind Spot Monitor, RH
2024-07 → —
|
BEJG10 M,N | — | |
| 88161-03040 |
Bracket, Blind Spot Monitor, RH
2024-07 → —
|
BEJG10 H | — | |
| 88161-03010 |
Bracket, Blind Spot Monitor, RH
2023-01 → —
|
BEAM10 J | — | |
| 88161-03010 note |
Bracket, Blind Spot Monitor, RH
2023-01 → —
|
BEAM10 M,N | — | |
| 88162 — Sensor, Blind Spot Monitor, RH | ||||
| 88162-03020 |
Sensor, Blind Spot Monitor, RH
2024-07 → —
|
BEJG10 J | — | |
| 88162-03020 note |
Sensor, Blind Spot Monitor, RH
2024-07 → —
|
BEJG10 M,N | — | |
| 88162-03070 |
Sensor, Blind Spot Monitor, RH
2024-07 → —
|
BEJG10 H | — | |
| 88162-03020 note |
Sensor, Blind Spot Monitor, RH
2023-01 → —
|
BEAM10 M,N | — | |
| 88162-03020 |
Sensor, Blind Spot Monitor, RH
2023-01 → —
|
BEAM10 J | — | |
| 88171 — Bracket, Blind Spot Monitor, LH | ||||
| 88171-03010 |
Bracket, Blind Spot Monitor, LH
2024-07 → —
|
BEJG10 H,J | — | |
| 88171-03010 note |
Bracket, Blind Spot Monitor, LH
2024-07 → —
|
BEJG10 M,N | — | |
| 88171-03040 |
Bracket, Blind Spot Monitor, LH
2024-07 → —
|
BEJG10 H | — | |
| 88171-03010 |
Bracket, Blind Spot Monitor, LH
2023-01 → —
|
BEAM10 J | — | |
| 88171-03010 note |
Bracket, Blind Spot Monitor, LH
2023-01 → —
|
BEAM10 M,N | — | |
| 88172 — Sensor, Blind Spot Monitor, LH | ||||
| 88162-03020 |
Sensor, Blind Spot Monitor, LH
2024-07 → —
|
BEJG10 J | — | |
| 88162-03020 note |
Sensor, Blind Spot Monitor, LH
2024-07 → —
|
BEJG10 M,N | — | |
| 88162-03070 |
Sensor, Blind Spot Monitor, LH
2024-07 → —
|
BEJG10 H | — | |
| 88162-03020 |
Sensor, Blind Spot Monitor, LH
2023-01 → —
|
BEAM10 J | — | |
| 88162-03020 note |
Sensor, Blind Spot Monitor, LH
2023-01 → —
|
BEAM10 M,N | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
