Toyota BZ3
2023-01 → present · chassis BEAM10,BEJG10 · catalogue 182310 · General
Supported model
Data version 2024-06

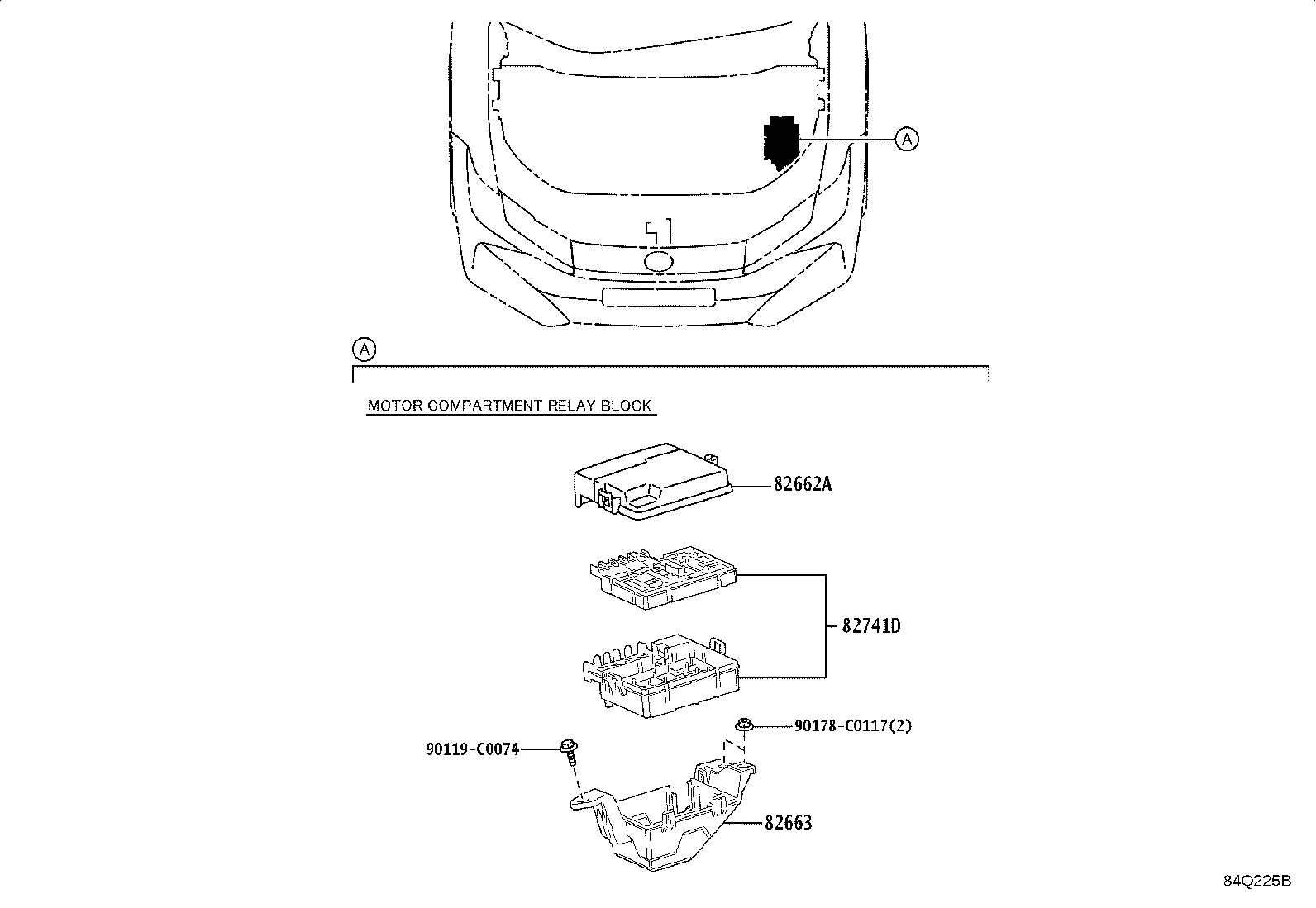

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82662A — Cover, Relay Block, Upper, NO.1 | ||||
| 82662-03020 |
Cover, Relay Block, Upper, NO.1
2024-07 → —
|
BEJG10 | — | |
| 82662-03010 |
Cover, Relay Block, Upper, NO.1
2023-01 → —
|
BEAM10 | — | |
| 82663 — Cover, Relay Block, Lower | ||||
| 82663-03010 |
Cover, Relay Block, Lower
2024-07 → —
|
BEJG10 | — | |
| 82663-03010 |
Cover, Relay Block, Lower
2023-01 → —
|
BEAM10 | — | |
| 82741D — Block, Front Compartment Relay | ||||
| 82740-03020 |
Block, Front Compartment Relay
2024-07 → —
|
BEJG10 | — | |
| 82740-03010 |
Block, Front Compartment Relay
2023-01 → —
|
BEAM10 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
