Toyota BZ3
2023-01 → present · chassis BEAM10,BEJG10 · catalogue 182310 · General
Supported model
Data version 2024-06

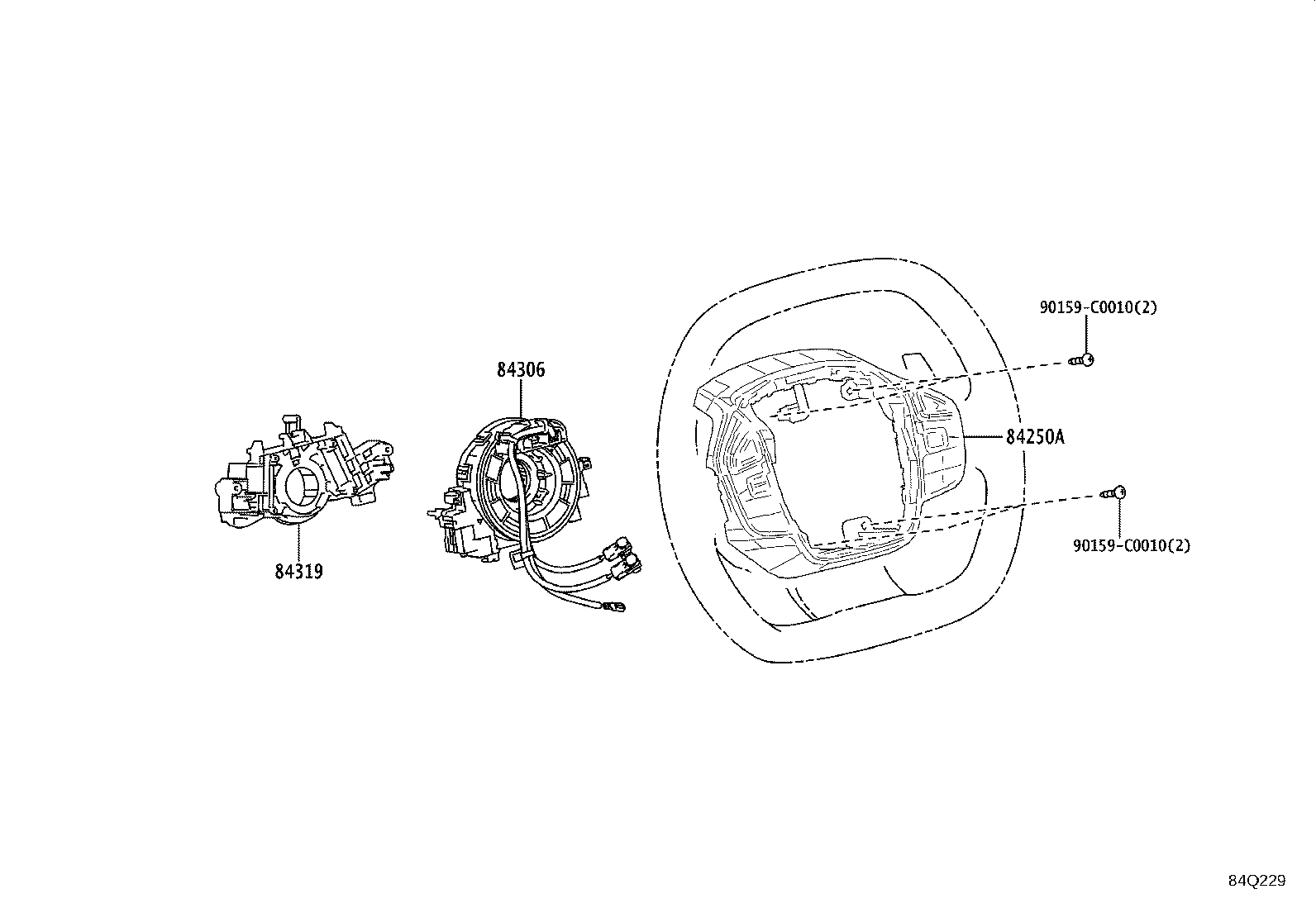

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 84250A — Switch Assy, Steering Pad | ||||
| 84250-03050 |
Switch Assy, Steering Pad
2024-07 → —
|
BEJG10 J,M,N | — | |
| 84250-03060 |
Switch Assy, Steering Pad
2024-07 → —
|
BEJG10 H | — | |
| 84250-03030 |
Switch Assy, Steering Pad
2023-01 → —
|
BEAM10 | — | |
| 84306 — Cable Sub-assy, Spiral | ||||
| 84306-03010 |
Cable Sub-assy, Spiral
2024-07 → —
|
BEJG10 M,N | — | |
| 84306-03020 |
Cable Sub-assy, Spiral
2024-07 → —
|
BEJG10 H,J | — | |
| 84306-03020 note |
Cable Sub-assy, Spiral
2024-07 → —
|
BEJG10 M,N | — | |
| 84306-03020 note |
Cable Sub-assy, Spiral
2024-07 → —
|
BEJG10 M,N | — | |
| 84306-03010 |
Cable Sub-assy, Spiral
2023-01 → —
|
BEAM10 M,N | — | |
| 84306-03020 |
Cable Sub-assy, Spiral
2023-01 → —
|
BEAM10 J | — | |
| 84306-03020 note |
Cable Sub-assy, Spiral
2023-01 → —
|
BEAM10 M,N | — | |
| 84319 — Housing, Steering Wheel Switch | ||||
| 84319-03030 |
Housing, Steering Wheel Switch
2024-07 → —
|
BEJG10 | — | |
| 84319-03030 |
Housing, Steering Wheel Switch
2023-01 → —
|
BEAM10 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
