Toyota BZ3
2023-01 → present · chassis BEAM10,BEJG10 · catalogue 182310 · General
Supported model
Data version 2024-06

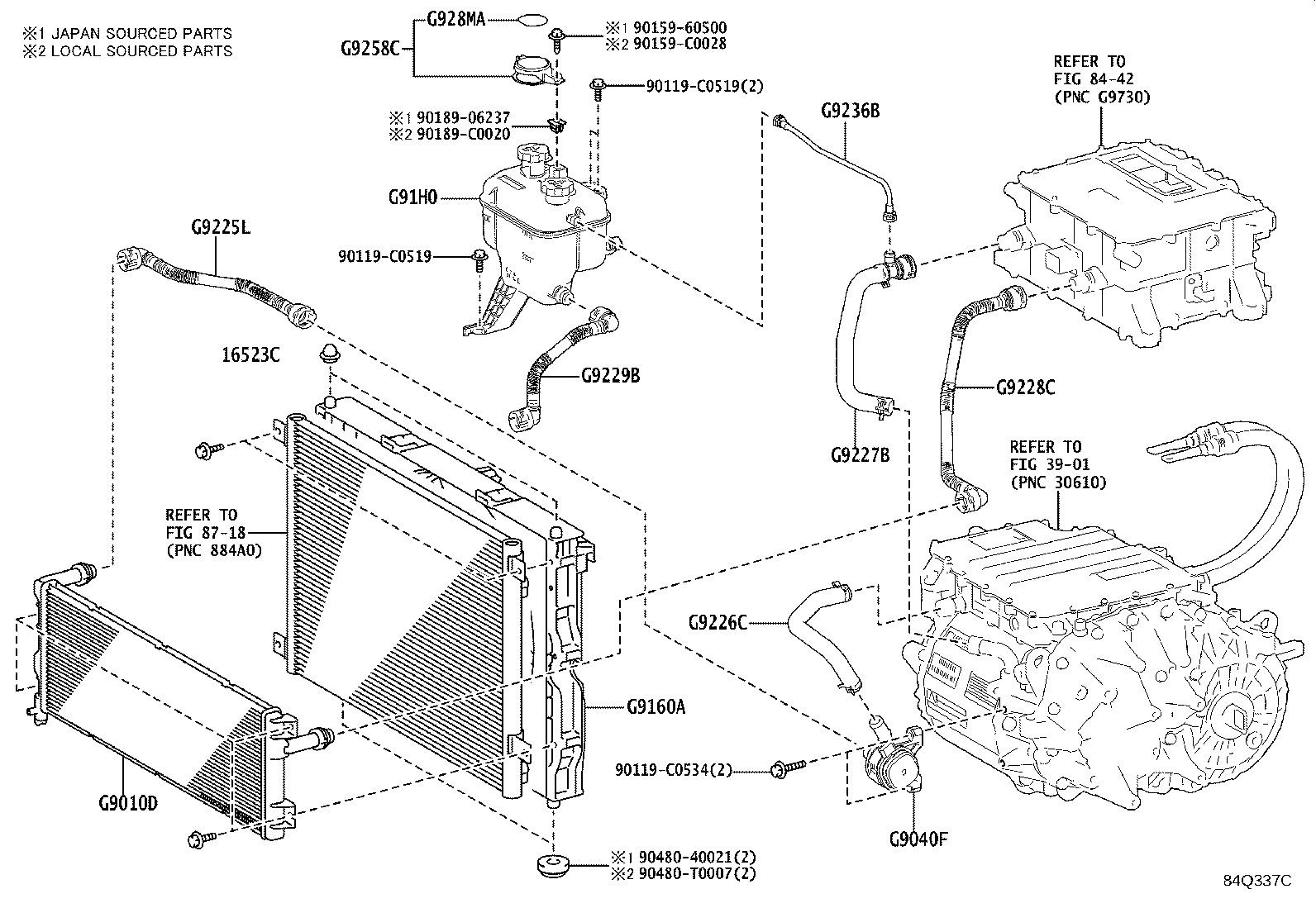

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 16523C — Cushion, Radiator Support | ||||
| 16523-F2010 |
Cushion, Radiator Support
2024-07 → —
|
EM BEJG10 | — | |
| 16523-F2010 |
Cushion, Radiator Support
2023-01 → —
|
EM BEAM10 | — | |
| G9010D — Radiator Assy | ||||
| G9010-03010 |
Radiator Assy
2024-07 → —
|
BEJG10 | — | |
| G9010-03010 |
Radiator Assy
2023-01 → —
|
BEAM10 | — | |
| G9040F — Pump Assy, Water W/Motor, NO.2 | ||||
| G9040-03010 |
Pump Assy, Water W/Motor, NO.2
2024-07 → —
|
BEJG10 | — | |
| G9040-03010 |
Pump Assy, Water W/Motor, NO.2
2023-01 → —
|
BEAM10 | — | |
| G9160A — Fan Assy, Inverter Cooling W/Motor | ||||
| G9160-03010 |
Fan Assy, Inverter Cooling W/Motor
2024-07 → —
|
BEJG10 | — | |
| G9160-03010 |
Fan Assy, Inverter Cooling W/Motor
2023-01 → —
|
BEAM10 | — | |
| G91H0 — Tank Assy, Battery Reserve | ||||
| G91H0-03010 |
Tank Assy, Battery Reserve
2024-07 → —
|
BEJG10 | — | |
| G91H0-03010 |
Tank Assy, Battery Reserve
2023-01 → —
|
BEAM10 | — | |
| G9225L — Hose, Inverter Cooling, NO.1 | ||||
| G9225-03010 |
Hose, Inverter Cooling, NO.1
2024-07 → —
|
BEJG10 | — | |
| G9225-03010 |
Hose, Inverter Cooling, NO.1
2023-01 → —
|
BEAM10 | — | |
| G9226C — Hose, Inverter Cooling, NO.2 | ||||
| G9226-03010 |
Hose, Inverter Cooling, NO.2
2024-07 → —
|
BEJG10 J,M,N | — | |
| G9226-03020 |
Hose, Inverter Cooling, NO.2
2024-07 → —
|
BEJG10 H | — | |
| G9226-03010 |
Hose, Inverter Cooling, NO.2
2023-01 → —
|
BEAM10 | — | |
| G9227B — Hose, Inverter Cooling, NO.3 | ||||
| G9227-03010 |
Hose, Inverter Cooling, NO.3
2024-07 → —
|
BEJG10 | — | |
| G9227-03010 |
Hose, Inverter Cooling, NO.3
2023-01 → —
|
BEAM10 | — | |
| G9228C — Hose, Inverter Cooling, NO.4 | ||||
| G9228-03010 |
Hose, Inverter Cooling, NO.4
2024-07 → —
|
BEJG10 | — | |
| G9228-03010 |
Hose, Inverter Cooling, NO.4
2023-01 → —
|
BEAM10 | — | |
| G9229B — Hose, Inverter Cooling, NO.5 | ||||
| G9229-03010 |
Hose, Inverter Cooling, NO.5
2024-07 → —
|
BEJG10 | — | |
| G9229-03010 |
Hose, Inverter Cooling, NO.5
2023-01 → —
|
BEAM10 | — | |
| G9236B — Hose, Inverter Cooling, NO.6 | ||||
| G9236-03010 |
Hose, Inverter Cooling, NO.6
2024-07 → —
|
BEJG10 J,M,N | — | |
| G9236-03030 |
Hose, Inverter Cooling, NO.6
2024-07 → —
|
BEJG10 H | — | |
| G9236-03010 |
Hose, Inverter Cooling, NO.6
2023-01 → —
|
BEAM10 | — | |
| G9258C — Cap, Battery Reserve Tank | ||||
| G96JC-0R020 |
Cap, Battery Reserve Tank
2024-07 → —
|
BEJG10 | — | |
| G96JC-0R020 |
Cap, Battery Reserve Tank
2023-01 → —
|
BEAM10 | — | |
| G928MA — Label, Battery Coolant Caution | ||||
| G928M-0R020 |
Label, Battery Coolant Caution
2024-07 → —
|
BEJG10 | — | |
| G928M-0R020 |
Label, Battery Coolant Caution
2023-01 → —
|
BEAM10 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
