Toyota BZ3
2023-01 → present · chassis BEAM10,BEJG10 · catalogue 182310 · General
Supported model
Data version 2024-06

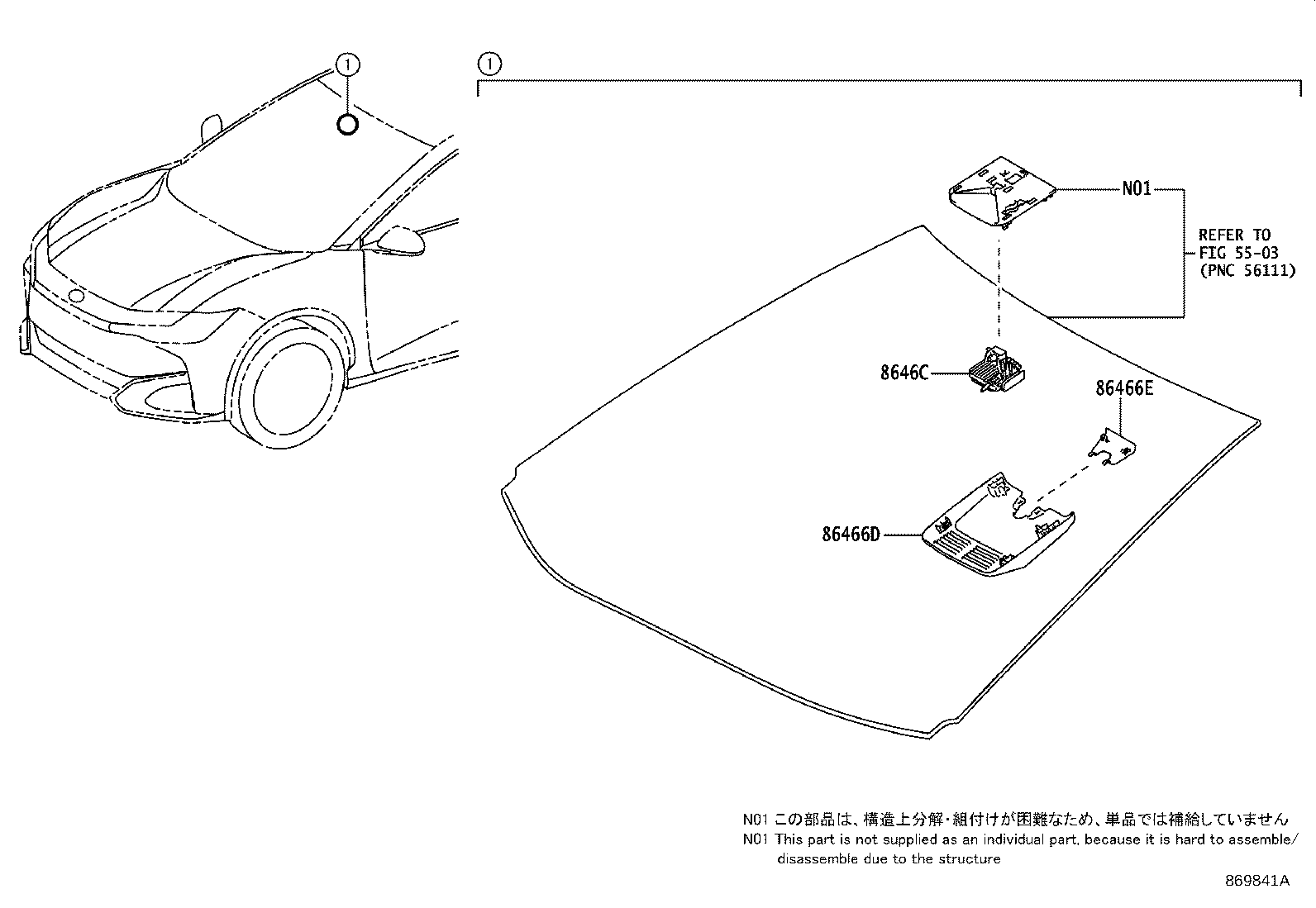

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 86466D — Cover, Forward Recognition, NO.1 | ||||
| 86466-03040 |
Cover, Forward Recognition, NO.1
2024-07 → —
|
BEJG10 J,M,N | — | |
| 86466-03050 |
Cover, Forward Recognition, NO.1
2024-07 → —
|
BEJG10 H | — | |
| 86466-03010 |
Cover, Forward Recognition, NO.1
2023-01 → —
|
BEAM10 | — | |
| 86466E — Cover, Forward Recognition, NO.2 | ||||
| 86467-03040 |
Cover, Forward Recognition, NO.2
2024-07 → —
|
BEJG10 J,M,N | — | |
| 86467-03050 |
Cover, Forward Recognition, NO.2
2024-07 → —
|
BEJG10 H | — | |
| 86467-03010 |
Cover, Forward Recognition, NO.2
2023-01 → —
|
BEAM10 | — | |
| 8646C — Camera, Forward Recognition | ||||
| 86462-03010 |
Camera, Forward Recognition
2024-07 → —
|
BEJG10 H | — | |
| 8646C-03011 |
Camera, Forward Recognition
2024-07 → —
|
BEJG10 J,M,N | — | |
| 8646C-03010 |
Camera, Forward Recognition
2023-01 → —
|
BEAM10 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
