Toyota BZ3
2023-01 → present · chassis BEAM10,BEJG10 · catalogue 182310 · General
Supported model
Data version 2024-06

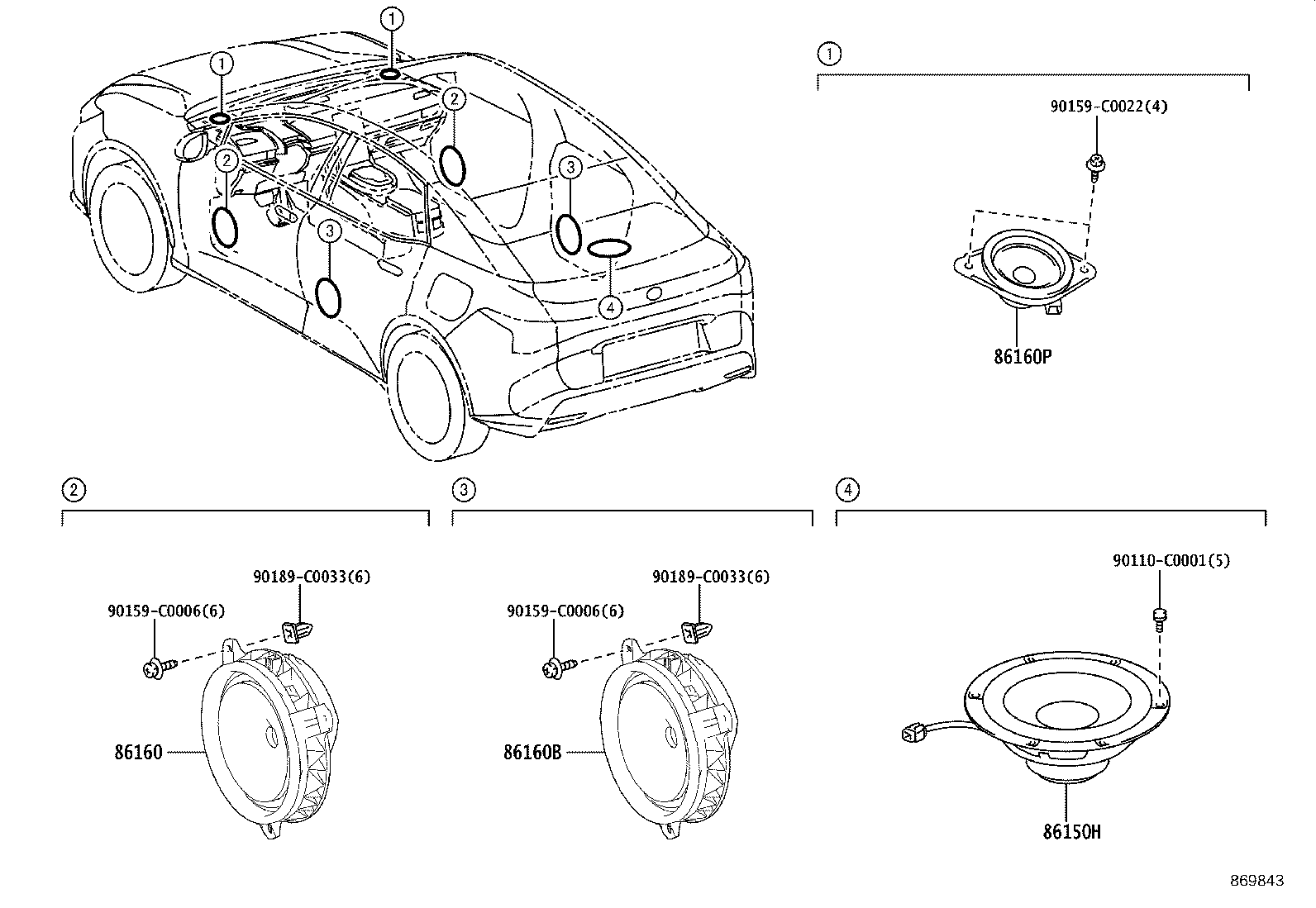

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 86150H — Speaker Assy, W/Bracket | ||||
| 86150-03040 |
Speaker Assy, W/Bracket
2024-07 → —
|
BEJG10 H,J | — | |
| 86150-03040 |
Speaker Assy, W/Bracket
2023-01 → —
|
BEAM10 J | — | |
| 86160 — Speaker Assy, Front NO.1 | ||||
| 86160-02C60 |
Speaker Assy, Front NO.1
2024-07 → —
|
BEJG10 | — | |
| 86160-02C60 |
Speaker Assy, Front NO.1
2023-01 → —
|
BEAM10 | — | |
| 86160B — Speaker Assy, Rear | ||||
| 86160-02C60 |
Speaker Assy, Rear
2024-07 → —
|
BEJG10 | — | |
| 86160-02C60 |
Speaker Assy, Rear
2023-01 → —
|
BEAM10 | — | |
| 86160P — Speaker Assy, Front NO.2 | ||||
| 86160-0R170 |
Speaker Assy, Front NO.2
2024-07 → —
|
BEJG10 | — | |
| 86160-0R170 |
Speaker Assy, Front NO.2
2023-01 → —
|
BEAM10 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
