Toyota BZ3
2023-01 → present · chassis BEAM10,BEJG10 · catalogue 182310 · General
Supported model
Data version 2024-06

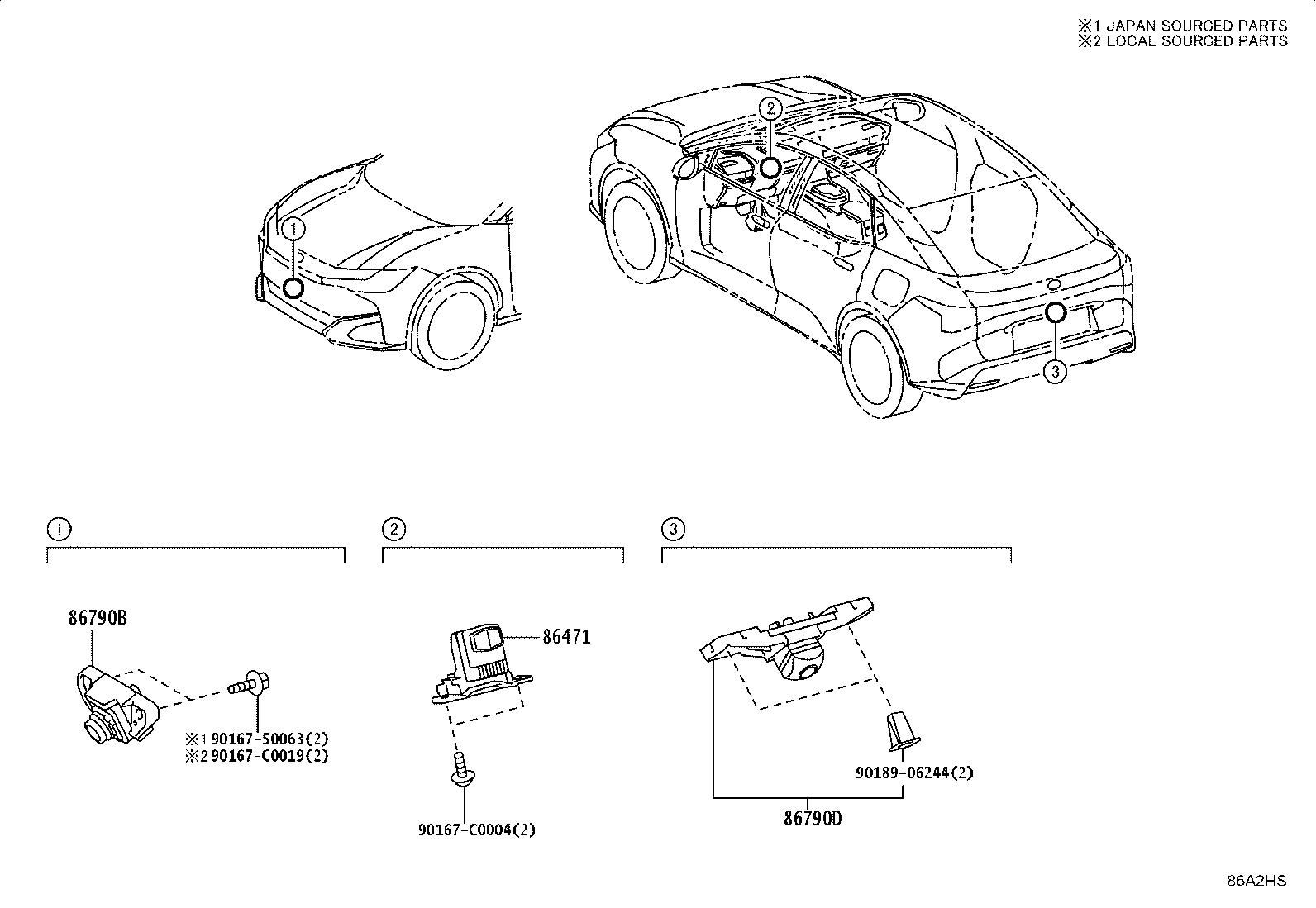

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 86471 — Camera, Driver Monitor | ||||
| 86471-03030 note |
Camera, Driver Monitor
2024-07 → —
|
BEJG10 M,N | — | |
| 86471-03030 note |
Camera, Driver Monitor
2024-07 → —
|
BEJG10 M,N | — | |
| 86471-03030 |
Camera, Driver Monitor
2024-07 → —
|
BEJG10 H,J | — | |
| 86471-03020 |
Camera, Driver Monitor
2023-01 → —
|
BEAM10 J | — | |
| 86471-03020 note |
Camera, Driver Monitor
2023-01 → —
|
BEAM10 M,N | — | |
| 86790B — Camera Assy, Television, FR | ||||
| 86790-03210 |
Camera Assy, Television, FR
2024-07 → —
|
BEJG10 J | — | |
| 86790-03210 note |
Camera Assy, Television, FR
2024-07 → —
|
BEJG10 M,N | — | |
| 86790-03250 |
Camera Assy, Television, FR
2024-07 → —
|
BEJG10 H | — | |
| 86790-03010 |
Camera Assy, Television, FR
2023-01 → —
|
BEAM10 J | — | |
| 86790-03010 note |
Camera Assy, Television, FR
2023-01 → —
|
BEAM10 M,N | — | |
| 86790D — Camera Assy, Television, RR | ||||
| 86790-03240 |
Camera Assy, Television, RR
2024-07 → —
|
BEJG10 J | — | |
| 86790-03240 note |
Camera Assy, Television, RR
2024-07 → —
|
BEJG10 M,N | — | |
| 86790-03270 |
Camera Assy, Television, RR
2024-07 → —
|
BEJG10 H | — | |
| 867B0-03050 |
Camera Assy, Television, RR
2024-07 → —
|
BEJG10 M,N | — | |
| 86790-03040 |
Camera Assy, Television, RR
2023-01 → —
|
BEAM10 J | — | |
| 86790-03040 note |
Camera Assy, Television, RR
2023-01 → —
|
BEAM10 M,N | — | |
| 867B0-03020 |
Camera Assy, Television, RR
2023-01 → —
|
BEAM10 M,N | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
