Toyota BZ3
2023-01 → present · chassis BEAM10,BEJG10 · catalogue 182310 · General
Supported model
Data version 2024-06

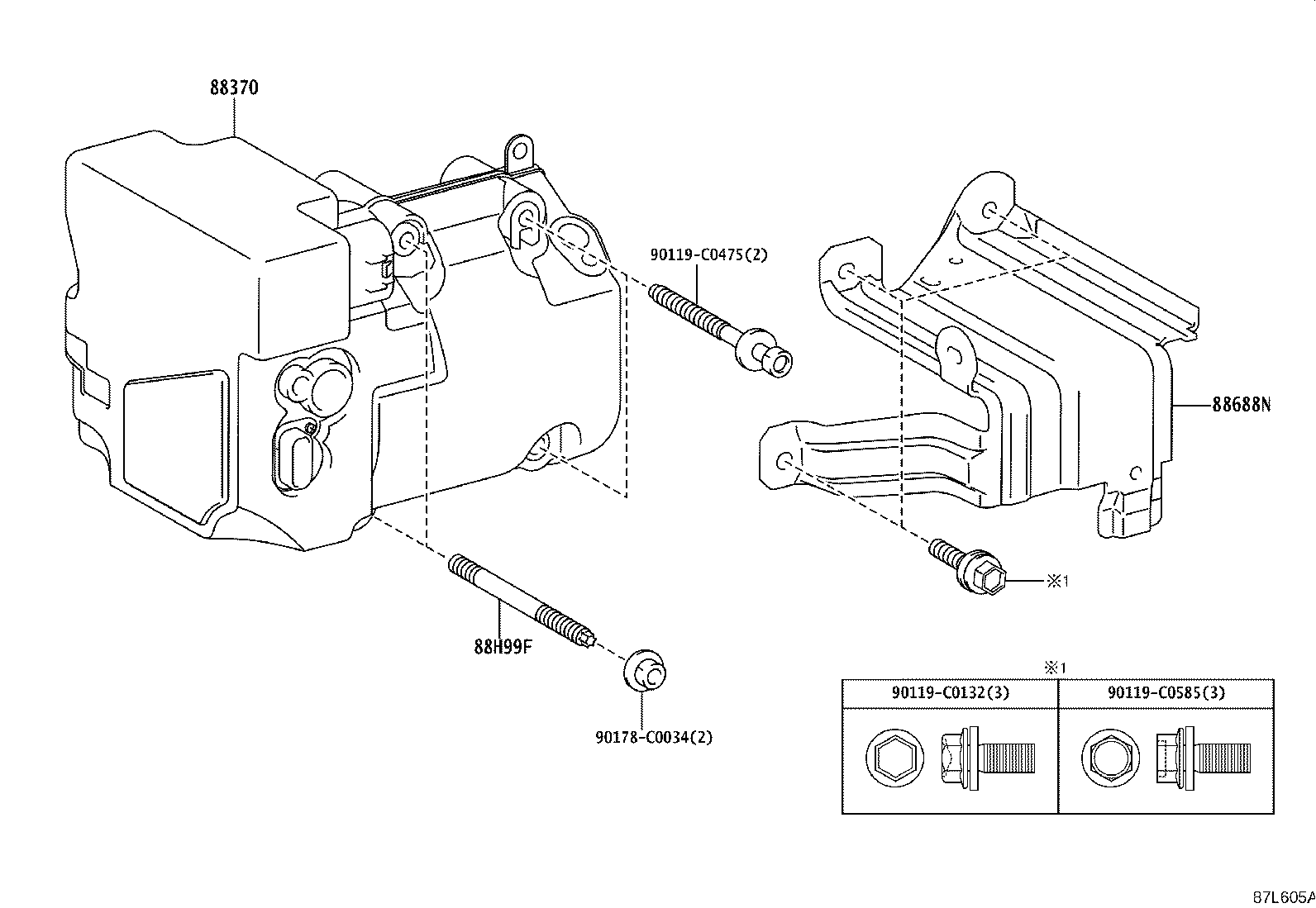

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 88370 — Compressor Assy, W/Motor | ||||
| 88370-03030 |
Compressor Assy, W/Motor
2024-07 → —
|
BEJG10 | — | |
| 88370-03020 |
Compressor Assy, W/Motor
2023-01 → —
|
BEAM10 | — | |
| 88688N — Bracket, Cooler | ||||
| 88688-03060 |
Bracket, Cooler
2024-07 → —
|
BEJG10 | — | |
| 88688-03060 |
Bracket, Cooler
2023-01 → —
|
BEAM10 | — | |
| 88H99F — Bolt, Stud | ||||
| 88899-44010 note |
Bolt, Stud
2024-07 → —
|
BEJG10 | — | |
| 90126-C0025 note |
Bolt, Stud
2024-07 → —
|
BEJG10 | — | |
| 88899-44010 note |
Bolt, Stud
2023-01 → —
|
BEAM10 | — | |
| 90126-C0025 note |
Bolt, Stud
2023-01 → —
|
BEAM10 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
