Toyota BZ3

2023-01 → present · chassis BEAM10,BEJG10 · catalogue 182310 · General

Supported model Data version 2024-06

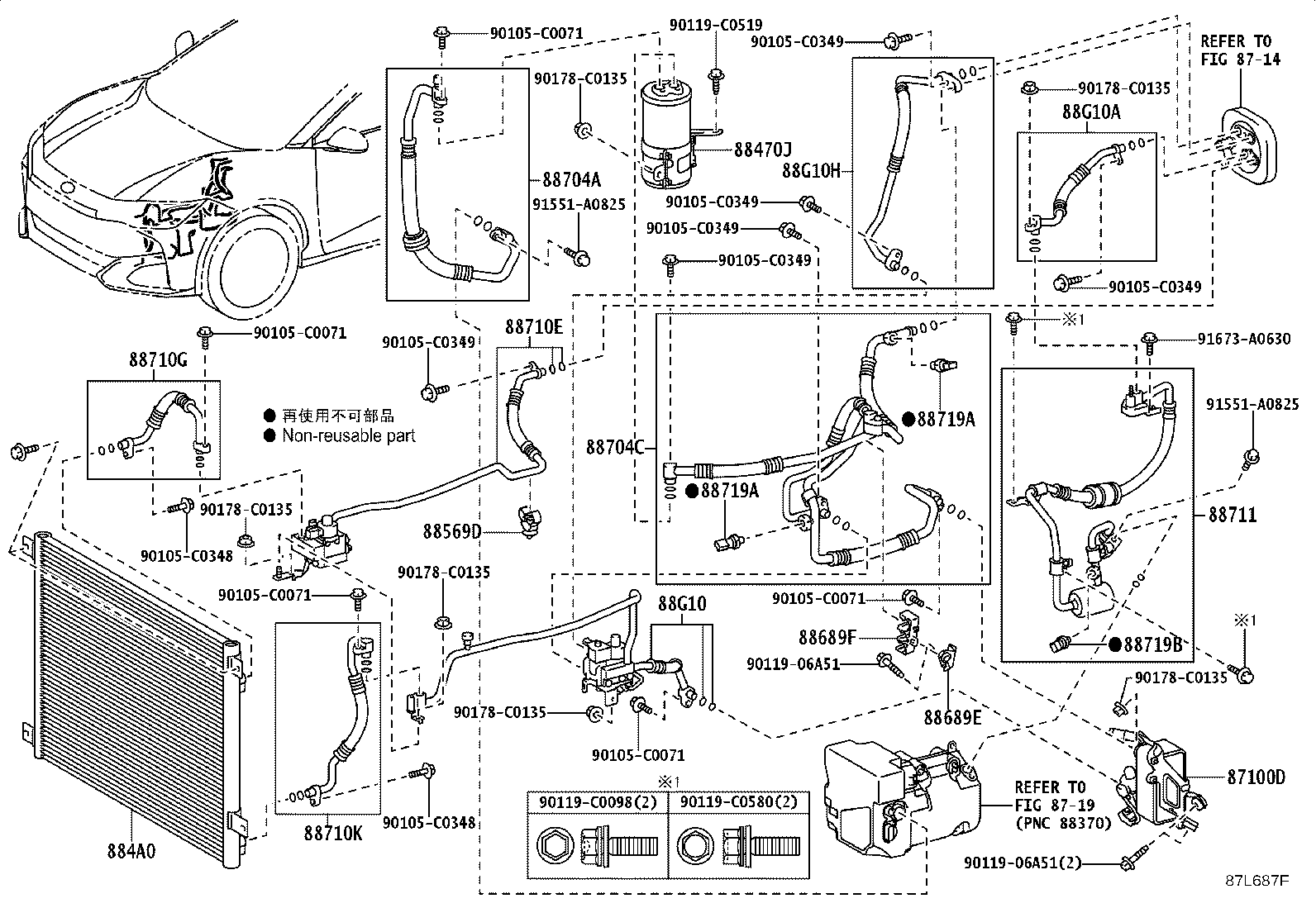

Exploded illustration 87L687F 88704A — HOSE SUB-ASSY, SUCTION, A (2 parts) 88470J — RECEIVER ASSY (2 parts) 88689E — BRACKET, COOLER, NO.1 (2 parts) 88719A — SENSOR, AIR CONDITIONER PRESSURE (2 parts) 88719A — SENSOR, AIR CONDITIONER PRESSURE (2 parts) 88719B — SENSOR, AIR CONDITIONER PRESSURE, NO.2 (2 parts) 88689F — BRACKET, COOLER, NO.2 (2 parts) 87100D — HEATER & ACCESSORY ASSY (2 parts) 90105C0071 — not listed in this catalogue 90105C0349 — not listed in this catalogue 90105C0349 — not listed in this catalogue 90178C0135 — not listed in this catalogue 90105C0348 — not listed in this catalogue 90178C0135 — not listed in this catalogue 90105C0349 — not listed in this catalogue 90119C0519 — not listed in this catalogue 90178C0135 — not listed in this catalogue 9011906A51 — not listed in this catalogue 90178C0135 — not listed in this catalogue 91551A0825 — not listed in this catalogue 91551A0825 — not listed in this catalogue 91673A0630 — not listed in this catalogue 9011906A51 — not listed in this catalogue 90105C0071 — not listed in this catalogue 88704C — HOSE SUB-ASSY, SUCTION, B (2 parts) 88710G — TUBE & ACCESSORY ASSY, AIR CONDITIONER, NO.2 (2 parts) 88710E — TUBE & ACCESSORY ASSY, AIR CONDITIONER (2 parts) 90105C0071 — not listed in this catalogue 88569D — CLAMP, COOLER, NO.1 (2 parts) 8714 — not listed in this catalogue 8719 — not listed in this catalogue 88G10A — TUBE & ACCESSORY ASSY, AIR CONDITIONER, NO.5 (2 parts) 90105C0349 — not listed in this catalogue 90105C0349 — not listed in this catalogue 88710K — TUBE & ACCESSORY ASSY, AIR CONDITIONER, NO.3 (2 parts) 884A0 — CONDENSER ASSY, COOLER (2 parts) 90105C0071 — not listed in this catalogue 90178C0135 — not listed in this catalogue 88G10 — TUBE & ACCESSORY ASSY, AIR CONDITIONER, NO.4 (2 parts) 90105C0348 — not listed in this catalogue 90178C0135 — not listed in this catalogue 88G10H — TUBE & ACCESSORY ASSY, AIR CONDITIONER, NO.6 (2 parts) 90105C0349 — not listed in this catalogue 88711 — HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 (2 parts) 90105C0071 — not listed in this catalogue 90119C0580 — not listed in this catalogue 90119C0098 — not listed in this catalogue
87L687F · 18 callouts, 29 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
34 parts on this figure
Part number Description Fitment Price
87100D — Heater & Accessory Assy
87100-03010 Heater & Accessory Assy
2024-07 → —
BEJG10 —
87100-03010 Heater & Accessory Assy
2023-01 → —
BEAM10 —
88470J — Receiver Assy
88470-03020 Receiver Assy
2024-07 → —
BEJG10 —
88470-03020 Receiver Assy
2023-01 → —
BEAM10 —
884A0 — Condenser Assy, Cooler
884A0-03010 Condenser Assy, Cooler
2024-07 → —
BEJG10 —
884A0-03010 Condenser Assy, Cooler
2023-01 → —
BEAM10 —
88569D — Clamp, Cooler, NO.1
88899-03130 Clamp, Cooler, NO.1
2024-07 → —
BEJG10 —
88899-03130 Clamp, Cooler, NO.1
2023-01 → —
BEAM10 —
88689E — Bracket, Cooler, NO.1
88688-03040 Bracket, Cooler, NO.1
2024-07 → —
BEJG10 —
88688-03040 Bracket, Cooler, NO.1
2023-01 → —
BEAM10 —
88689F — Bracket, Cooler, NO.2
88688-03050 Bracket, Cooler, NO.2
2024-07 → —
BEJG10 —
88688-03050 Bracket, Cooler, NO.2
2023-01 → —
BEAM10 —
88704A — Hose Sub-assy, Suction, A
88704-03060 Hose Sub-assy, Suction, A
2024-07 → —
BEJG10 —
88704-03010 Hose Sub-assy, Suction, A
2023-01 → —
BEAM10 —
88704C — Hose Sub-assy, Suction, B
88704-03030 Hose Sub-assy, Suction, B
2024-07 → —
BEJG10 —
88704-03020 Hose Sub-assy, Suction, B
2023-01 → —
BEAM10 —
88710E — Tube & Accessory Assy, Air Conditioner
88710-03020 Tube & Accessory Assy, Air Conditioner
2024-07 → —
BEJG10 —
88710-03020 Tube & Accessory Assy, Air Conditioner
2023-01 → —
BEAM10 —
88710G — Tube & Accessory Assy, Air Conditioner, NO.2
88710-03030 Tube & Accessory Assy, Air Conditioner, NO.2
2024-07 → —
BEJG10 —
88710-03030 Tube & Accessory Assy, Air Conditioner, NO.2
2023-01 → —
BEAM10 —
88710K — Tube & Accessory Assy, Air Conditioner, NO.3
88710-03040 Tube & Accessory Assy, Air Conditioner, NO.3
2024-07 → —
BEJG10 —
88710-03040 Tube & Accessory Assy, Air Conditioner, NO.3
2023-01 → —
BEAM10 —
88711 — Hose, Cooler Refrigerant Discharge, NO.1
88711-03040 Hose, Cooler Refrigerant Discharge, NO.1
2024-07 → —
BEJG10 —
88711-03030 Hose, Cooler Refrigerant Discharge, NO.1
2023-01 → —
BEAM10 —
88719A — Sensor, Air Conditioner Pressure
88719-03020 Sensor, Air Conditioner Pressure
2024-07 → —
BEJG10 —
88719-03020 Sensor, Air Conditioner Pressure
2023-01 → —
BEAM10 —
88719B — Sensor, Air Conditioner Pressure, NO.2
88719-03010 Sensor, Air Conditioner Pressure, NO.2
2024-07 → —
BEJG10 —
88719-03010 Sensor, Air Conditioner Pressure, NO.2
2023-01 → —
BEAM10 —
88G10 — Tube & Accessory Assy, Air Conditioner, NO.4
88710-03050 Tube & Accessory Assy, Air Conditioner, NO.4
2024-07 → —
BEJG10 —
88710-03050 Tube & Accessory Assy, Air Conditioner, NO.4
2023-01 → —
BEAM10 —
88G10A — Tube & Accessory Assy, Air Conditioner, NO.5
88710-03120 Tube & Accessory Assy, Air Conditioner, NO.5
2024-07 → —
BEJG10 —
88710-03060 Tube & Accessory Assy, Air Conditioner, NO.5
2023-01 → —
BEAM10 —
88G10H — Tube & Accessory Assy, Air Conditioner, NO.6
88710-03130 Tube & Accessory Assy, Air Conditioner, NO.6
2024-07 → —
BEJG10 —
88710-03070 Tube & Accessory Assy, Air Conditioner, NO.6
2023-01 → —
BEAM10 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
