Toyota BZ3

2023-01 → present · chassis BEAM10,BEJG10 · catalogue 182310 · General

Supported model Data version 2024-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

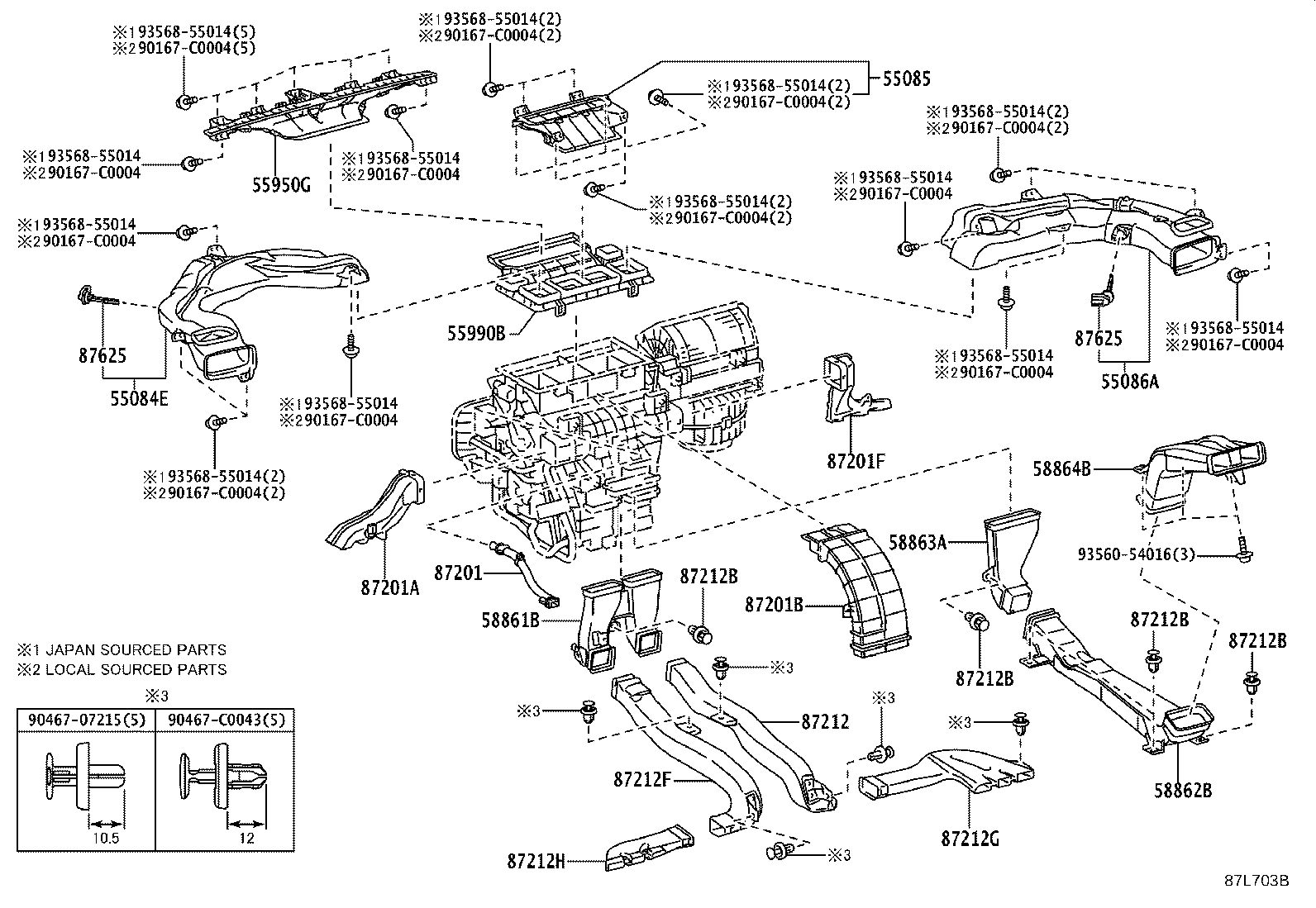

Exploded illustration 87L703B 55084E — DUCT SUB-ASSY, HEATER TO REGISTER, NO.1 (2 parts) 55085 — DUCT SUB-ASSY, HEATER TO REGISTER, NO.2 (2 parts) 55086A — DUCT SUB-ASSY, HEATER TO REGISTER, CENTER (2 parts) 55950G — NOZZLE ASSY, DEFROSTER (2 parts) 55990B — NOZZLE ASSY, DEFROSTER, LOWER (2 parts) 58861B — DUCT, CONSOLE BOX, NO.1 (3 parts) 58862B — DUCT, CONSOLE BOX, NO.2 (3 parts) 58863A — DUCT, CONSOLE BOX, NO.3 (3 parts) 87201B — DUCT SUB-ASSY, AIR, NO.2 (2 parts) 58864B — DUCT, CONSOLE BOX, NO.4 (2 parts) 87201A — DUCT SUB-ASSY, AIR (2 parts) 87212 — DUCT, AIR, REAR NO.1 (3 parts) 87212B — CLIP, AIR DUCT (2 parts) 87212B — CLIP, AIR DUCT (2 parts) 87212B — CLIP, AIR DUCT (2 parts) 87212B — CLIP, AIR DUCT (2 parts) 87212F — DUCT, AIR, REAR NO.2 (3 parts) 87212G — DUCT, AIR, REAR NO.3 (2 parts) 87212H — DUCT, AIR, REAR NO.4 (2 parts) 87625 — THERMISTOR ASSY (2 parts) 87625 — THERMISTOR ASSY (2 parts) 9356054016 — not listed in this catalogue 90167C0004 — not listed in this catalogue 9356855014 — not listed in this catalogue 90167C0004 — not listed in this catalogue 9356855014 — not listed in this catalogue 90167C0004 — not listed in this catalogue 9356855014 — not listed in this catalogue 90167C0004 — not listed in this catalogue 9356855014 — not listed in this catalogue 90167C0004 — not listed in this catalogue 9356855014 — not listed in this catalogue 90167C0004 — not listed in this catalogue 9356855014 — not listed in this catalogue 90167C0004 — not listed in this catalogue 9356855014 — not listed in this catalogue 90167C0004 — not listed in this catalogue 9356855014 — not listed in this catalogue 90167C0004 — not listed in this catalogue 9356855014 — not listed in this catalogue 90167C0004 — not listed in this catalogue 9356855014 — not listed in this catalogue 90167C0004 — not listed in this catalogue 9356855014 — not listed in this catalogue 90167C0004 — not listed in this catalogue 9356855014 — not listed in this catalogue 90167C0004 — not listed in this catalogue 9356855014 — not listed in this catalogue 9046707215 — not listed in this catalogue 90467C0043 — not listed in this catalogue 87201 — DUCT SUB-ASSY, AIR, NO.1 (2 parts) 87201F — DUCT SUB-ASSY, AIR, NO.3 (2 parts)
87L703B · 23 callouts, 29 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
43 parts on this figure
Part number Description Fitment Price
55084E — Duct Sub-assy, Heater TO Register, NO.1
55084-03020 Duct Sub-assy, Heater TO Register, NO.1
2024-07 → —
BEJG10 —
55084-03020 Duct Sub-assy, Heater TO Register, NO.1
2023-01 → —
BEAM10 —
55085 — Duct Sub-assy, Heater TO Register, NO.2
55085-03030 Duct Sub-assy, Heater TO Register, NO.2
2024-07 → —
BEJG10 —
55085-03030 Duct Sub-assy, Heater TO Register, NO.2
2023-01 → —
BEAM10 —
55086A — Duct Sub-assy, Heater TO Register, Center
55086-03020 Duct Sub-assy, Heater TO Register, Center
2024-07 → —
BEJG10 —
55086-03020 Duct Sub-assy, Heater TO Register, Center
2023-01 → —
BEAM10 —
55950G — Nozzle Assy, Defroster
55950-03020 Nozzle Assy, Defroster
2024-07 → —
BEJG10 —
55950-03020 Nozzle Assy, Defroster
2023-01 → —
BEAM10 —
55990B — Nozzle Assy, Defroster, Lower
55990-03010 Nozzle Assy, Defroster, Lower
2024-07 → —
BEJG10 —
55990-03010 Nozzle Assy, Defroster, Lower
2023-01 → —
BEAM10 —
58861B — Duct, Console Box, NO.1
58861-03011 Duct, Console Box, NO.1
2024-07 → —
BEJG10 —
58861-03010 Duct, Console Box, NO.1
2023-01 → 2023-11 ended
BEAM10 —
58861-03011 Duct, Console Box, NO.1
2023-11 → —
BEAM10 —
58862B — Duct, Console Box, NO.2
58862-03011 Duct, Console Box, NO.2
2024-07 → —
BEJG10 —
58862-03010 Duct, Console Box, NO.2
2023-01 → 2023-11 ended
BEAM10 —
58862-03011 Duct, Console Box, NO.2
2023-11 → —
BEAM10 —
58863A — Duct, Console Box, NO.3
58863-03011 Duct, Console Box, NO.3
2024-07 → —
BEJG10 —
58863-03010 Duct, Console Box, NO.3
2023-01 → 2023-11 ended
BEAM10 —
58863-03011 Duct, Console Box, NO.3
2023-11 → —
BEAM10 —
58864B — Duct, Console Box, NO.4
58864-03010 Duct, Console Box, NO.4
2024-07 → —
BEJG10 —
58864-03010 Duct, Console Box, NO.4
2023-01 → —
BEAM10 —
87201 — Duct Sub-assy, Air, NO.1
87201-03060 Duct Sub-assy, Air, NO.1
2024-07 → —
BEJG10 —
87201-03060 Duct Sub-assy, Air, NO.1
2023-01 → —
BEAM10 —
87201A — Duct Sub-assy, Air
87201-03040 Duct Sub-assy, Air
2024-07 → —
BEJG10 —
87201-03040 Duct Sub-assy, Air
2023-01 → —
BEAM10 —
87201B — Duct Sub-assy, Air, NO.2
87201-03070 Duct Sub-assy, Air, NO.2
2024-07 → —
BEJG10 —
87201-03070 Duct Sub-assy, Air, NO.2
2023-01 → —
BEAM10 —
87201F — Duct Sub-assy, Air, NO.3
87201-03050 Duct Sub-assy, Air, NO.3
2024-07 → —
BEJG10 —
87201-03050 Duct Sub-assy, Air, NO.3
2023-01 → —
BEAM10 —
87212 — Duct, Air, Rear NO.1
87212-03021 Duct, Air, Rear NO.1
2024-07 → —
BEJG10 —
87212-03020 Duct, Air, Rear NO.1
2023-01 → 2023-11 ended
BEAM10 —
87212-03021 Duct, Air, Rear NO.1
2023-11 → —
BEAM10 —
87212B — Clip, Air Duct
90467-07215 Clip, Air Duct
2024-07 → —
BEJG10 —
90467-07215 Clip, Air Duct
2023-01 → —
BEAM10 —
87212F — Duct, Air, Rear NO.2
87213-03021 Duct, Air, Rear NO.2
2024-07 → —
BEJG10 —
87213-03020 Duct, Air, Rear NO.2
2023-01 → 2023-11 ended
BEAM10 —
87213-03021 Duct, Air, Rear NO.2
2023-11 → —
BEAM10 —
87212G — Duct, Air, Rear NO.3
87215-03010 Duct, Air, Rear NO.3
2024-07 → —
BEJG10 —
87215-03010 Duct, Air, Rear NO.3
2023-01 → —
BEAM10 —
87212H — Duct, Air, Rear NO.4
87216-03010 Duct, Air, Rear NO.4
2024-07 → —
BEJG10 —
87216-03010 Duct, Air, Rear NO.4
2023-01 → —
BEAM10 —
87625 — Thermistor Assy
88790-03020 Thermistor Assy
2024-07 → —
BEJG10 —
88790-03020 Thermistor Assy
2023-01 → —
BEAM10 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
