Toyota BZ3
2023-01 → present · chassis BEAM10,BEJG10 · catalogue 182310 · General
Supported model
Data version 2024-06

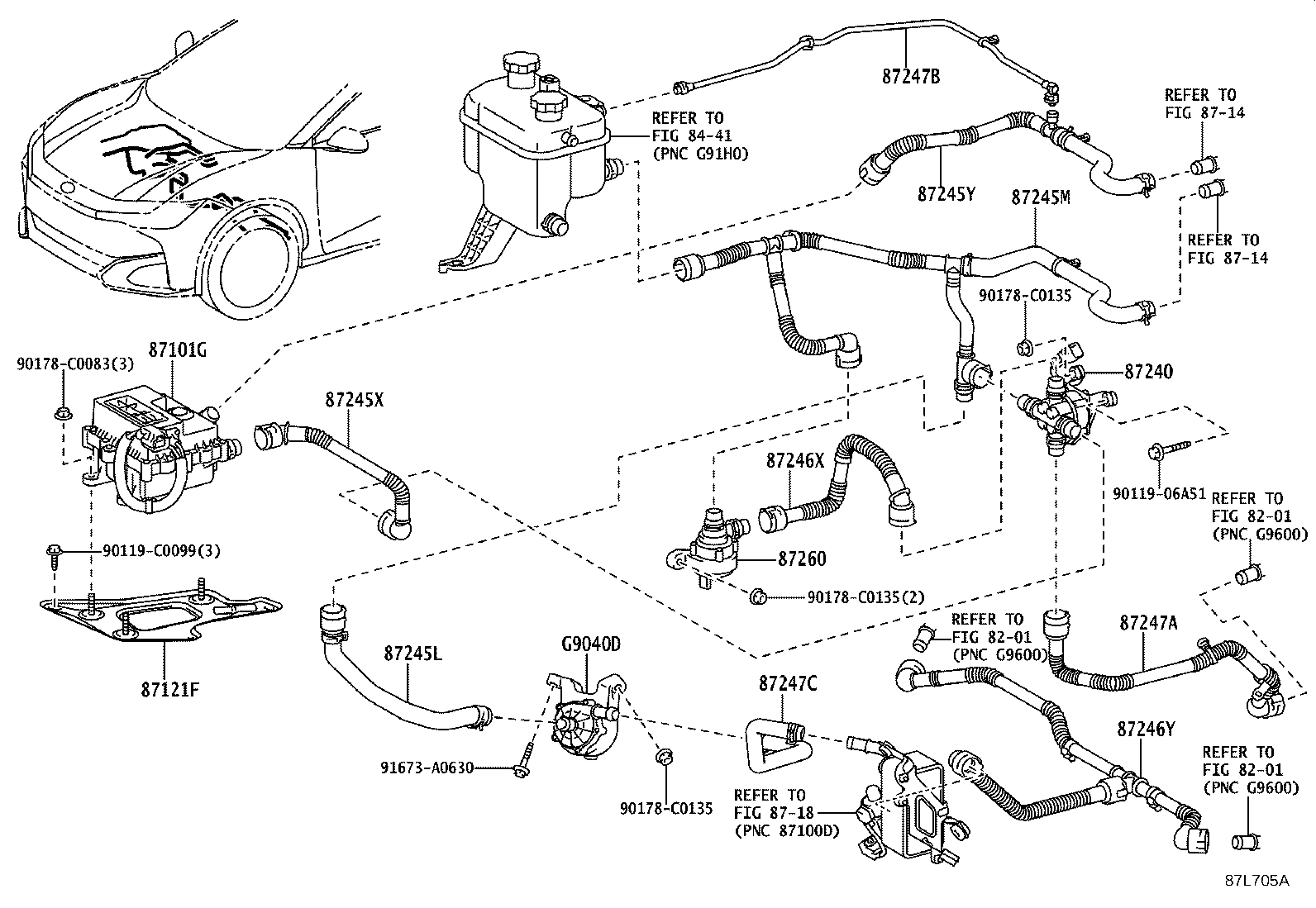

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 87101G — Heater Sub-assy, Electric | ||||
| 87101-03030 |
Heater Sub-assy, Electric
2024-07 → —
|
BEJG10 M | — | |
| 87101-03040 |
Heater Sub-assy, Electric
2024-07 → —
|
BEJG10 H,J,N | — | |
| 87101-03010 |
Heater Sub-assy, Electric
2023-01 → —
|
BEAM10 M | — | |
| 87101-03020 |
Heater Sub-assy, Electric
2023-01 → —
|
BEAM10 J,N | — | |
| 87121F — Bracket, Heater | ||||
| 87121-03010 |
Bracket, Heater
2024-07 → —
|
BEJG10 | — | |
| 87121-03010 |
Bracket, Heater
2023-01 → —
|
BEAM10 | — | |
| 87240 — Valve Assy, Heater Water | ||||
| 87240-03020 |
Valve Assy, Heater Water
2024-07 → —
|
BEJG10 | — | |
| 87240-03020 |
Valve Assy, Heater Water
2023-01 → —
|
BEAM10 | — | |
| 87245L — Hose, Heater Water, L | ||||
| 87245-03140 |
Hose, Heater Water, L
2024-07 → —
|
BEJG10 | — | |
| 87245-03140 |
Hose, Heater Water, L
2023-01 → —
|
BEAM10 | — | |
| 87245M — Hose, Heater Water, M | ||||
| 87245-03070 |
Hose, Heater Water, M
2024-07 → —
|
BEJG10 | — | |
| 87245-03070 |
Hose, Heater Water, M
2023-01 → —
|
BEAM10 | — | |
| 87245X — Hose, Heater Water | ||||
| 87245-03090 |
Hose, Heater Water
2024-07 → —
|
BEJG10 | — | |
| 87245-03090 |
Hose, Heater Water
2023-01 → —
|
BEAM10 | — | |
| 87245Y — Hose, Heater Water | ||||
| 87245-03100 |
Hose, Heater Water
2024-07 → —
|
BEJG10 | — | |
| 87245-03100 |
Hose, Heater Water
2023-01 → —
|
BEAM10 | — | |
| 87246X — Hose, Heater Water | ||||
| 87245-03160 |
Hose, Heater Water
2024-07 → —
|
BEJG10 | — | |
| 87245-03160 |
Hose, Heater Water
2023-01 → —
|
BEAM10 | — | |
| 87246Y — Hose, Heater Water | ||||
| 87245-03120 |
Hose, Heater Water
2024-07 → —
|
BEJG10 | — | |
| 87245-03120 |
Hose, Heater Water
2023-01 → —
|
BEAM10 | — | |
| 87247A — Hose, Heater Water, A | ||||
| 87245-03080 |
Hose, Heater Water, A
2024-07 → —
|
BEJG10 | — | |
| 87245-03080 |
Hose, Heater Water, A
2023-01 → —
|
BEAM10 | — | |
| 87247B — Hose, Heater Water, B | ||||
| 87245-03170 |
Hose, Heater Water, B
2024-07 → —
|
BEJG10 | — | |
| 87245-03170 |
Hose, Heater Water, B
2023-01 → —
|
BEAM10 | — | |
| 87247C — Hose, Heater Water, C | ||||
| 87245-03110 |
Hose, Heater Water, C
2024-07 → —
|
BEJG10 | — | |
| 87245-03110 |
Hose, Heater Water, C
2023-01 → —
|
BEAM10 | — | |
| 87260 — Pump Assy, Heater | ||||
| 87260-03010 |
Pump Assy, Heater
2024-07 → —
|
BEJG10 | — | |
| 87260-03010 |
Pump Assy, Heater
2023-01 → —
|
BEAM10 | — | |
| G9040D — Pump Assy, Water W/Motor | ||||
| G9040-03020 |
Pump Assy, Water W/Motor
2024-07 → —
|
BEJG10 | — | |
| G9040-03020 |
Pump Assy, Water W/Motor
2023-01 → —
|
BEAM10 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
