Toyota BZ3
2023-01 → present · chassis BEAM10,BEJG10 · catalogue 182310 · General
Supported model
Data version 2024-06

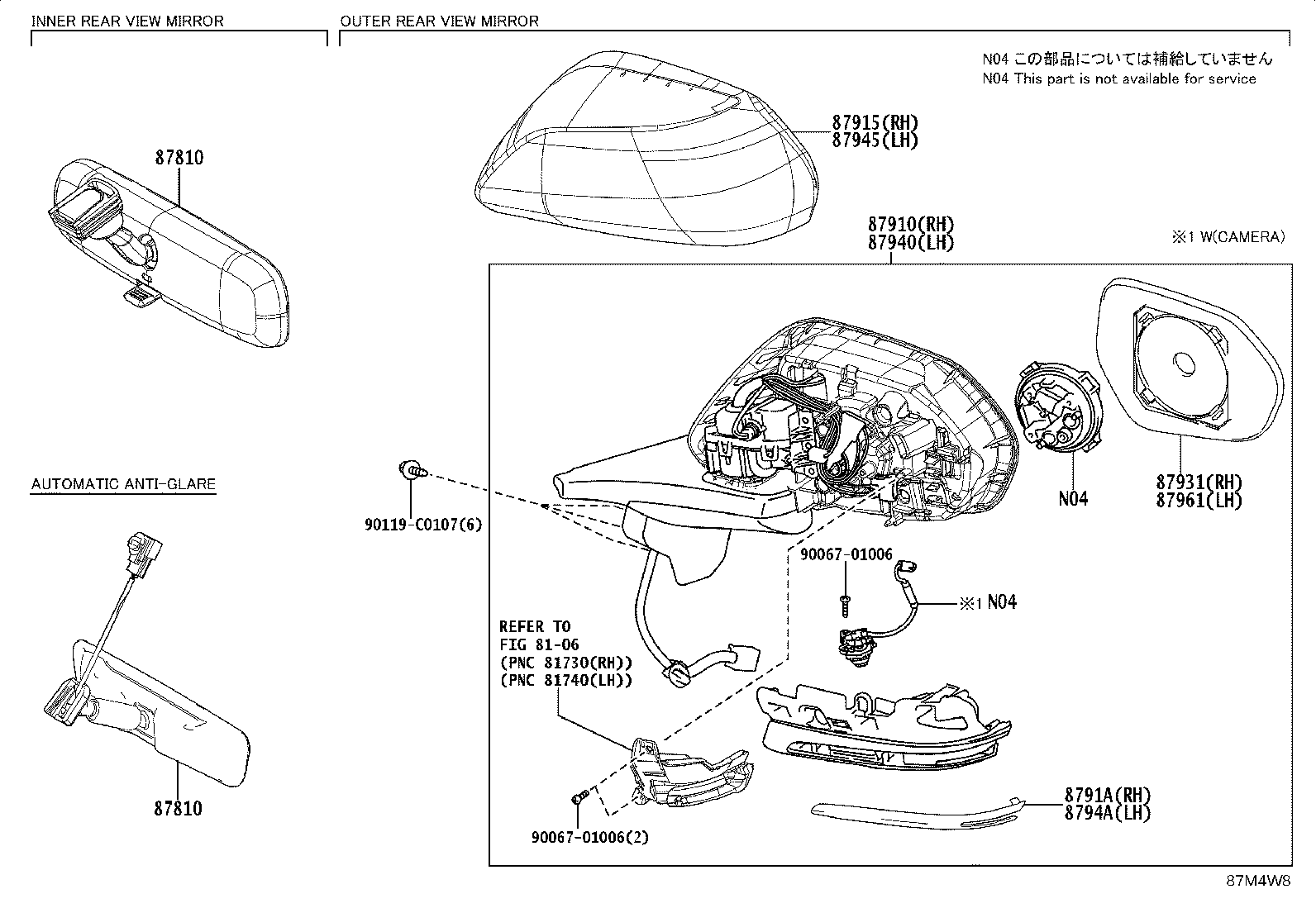

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 87810 — Mirror Assy, Inner Rear View | ||||
| 87810-07180 |
Mirror Assy, Inner Rear View
2024-07 → —
|
BEJG10 M,N | — | |
| 87810-08170 |
Mirror Assy, Inner Rear View
2024-07 → —
|
BEJG10 H,J | — | |
| 87810-08170 note |
Mirror Assy, Inner Rear View
2024-07 → —
|
BEJG10 M,N | — | |
| 87810-07180 |
Mirror Assy, Inner Rear View
2023-01 → —
|
BEAM10 M,N | — | |
| 87810-0R230 |
Mirror Assy, Inner Rear View
2023-01 → —
|
BEAM10 J | — | |
| 87810-0R230 note |
Mirror Assy, Inner Rear View
2023-01 → —
|
BEAM10 M,N | — | |
| 87910 — Mirror Assy, Outer Rear View, RH | ||||
| 87910-03031 note |
Mirror Assy, Outer Rear View, RH
2024-07 → —
|
BEJG10 M | — | |
| 87910-03031 note |
Mirror Assy, Outer Rear View, RH
2024-07 → —
|
BEJG10 M | — | |
| 87910-03040 note |
Mirror Assy, Outer Rear View, RH
2024-07 → —
|
BEJG10 M,N | — | |
| 87910-03180 note |
Mirror Assy, Outer Rear View, RH
2024-07 → —
|
BEJG10 H | — | |
| 87910-03190 note |
Mirror Assy, Outer Rear View, RH
2024-07 → —
|
BEJG10 J | — | |
| 87910-03190 note |
Mirror Assy, Outer Rear View, RH
2024-07 → —
|
BEJG10 M,N | — | |
| 87910-03030 note |
Mirror Assy, Outer Rear View, RH
2023-01 → —
|
BEAM10 M | — | |
| 87910-03030 note |
Mirror Assy, Outer Rear View, RH
2024-04 → —
|
BEAM10 M | — | |
| 87910-03040 note |
Mirror Assy, Outer Rear View, RH
2023-01 → —
|
BEAM10 M,N | — | |
| 87910-03050 note |
Mirror Assy, Outer Rear View, RH
2023-01 → —
|
BEAM10 J | — | |
| 87910-03050 note |
Mirror Assy, Outer Rear View, RH
2023-01 → —
|
BEAM10 M,N | — | |
| 87915 — Cover, Outer Mirror, RH | ||||
| 87915-03900 note |
Cover, Outer Mirror, RH
2024-07 → —
|
BEJG10 H,J | — | |
| 87915-03900 note |
Cover, Outer Mirror, RH
2024-07 → —
|
BEJG10 M,N | — | |
| 87915-06914 note |
Cover, Outer Mirror, RH
2024-07 → —
|
BEJG10 M,N | — | |
| 87915-06914 note |
Cover, Outer Mirror, RH
2023-01 → —
|
BEAM10 | — | |
| 8791A — Cover, Outer Mirror, RH NO.2 | ||||
| 8791A-03120 |
Cover, Outer Mirror, RH NO.2
2024-07 → —
|
BEJG10 H,J | — | |
| 8791A-03120 note |
Cover, Outer Mirror, RH NO.2
2024-07 → —
|
BEJG10 M,N | — | |
| 8791A-06890 note |
Cover, Outer Mirror, RH NO.2
2024-07 → —
|
BEJG10 M,N | — | |
| 8791A-06890 |
Cover, Outer Mirror, RH NO.2
2023-01 → —
|
BEAM10 | — | |
| 87931 — Outer Mirror, RH | ||||
| 87902-02170 note |
Outer Mirror, RH
2024-07 → —
|
BEJG10 M | — | |
| 87902-02170 note |
Outer Mirror, RH
2024-07 → —
|
BEJG10 M | — | |
| 87902-03020 |
Outer Mirror, RH
2024-07 → —
|
BEJG10 H,J | — | |
| 87902-03020 note |
Outer Mirror, RH
2024-07 → —
|
BEJG10 M,N | — | |
| 87902-07130 |
Outer Mirror, RH
2024-07 → —
|
BEJG10 M,N | — | |
| 87902-02170 note |
Outer Mirror, RH
2023-01 → —
|
BEAM10 M | — | |
| 87902-02170 note |
Outer Mirror, RH
2024-04 → —
|
BEAM10 M | — | |
| 87902-07120 note |
Outer Mirror, RH
2023-01 → —
|
BEAM10 M,N | — | |
| 87902-07120 |
Outer Mirror, RH
2023-01 → —
|
BEAM10 J | — | |
| 87902-07130 |
Outer Mirror, RH
2023-01 → —
|
BEAM10 M,N | — | |
| 87940 — Mirror Assy, Outer Rear View, LH | ||||
| 87940-03041 note |
Mirror Assy, Outer Rear View, LH
2024-07 → —
|
BEJG10 M | — | |
| 87940-03041 note |
Mirror Assy, Outer Rear View, LH
2024-07 → —
|
BEJG10 M | — | |
| 87940-03050 note |
Mirror Assy, Outer Rear View, LH
2024-07 → —
|
BEJG10 M,N | — | |
| 87940-03150 note |
Mirror Assy, Outer Rear View, LH
2024-07 → —
|
BEJG10 H | — | |
| 87940-03160 note |
Mirror Assy, Outer Rear View, LH
2024-07 → —
|
BEJG10 J | — | |
| 87940-03160 note |
Mirror Assy, Outer Rear View, LH
2024-07 → —
|
BEJG10 M,N | — | |
| 87940-03040 note |
Mirror Assy, Outer Rear View, LH
2023-01 → —
|
BEAM10 M | — | |
| 87940-03040 note |
Mirror Assy, Outer Rear View, LH
2024-04 → —
|
BEAM10 M | — | |
| 87940-03050 note |
Mirror Assy, Outer Rear View, LH
2023-01 → —
|
BEAM10 M,N | — | |
| 87940-03060 note |
Mirror Assy, Outer Rear View, LH
2023-01 → —
|
BEAM10 J | — | |
| 87940-03060 note |
Mirror Assy, Outer Rear View, LH
2023-01 → —
|
BEAM10 M,N | — | |
| 87945 — Cover, Outer Mirror, LH | ||||
| 87945-03900 note |
Cover, Outer Mirror, LH
2024-07 → —
|
BEJG10 H,J | — | |
| 87945-03900 note |
Cover, Outer Mirror, LH
2024-07 → —
|
BEJG10 M,N | — | |
| 87945-06914 note |
Cover, Outer Mirror, LH
2024-07 → —
|
BEJG10 M,N | — | |
| 87945-06914 note |
Cover, Outer Mirror, LH
2023-01 → —
|
BEAM10 | — | |
| 8794A — Cover, Outer Mirror, LH NO.2 | ||||
| 8794A-03100 |
Cover, Outer Mirror, LH NO.2
2024-07 → —
|
BEJG10 H,J | — | |
| 8794A-03100 note |
Cover, Outer Mirror, LH NO.2
2024-07 → —
|
BEJG10 M,N | — | |
| 8794A-06890 note |
Cover, Outer Mirror, LH NO.2
2024-07 → —
|
BEJG10 M,N | — | |
| 8794A-06890 |
Cover, Outer Mirror, LH NO.2
2023-01 → —
|
BEAM10 | — | |
| 87961 — Mirror Outer, LH | ||||
| 87907-02160 note |
Mirror Outer, LH
2024-07 → —
|
BEJG10 M | — | |
| 87907-02160 note |
Mirror Outer, LH
2024-07 → —
|
BEJG10 M | — | |
| 87907-02190 |
Mirror Outer, LH
2024-07 → —
|
BEJG10 M,N | — | |
| 87907-03020 |
Mirror Outer, LH
2024-07 → —
|
BEJG10 H,J | — | |
| 87907-03020 note |
Mirror Outer, LH
2024-07 → —
|
BEJG10 M,N | — | |
| 87907-02160 note |
Mirror Outer, LH
2023-01 → —
|
BEAM10 M | — | |
| 87907-02160 note |
Mirror Outer, LH
2024-04 → —
|
BEAM10 M | — | |
| 87907-02190 |
Mirror Outer, LH
2023-01 → —
|
BEAM10 M,N | — | |
| 87907-03010 |
Mirror Outer, LH
2023-01 → —
|
BEAM10 J | — | |
| 87907-03010 note |
Mirror Outer, LH
2023-01 → —
|
BEAM10 M,N | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
