Toyota BZ3
2023-01 → present · chassis BEAM10,BEJG10 · catalogue 182310 · General
Supported model
Data version 2024-06
Instrument Panel & Glove Compartment
59 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|

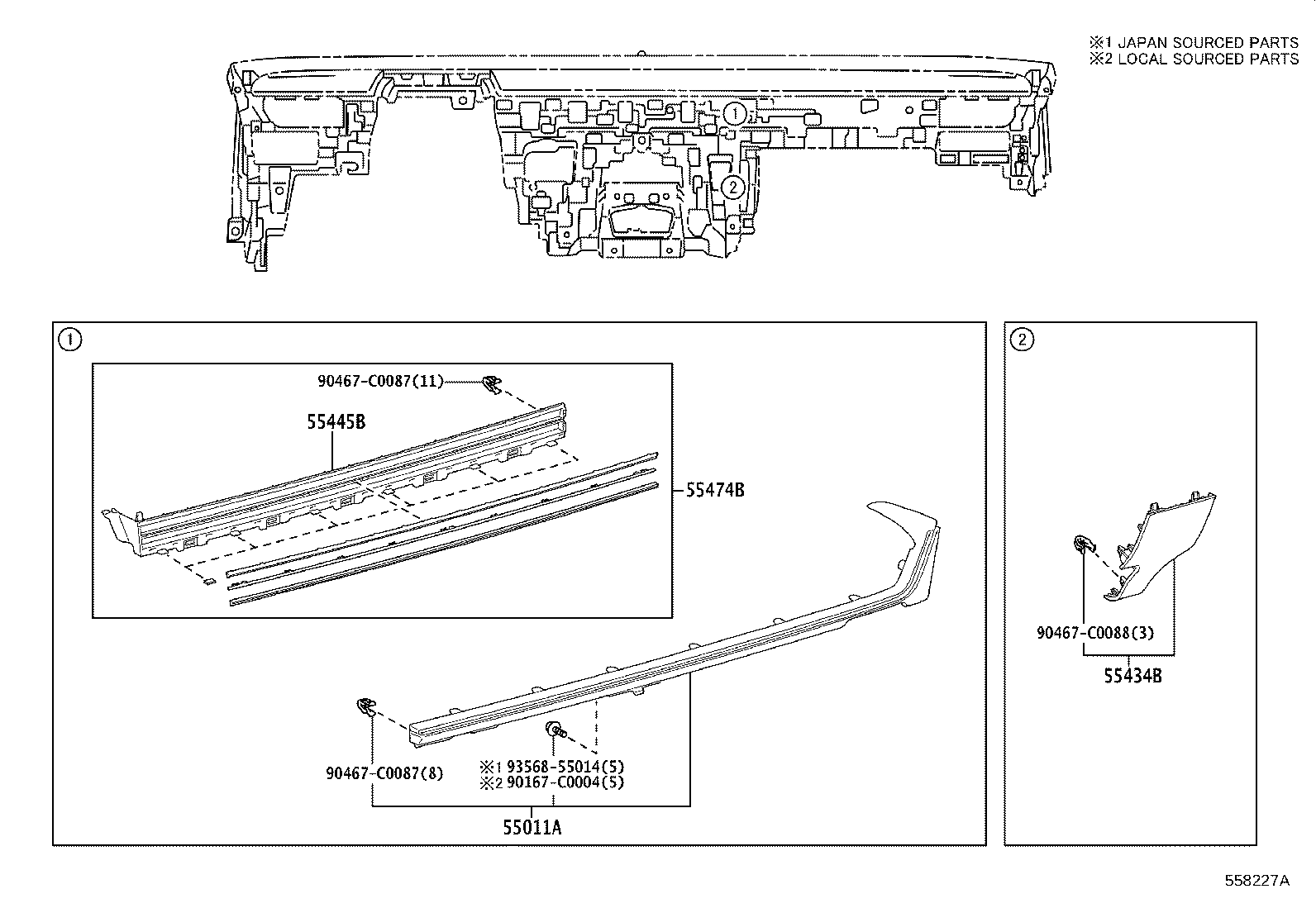

| 55011A | Garnish Sub-assy, Instrument Panel, NO.1 |
| 55012A | Garnish Sub-assy, Instrument Panel, NO.2 |
| 55044C | Panel Sub-assy, Instrument Panel Finish |
| 55054 | Stopper Sub-assy, Glove Compartment Door |
| 55301 | Panel Sub-assy, Instrument |
| 55302C | Panel Sub-assy, Instrument |
| 55306A | Brace Sub-assy, Instrument Panel, NO.1 |
| 55307C | Brace Sub-assy, Instrument Panel, NO.2 |
| 55308B | Brace Sub-assy, Instrument Panel TO Cowl, NO.3 |
| 55312A | Clip, Instrument Panel |
| 55315C | Patch, Instrument Side, Upper RH |
| 55316A | Patch, Instrument Side, Upper LH |
| 55317A | Panel, Instrument Side, RH |
| 55318C | Panel, Instrument Side, LH |
| 55321B | Bracket, Instrument Panel, NO.1 |
| 55328 | Pin, Instrument Panel, NO.1 |
| 55328C | Pin, Instrument Panel, NO.2 |
| 55328D | Pin, Instrument Panel, NO.3 |
| 55330B | Reinforcement Assy, Instrument Panel |
| 55349A | Cushion, Instrument Panel |
| 55362B | Bracket, Meter, Lower |
| 55395 | Bracket, Instrument Panel TO Pedal |
| 55401E | Pad Sub-assy, Instrument Panel Safety |
| 55401F | Clip(FOR SAFETY PAD) |
| 55410C | Panel Assy, Instrument Cluster Finish |
| 55412G | Clip(FOR INSTRUMENT CENTER CLUSTER FINISH PANEL) |
| 55416C | Retainer, Instrument Cluster Finish Panel |
| 55417B | Retainer, Radio Tuner Finish |
| 55418B | Spacer,Meter Hood |
| 55419B | Spacer, Meter Hood, NO.2 |
| 55420A | Panel Assy, Instrument Cluster Finish, Center |
| 55426A | Bracket, Cluster Finish Panel, NO.1 |
| 55428B | Bracket, Instrument Cluster, NO.2 |
| 55429D | Stay, Instrument Cluster Finish Panel |
| 55431A | Panel, Instrument Panel Finish |
| 55432B | Panel, Instrument Panel Finish, Lower |
| 55432D | Panel, Instrument Panel Finish, Lower NO.1 |
| 55434B | Panel, Instrument Panel Finish, Lower Center |
| 55445B | Plate, Instrument Panel Finish |
| 55472C | Panel, Instrument Panel Speaker, NO.1 |
| 55473B | Panel, Instrument Panel Speaker, NO.2 |
| 55474B | Garnish, Instrument Cluster Finish Panel |
| 55544A | Retainer, Instrument Panel Hole Cover |
| 55548A | Cover, Instrument Panel Hole |
| 55550 | Door Assy, Glove Compartment |
| 55551A | Door, Glove Compartment, Outer |
| 55552B | Door, Glove Compartment, Inner |
| 55557A | Cushion, Glove Compartment Door Check |
| 55606 | Cover Sub-assy, Instrument Panel Under, NO.1 |
| 55607 | Cover Sub-assy, Instrument Panel Under, NO.2 |
| 55618C | Holder, Instrument Panel Cup |
| 55619H | Holder, Instrument Panel Cup, NO.2 |
| 55650 | Register Assy, Instrument Panel, NO.1 |
| 55660 | Register Assy, Instrument Panel, NO.2 |
| 55961 | Nozzle, Side Defroster, NO.1 |
| 55962 | Nozzle, Side Defroster, NO.2 |
| 73900 | Airbag Assy, Instrument Panel, Lower NO.1 |
| 73960A | Airbag Assy, Instrument Panel Passenger W/O Door |
| 73990 | Airbag Assy, Instrument Panel, Lower NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
