Toyota BZ3

2023-01 → present · chassis BEAM10,BEJG10 · catalogue 182310 · General

Supported model Data version 2024-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Seat & Seat Track

19 part groups · 3 illustrations

Illustrations

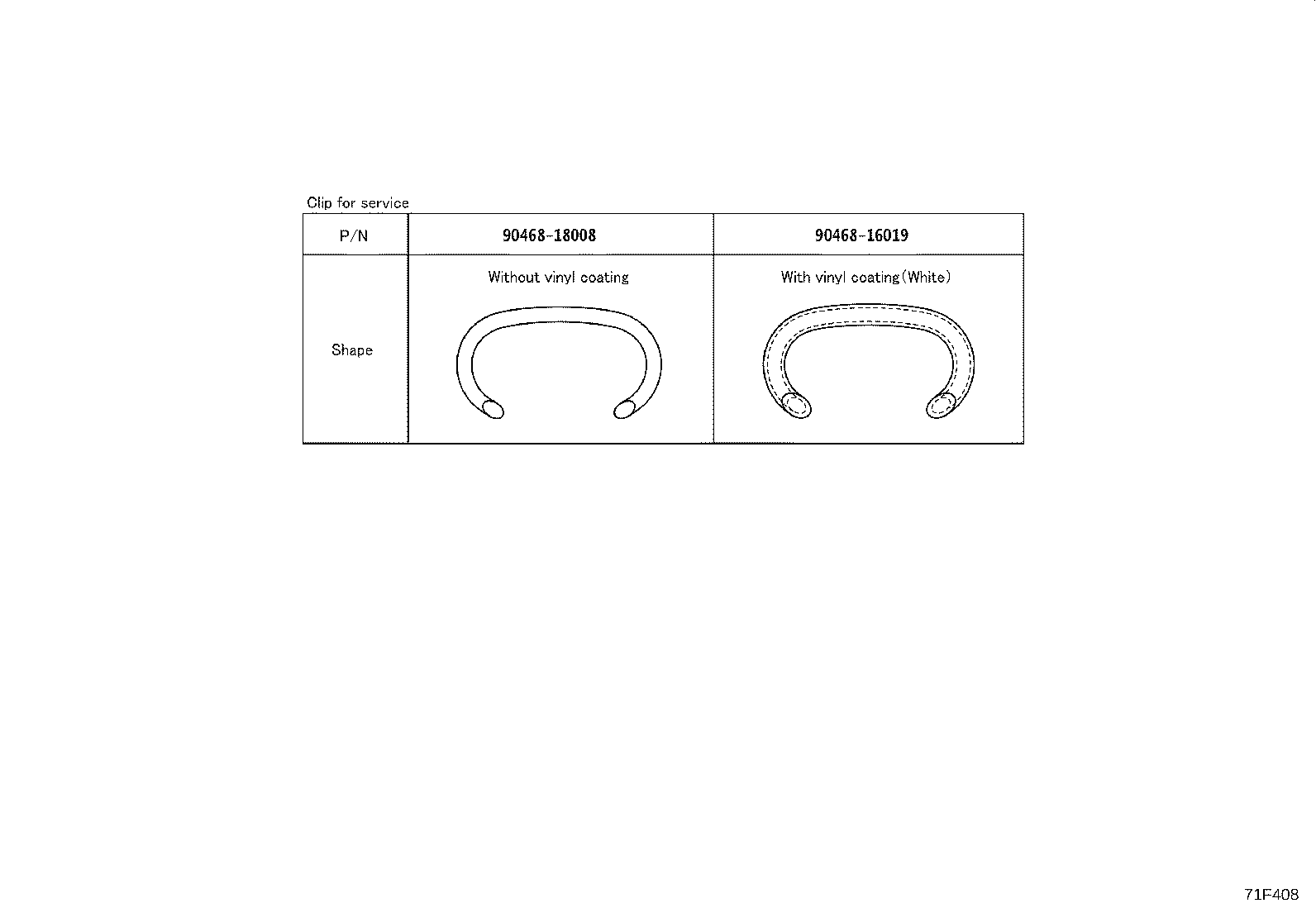

Figure 71F379C 71F379C 2023-01 → — Figure 71F381B 71F381B 2023-01 → — Figure 71F408 71F408 2023-01 → —

Part groups

PNCDescription
71075B Cover, Rear Seat Cushion (FOR BENCH TYPE)
71077B Cover, Rear Seatback (FOR BENCH TYPE)
71281A Hinge, Rear Seat Center Armrest
71398A Holder, Rear Seatback
71460B Cushion Assy, Rear Seat (FOR BENCH TYPE)
71480B Back Assy, Rear Seat (FOR BENCH TYPE)
71503A Pad Sub-assy, Rear Seat Cushion
71507A Pad Sub-assy, Rear Seatback
71891 Bracket, Rear Seatback Set, NO.1
71940A Headrest Assy, Rear Seat
71956B Support, Rear Seat Headrest
72693 Hook, Rear Seat Cushion Lock
72830 Armrest Assy, Rear Seat, Center
72830B Bush(FOR REAR SEAT CENTER ARMREST)
72830T Bush (FOR REAR SEAT CENTER ARMREST)
73707 Bracket Sub-assy, Child Restraint Seat Anchor, Inner
87501D Control Sub-assy, Seat Heater
87510P Heater Assy, Seat
87510Q Heater Assy, Seat
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
