Toyota BZ3

2023-01 → present · chassis BEAM10,BEJG10 · catalogue 182310 · General

Supported model Data version 2024-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Interior Lamp

13 part groups · 5 illustrations

Illustrations

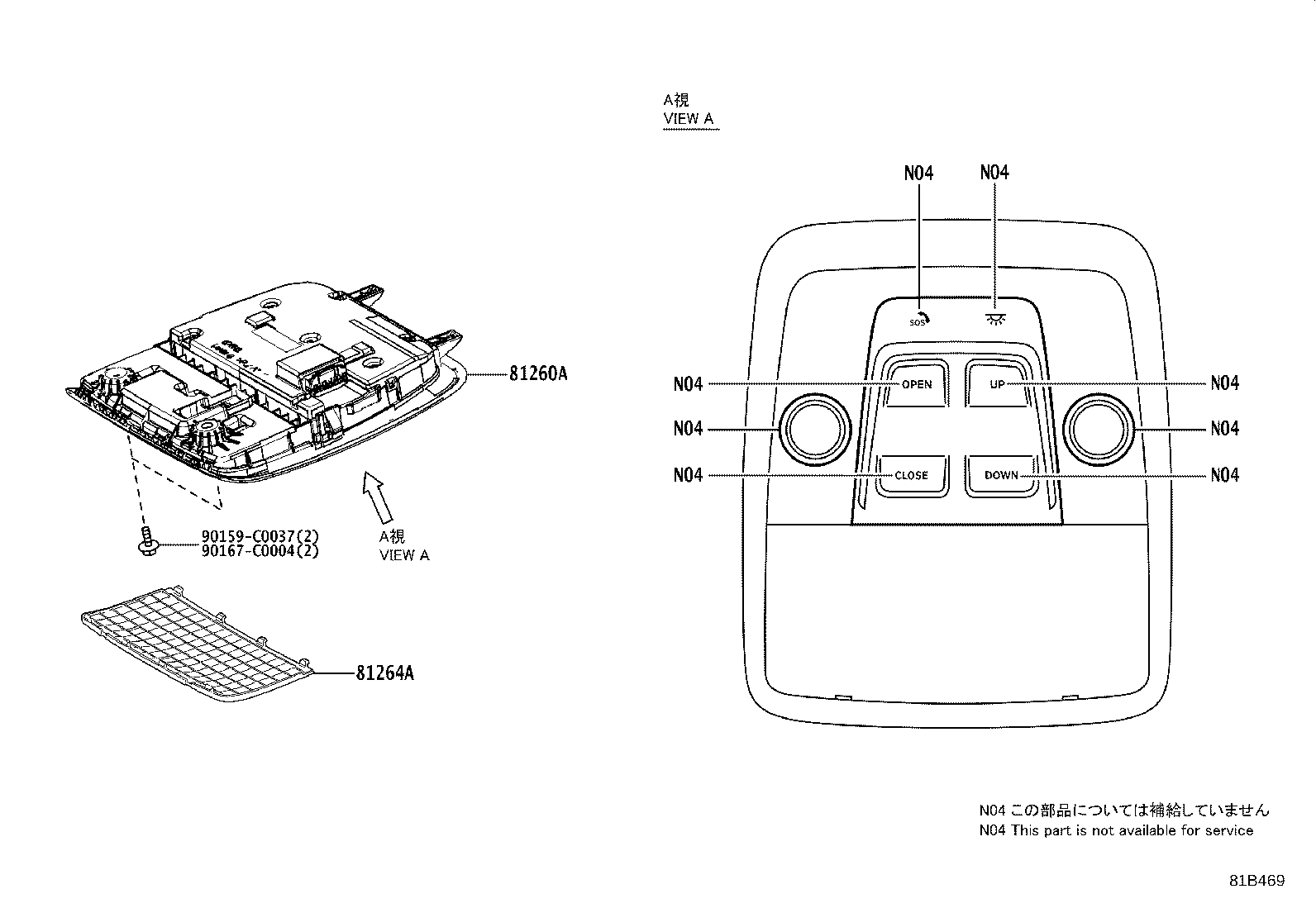

Figure 81B468A 81B468A 2023-01 → 2024-04 Figure 81B8CTC 81B8CTC 2024-04 → — Figure 81B8GUA 81B8GUA 2024-07 → — Figure 81B469 81B469 2023-01 → — Figure 81B469 81B469 2024-07 → —

Part groups

PNCDescription
81080D Lamp Assy, Front Door Inside Handle Illumination, RH
81080E Lamp Assy, Front Door Inside Handle Illumination, LH
81080F Lamp Assy, Rear Door Inside Handle Illumination, RH
81080G Lamp Assy, Rear Door Inside Handle Illumination, LH
81080M Lamp Assy, Interior Illumination, NO.1
81090 Lamp Assy, Interior Illumination, NO.2
81230 Lamp Assy, Courtesy
81230B Bulb(FOR COURTESY LAMP)
81240J Lamp Assy, Room
81260A Lamp Assy, Map
81264A Cover, Map Lamp
81330 Lamp Assy, Luggage Compartment, NO.1
81330B Bulb, Luggage Compartment Lamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
