Toyota BZ3

2023-01 → present · chassis BEAM10,BEJG10 · catalogue 182310 · General

Supported model Data version 2024-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

36 part groups · 7 illustrations

Illustrations

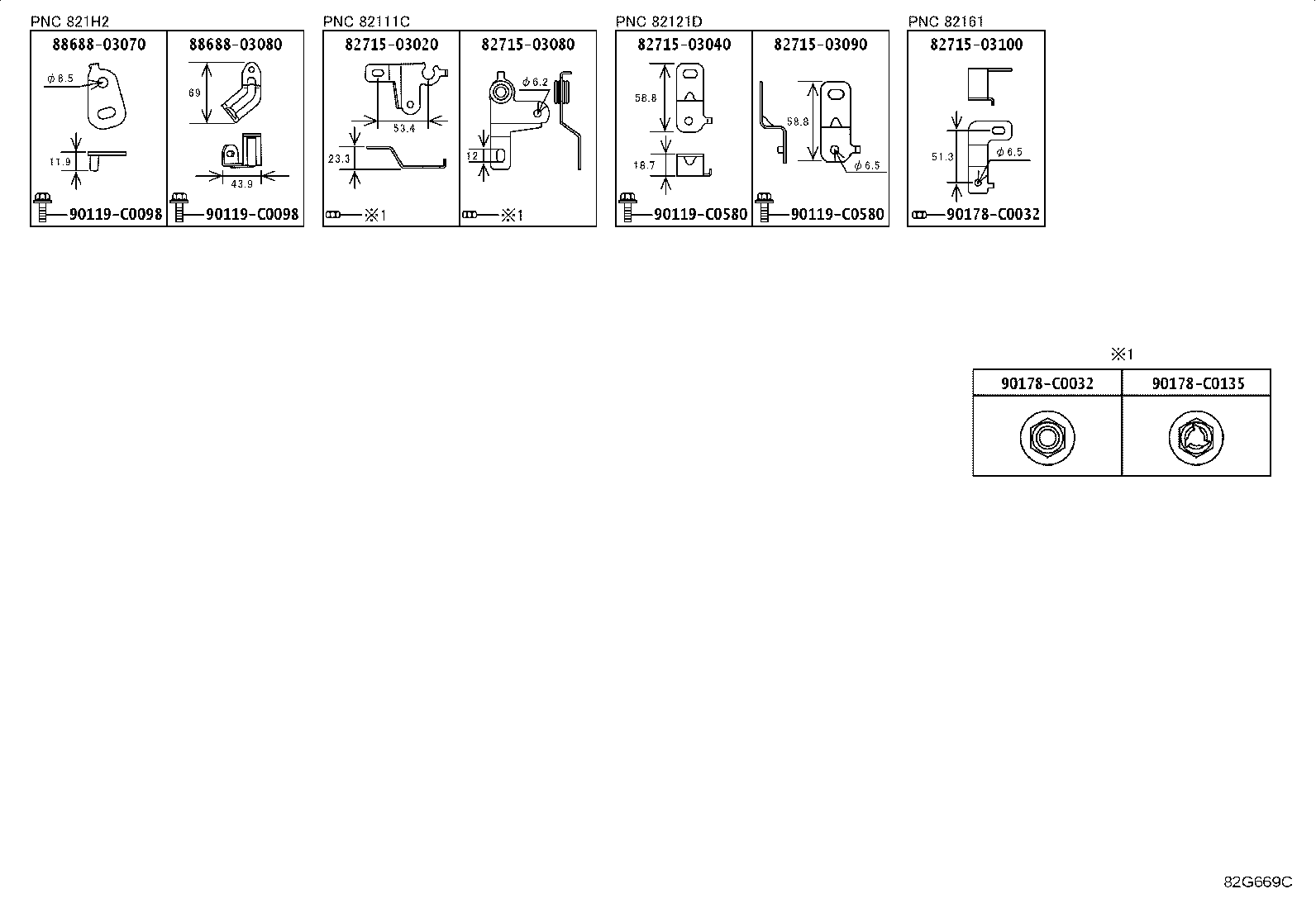

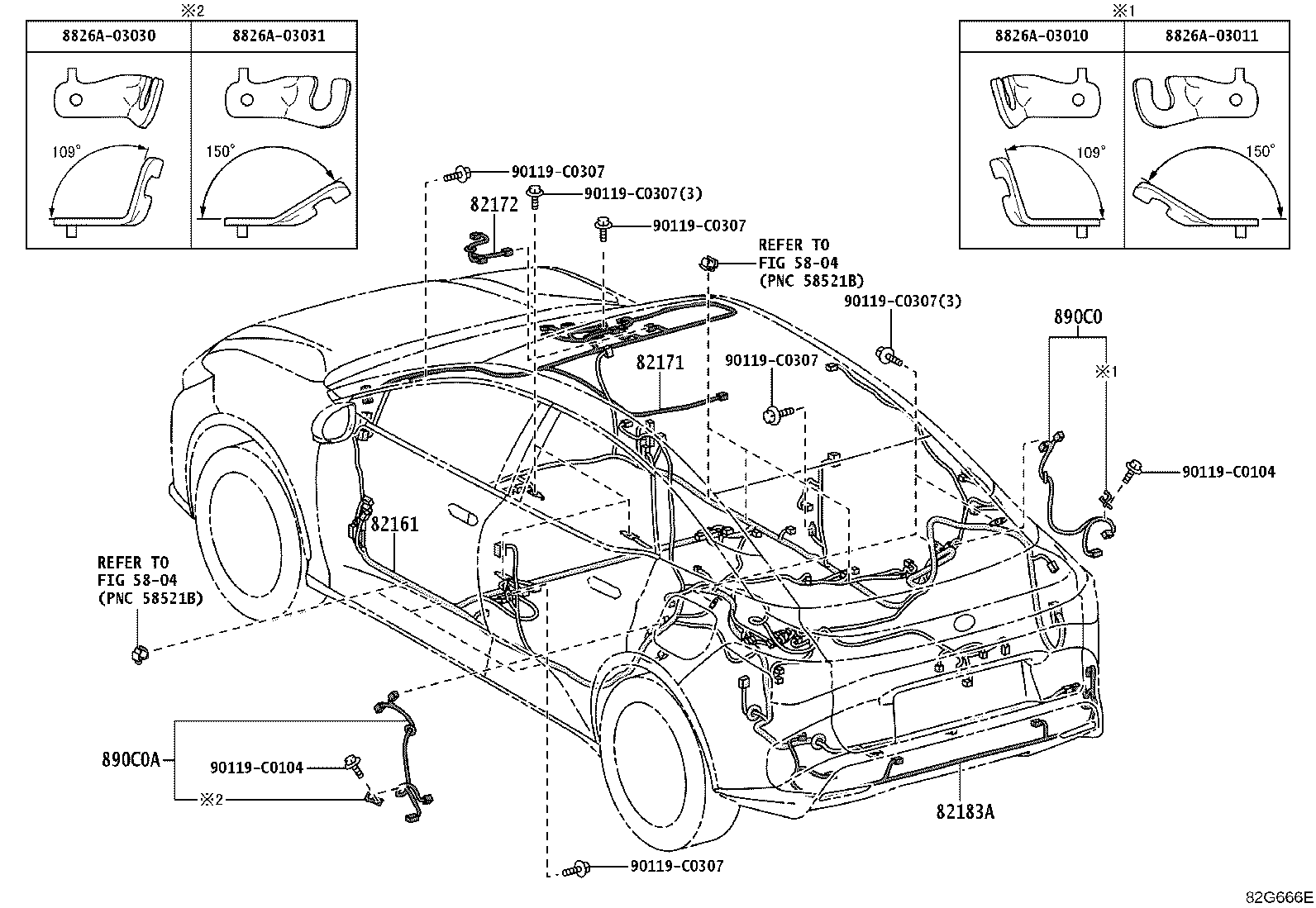

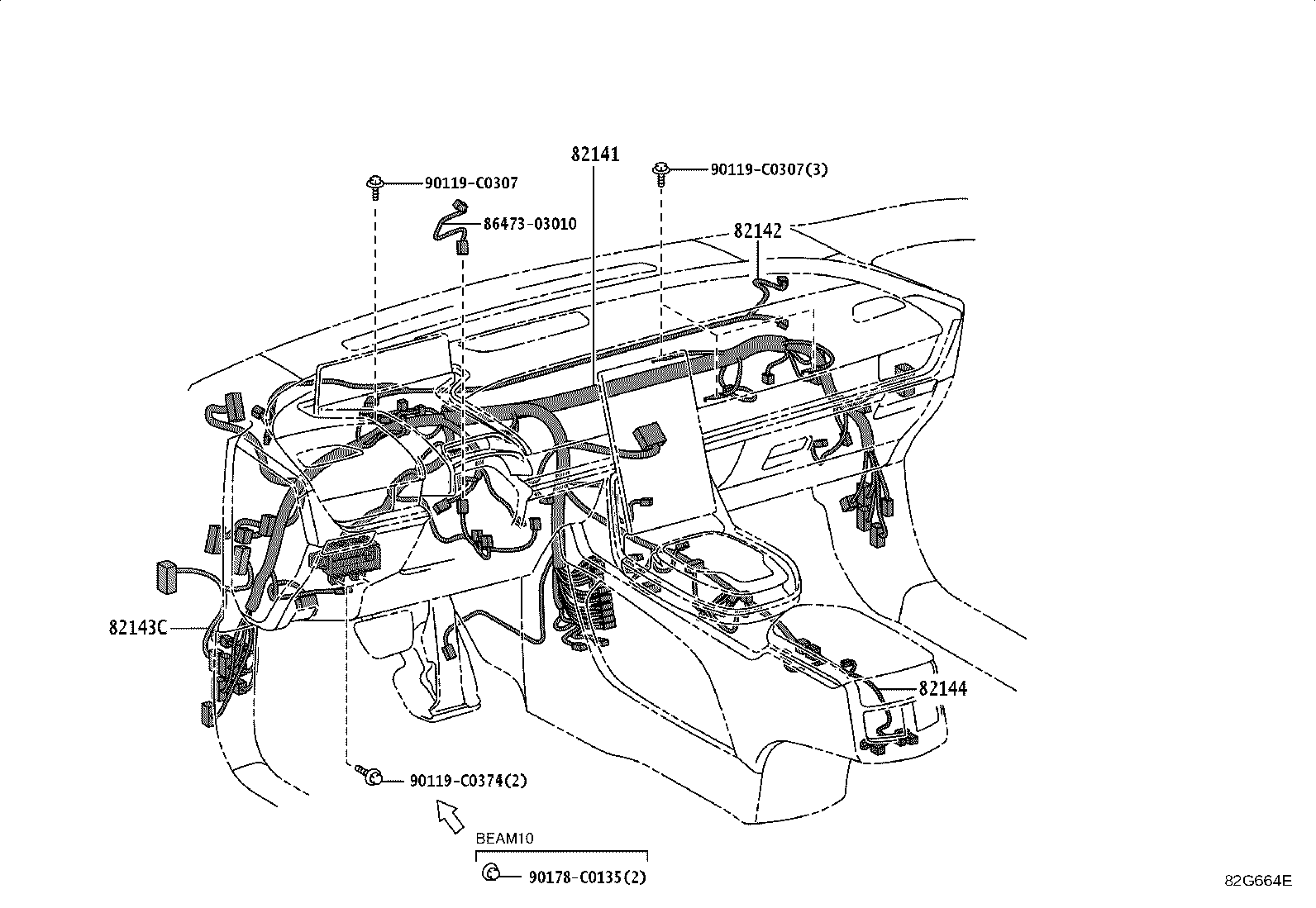

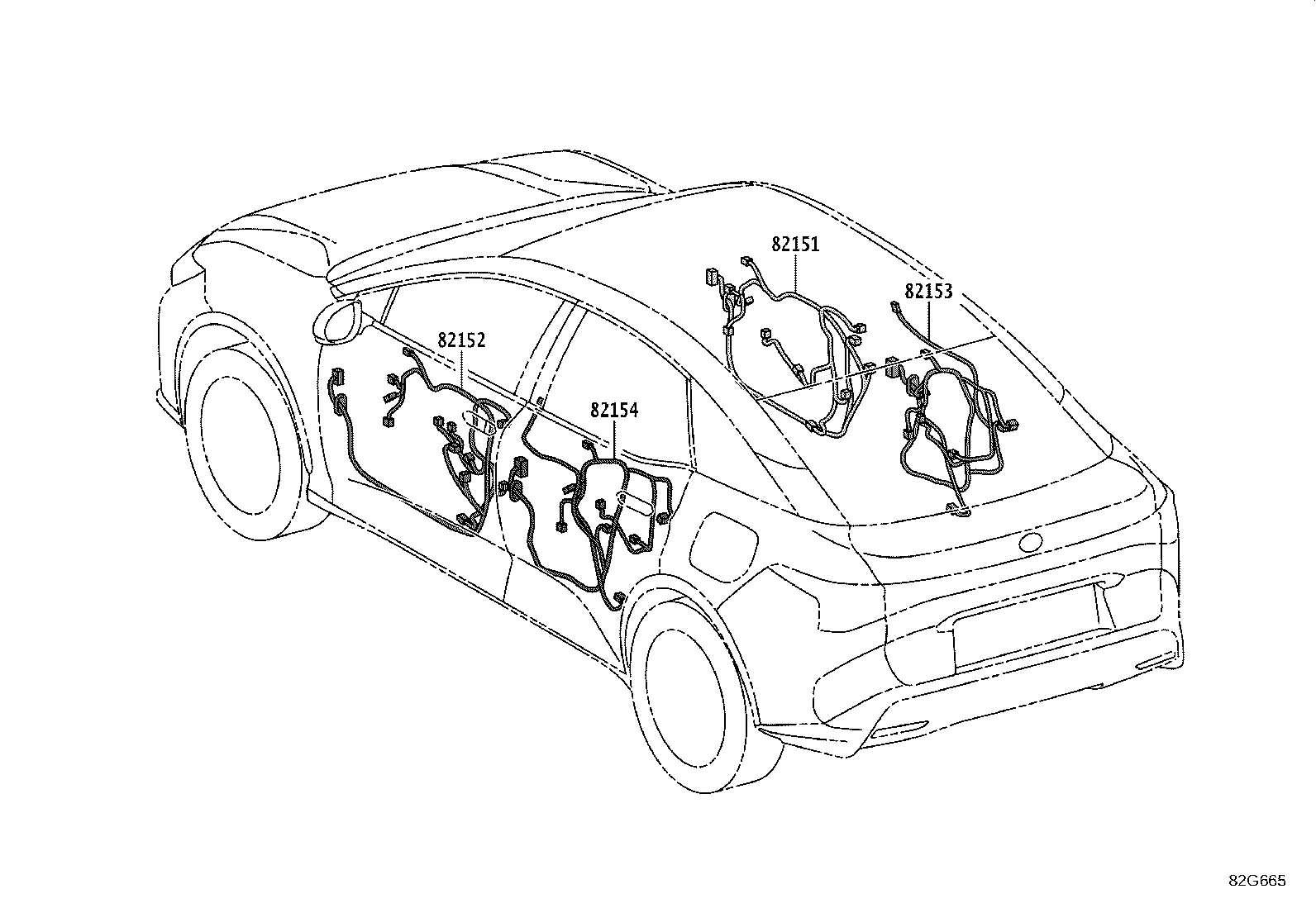

Figure 82G663C 82G663C 2023-01 → — Figure 82G664E 82G664E 2023-01 → — Figure 82G665 82G665 2023-01 → — Figure 82G666E 82G666E 2023-01 → — Figure 82G667D 82G667D 2023-01 → — Figure 82G668 82G668 2023-01 → — Figure 82G669D 82G669D 2023-01 → —

Part groups

PNCDescription
82111C Wire, Front Compartment, Main
82114 Wire, Engine Room, NO.4
82121D Wire, Motor
82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82143C Wire, Instrument Panel, NO.3
82144 Wire, Instrument Panel, NO.4
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82171 Wire, Roof, NO.1
82172 Wire, Roof, NO.2
82183A Wire, Rear Bumper
82191 Wire, Front Seat, RH
82192 Wire, Front Seat, LH
82193 Wire, Rear Seat, RH
82194 Wire, Rear Seat, LH
8219A Wire, Front Seat, RH NO.2
8219B Wire, Front Seat, LH NO.2
821H1 Wire, Floor Under
821H2 Wire, HV Air Conditioner
821H5A Wire, HV Battery Charger
82284 Wire, Earth
82284A Wire, Earth NO.2
82284H Wire, Earth NO.3
82286A Wire, Earth, NO.2
82286D Wire, Earth, NO.5
82287 Wire, Earth, NO.3
82288 Wire, Earth NO.4
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82823 Cap, Terminal, NO.1
890C0 Wire Assy, Parking Brake, NO.1
890C0A Wire Assy, Parking Brake, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
