Toyota BZ3C
2024-12 → present · chassis BEAG11 · catalogue 183210 · General
Supported model
Data version 2024-11

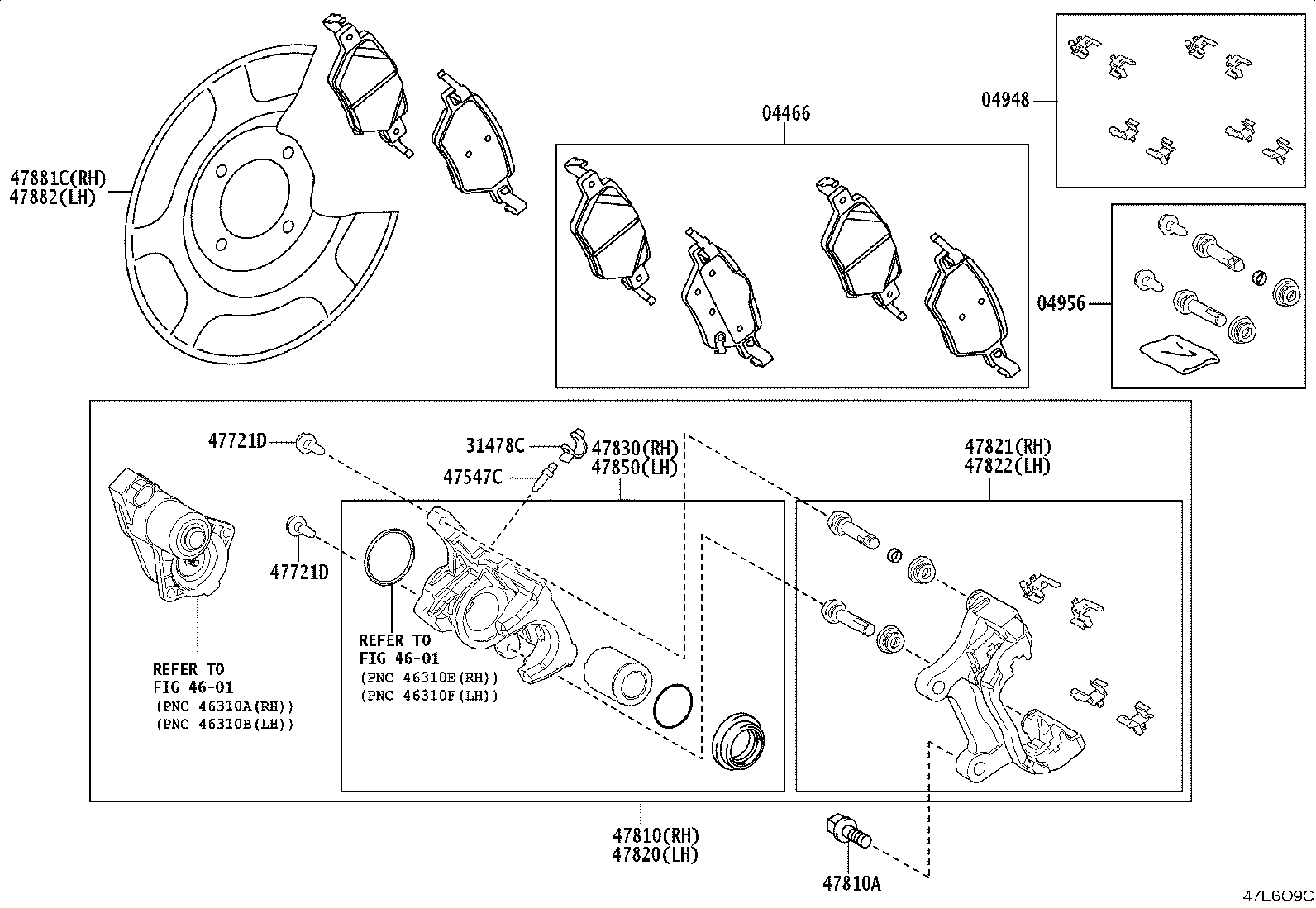

Rear Disc Brake Caliper & Dust Cover
15 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 04466 | Pad Kit, Disc Brake, Rear |
| 04948 | Fitting Kit, Disc Brake, Rear |
| 04956 | Slide Pin Kit, Rear Disc Brake Cylinder |
| 31478C | Cap, Bleeder Plug(FOR REAR DISC BRAKE) |
| 47547C | Plug, Bleeder(FOR REAR DISC BRAKE) |
| 47721D | Bolt(FOR REAR DISC BRAKE CYLINDER MOUTING) |
| 47810 | Caliper Assy, Disc Brake, Rear RH |
| 47810A | Bolt, Hexagon(FOR REAR CALIPER) |
| 47820 | Caliper Assy, Disc Brake, Rear LH |
| 47821 | Mounting, Rear Disc Brake Cylinder, RH |
| 47822 | Mounting, Rear Disc Brake Cylinder, LH |
| 47830 | Cylinder Assy, Disc Brake, Rear RH |
| 47850 | Cylinder Assy, Disc Brake, Rear LH |
| 47881C | Cover, Disc Brake Dust, Rear RH |
| 47882 | Cover, Disc Brake Dust, Rear LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
