Toyota BZ3C

2024-12 → present · chassis BEAG11 · catalogue 183210 · General

Supported model Data version 2024-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

26 part groups · 2 illustrations

Illustrations

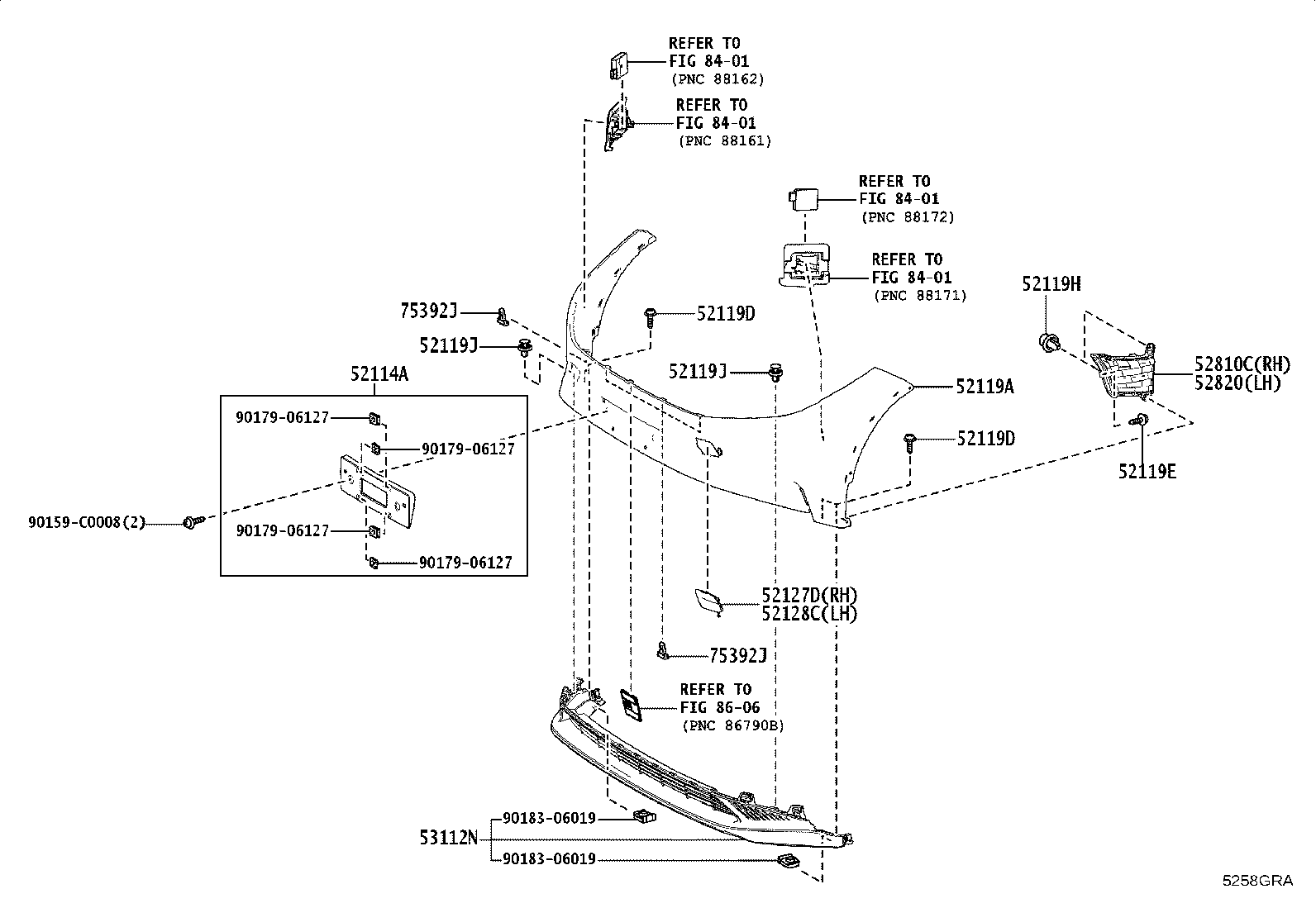

Figure 5258GQD 5258GQD 2024-12 → — Figure 5258GRA 5258GRA 2024-12 → —

Part groups

PNCDescription
51961E Hook, Front
52102F Extension Sub-assy, Front Bumper, RH
52103A Extension Sub-assy, Front Bumper, LH
52114A Bracket, Front Bumper Extension Mounting
52119A Cover, Front Bumper
52119D Screw, NO.1
52119E Screw, NO.2
52119H Clip, NO.2
52119J Clip, NO.3
52127D Cover, Front Bumper Hole, RH
52128C Cover, Front Bumper Hole, LH
52131A Reinforcement, Front Bumper
52132A Reinforcement, Front Bumper, NO.2
52535 Retainer, Front Bumper Side, RH
52536 Retainer, Front Bumper Side, LH
52611 Absorber, Front Bumper Energy
52618 Absorber, Front Bumper, Lower
52810C Duct Assy, Cool Air Intake, NO.1
52820 Duct Assy, Cool Air Intake, NO.2
53112N Grille, Radiator, Lower
57107N Reinforce Sub-assy, Front Bumper Mounting, RH
57108L Reinforce Sub-assy, Front Bumper Mounting, LH
75392J Retainer, Outside Moulding
89C48D Retainer, Ultrasonic Sensor, Front Corner
89C48E Retainer, Ultrasonic Sensor, Front Center
89C48F Retainer, Ultrasonic Sensor, Front Side
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
