Toyota BZ3C

2024-12 → present · chassis BEAG11 · catalogue 183210 · General

Supported model Data version 2024-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

24 part groups · 2 illustrations

Illustrations

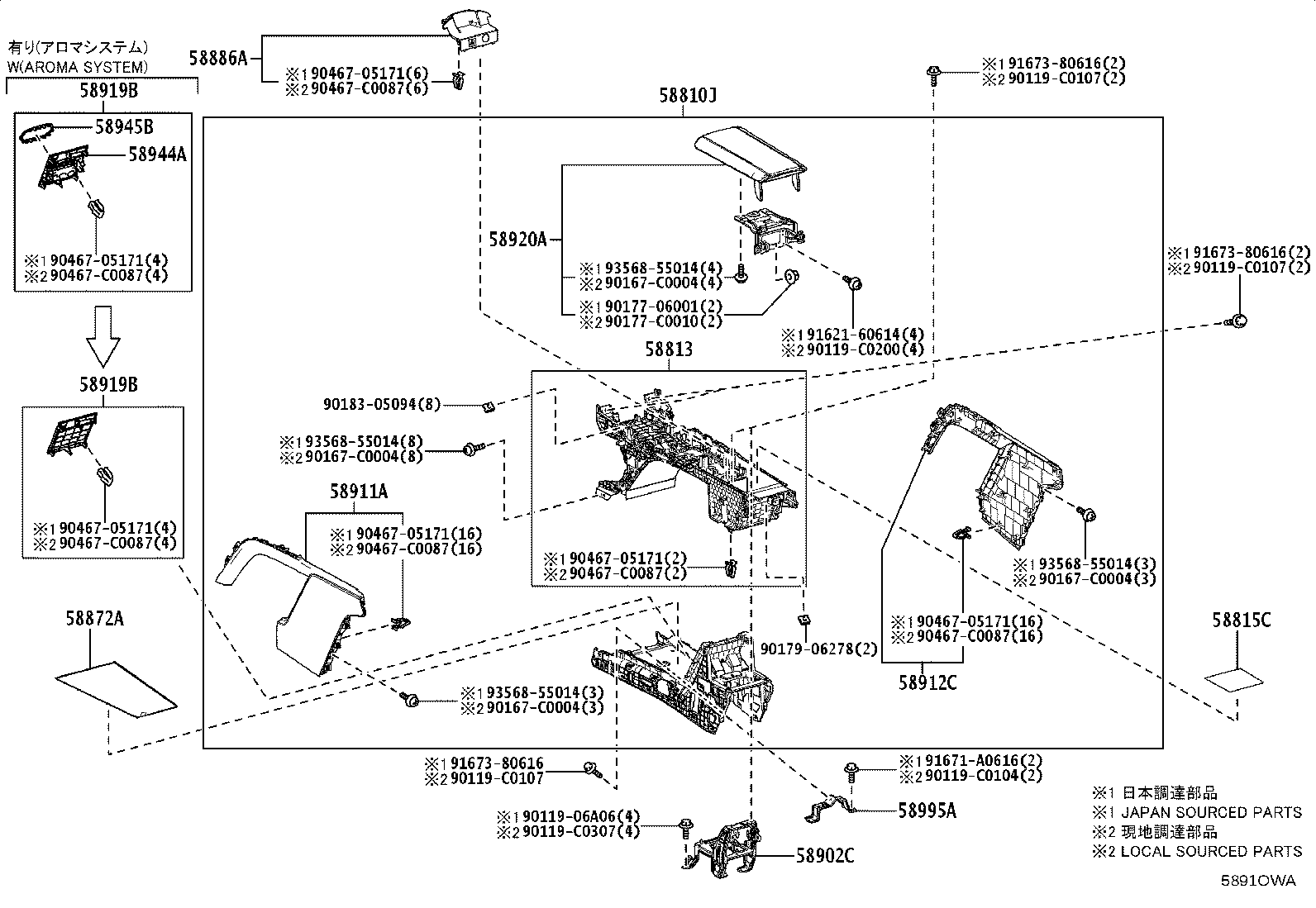

Figure 5891OVB 5891OVB 2024-12 → — Figure 5891OWA 5891OWA 2024-12 → —

Part groups

PNCDescription
55525B Cover, Speaker Hole, NO.1
55535A Cover, Speaker Hole, NO.2
58804A Panel Sub-assy, Console, Upper
58805C Panel Sub-assy, Console, Upper Rear
58810J Box Assy, Console
58813 Box, Console, Upper
58815C Carpet, Console Box
58823B Box, Console Compartment
58861A Support, Console Box, NO.1
58862C Support, Console Box, NO.2
58871 Cushion, Console Box
58872A Cushion, Console Box, NO.2
58886A Cover, Equipment Set Panel
58891A Panel, Equipment Set, NO.1
58892B Panel, Equipment Set, NO.2
58902C Bracket Sub-assy, Console Box Mounting
58903A Panel Sub-assy, Console Rear End
58911A Panel, Box Side, NO.1
58912C Panel, Box Side, NO.2
58919B Plate, Console Box
58920A Armrest Assy, Rear Console
58944A Cover, Console, Rear
58945B Garnish, Console, Rear
58995A Bracket, Console Box Mounting, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
