Toyota BZ3C

2024-12 → present · chassis BEAG11 · catalogue 183210 · General

Supported model Data version 2024-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Panel & Back Window Glass

18 part groups · 2 illustrations

Illustrations

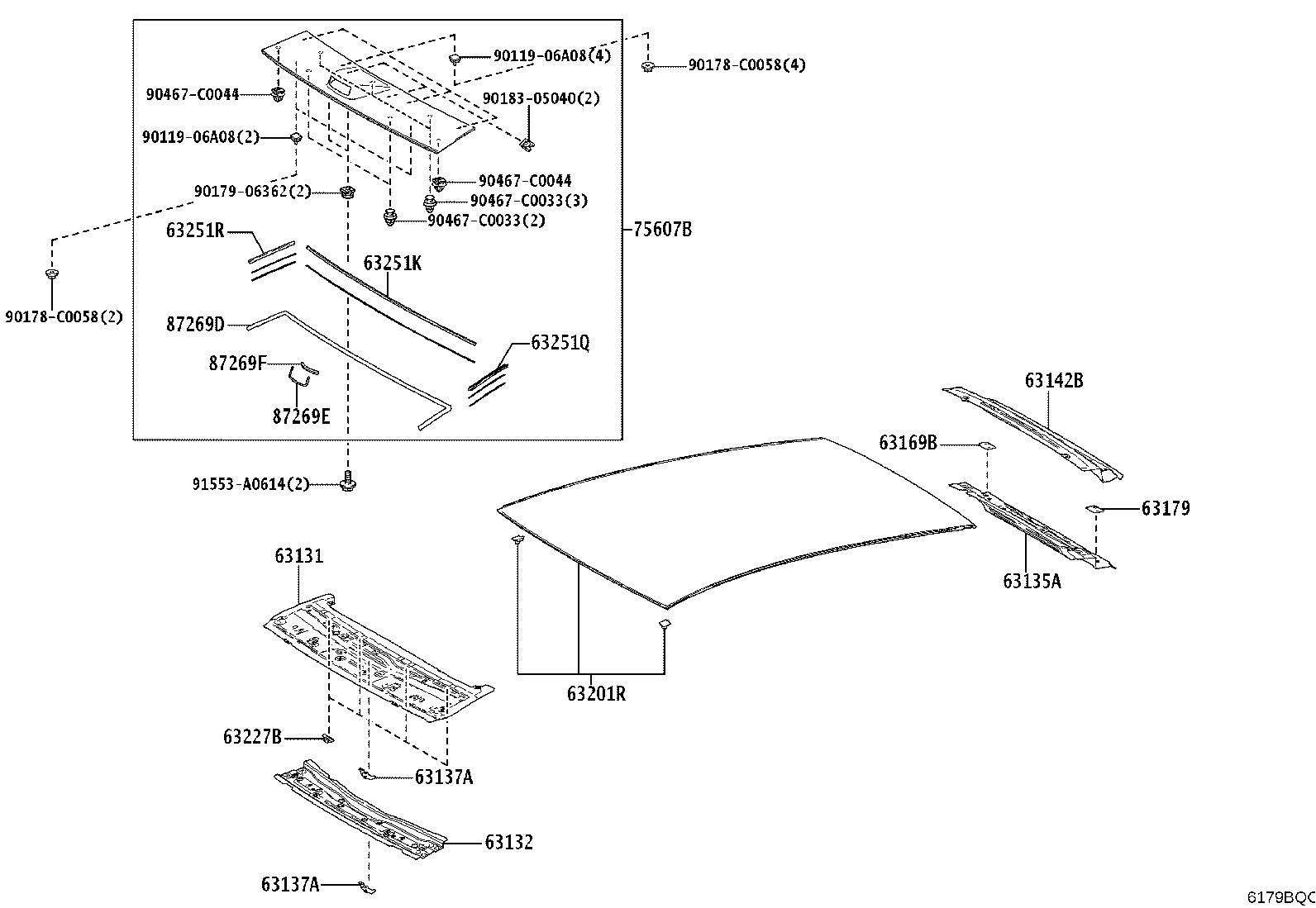

Figure 6179BPC 6179BPC 2024-12 → — Figure 6179BQC 6179BQC 2024-12 → —

Part groups

PNCDescription
63131 Panel, Windshield Header, Outer
63132 Panel, Windshield Header, Inner
63135A Frame, Back Door Opening, Lower
63137A Bracket, Dome Lamp, NO.1
63142B Reinforcement, Roof Panel, Rear
63169B Plate, Roof Panel Reinforcement, RH
63179 Plate, Roof Panel Reinforcement, LH
63201R Glass Sub-assy, Roof Window
63227B Bracket, Roof Head Lining
63227M Clip, Roof Window, Lower
63228N Clip, Roof Window, Side
63251K Weatherstrip, Tilt Roof
63251Q Weatherstrip, Tilt Roof, NO.2
63251R Weatherstrip, Tilt Roof, NO.3
75607B Moulding Sub-assy, Roof Top
87269D Protector, NO.1
87269E Protector, NO.2
87269F Protector, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
