Toyota BZ3C
2024-12 → present · chassis BEAG11 · catalogue 183210 · General
Supported model
Data version 2024-11

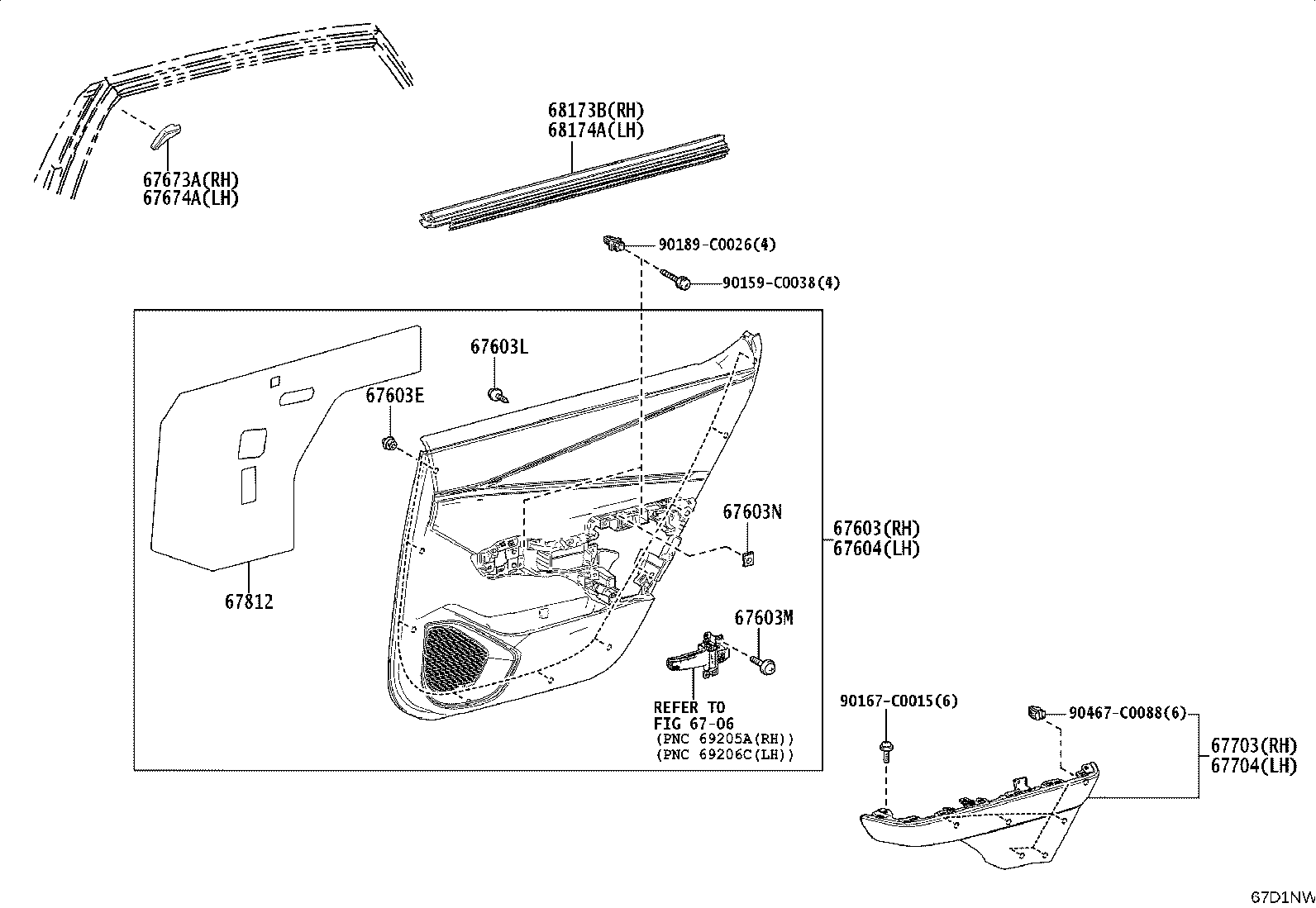

Rear Door Panel & Glass
48 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 67003 | Panel Sub-assy, Rear Door, RH |
| 67003C | Cushion, Rear Door Panel |
| 67004 | Panel Sub-assy, Rear Door, LH |
| 67407E | Bar Sub-assy, Rear Door Window Division, RH |
| 67408E | Bar Sub-assy, Rear Door Window Division, LH |
| 67470 | Seal Assy, Rear Door Rear Guide, RH |
| 67480 | Seal Assy, Rear Door Rear Guide, LH |
| 67603 | Board Sub-assy, Rear Door Trim, RH |
| 67603E | Clip(FOR REAR DOOR TRIM BOARD) |
| 67603L | Screw(FOR REAR DOOR TRIM BOARD) |
| 67603M | Screw(FOR REAR DOOR TRIM BOARD) |
| 67603N | Nut(FOR REAR DOOR TRIM BOARD) |
| 67604 | Board Sub-assy, Rear Door Trim, LH |
| 67673A | Garnish, Rear Door Frame, RH |
| 67674A | Garnish, Rear Door Frame, LH |
| 67703 | Cover Sub-assy, Rear Door Trim, RH |
| 67704 | Cover Sub-assy, Rear Door Trim, LH |
| 67812 | Pad, Rear Door Silencer |
| 67836 | Cover, Rear Door Lock Child Protection, RH |
| 67836H | Cover, Rear Door Lock Child Protection, LH |
| 67837C | Seal, Rear Door Dust Proof |
| 67841E | Cover, Rear Door Service Hole, RH |
| 67842E | Cover, Rear Door Service Hole, LH |
| 67867D | Retainer, Rear Door Weatherstrip, RH |
| 67867S | Retainer, Rear Door Weatherstrip, NO.2, RH |
| 67868D | Retainer, Rear Door Weatherstrip, LH |
| 67868G | Retainer, Door Weatherstrip |
| 67871 | Weatherstrip, Rear Door, RH |
| 67871A | Retainer(FOR REAR DOOR WEATHERSTRIP) |
| 67872 | Weatherstrip, Rear Door, LH |
| 67873L | Weatherstrip, Rear Door, NO.5 RH |
| 67874C | Weatherstrip, Rear Door, NO.5 LH |
| 68103 | Glass Sub-assy, Rear Door, RH |
| 68104 | Glass Sub-assy, Rear Door, LH |
| 68142C | Run, Rear Door Glass, RH |
| 68152C | Run, Rear Door Glass, LH |
| 68173B | Weatherstrip, Rear Door Glass, Inner RH |
| 68174A | Weatherstrip, Rear Door Glass, Inner LH |
| 68196B | Seal, Rear Door Belt, Front RH |
| 68197A | Seal, Rear Door Belt, Front LH |
| 68630D | Check Assy, Rear Door, RH |
| 68640A | Check Assy, Rear Door, LH |
| 75923C | Tape, Black Out, NO.2 RH |
| 75924C | Tape, Black Out, NO.2 LH |
| 75977H | Stripe, Rear Door Outside, Lower RH |
| 75978H | Stripe, Rear Door Outside, Lower LH |
| 75987F | Stripe, Rear Door, Outside, RH |
| 75988E | Stripe, Rear Door, Outside LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
