Toyota BZ3C
2024-12 → present · chassis BEAG11 · catalogue 183210 · General
Supported model
Data version 2024-11

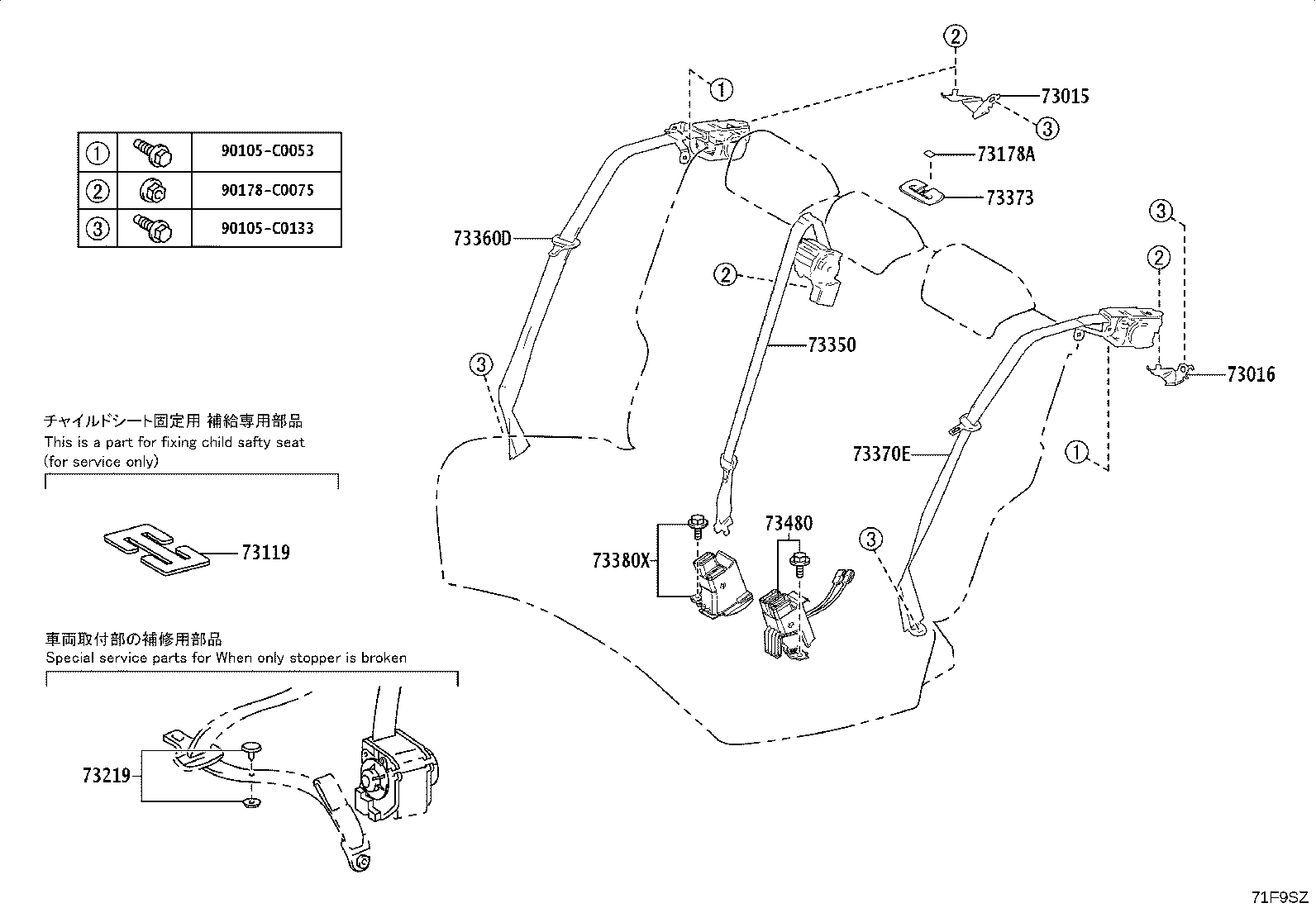

Seat Belt & Child Restraint Seat
17 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 73015 | Bracket Sub-assy, Belt Outer Anchor, RH |
| 73016 | Bracket Sub-assy, Belt Outer Anchor, LH |
| 73119 | Plate, Seat Belt Webbing Clip |
| 73178A | Cap, Seat Belt Anchor Cover |
| 73200A | Adjuster Assy, Front Shoulder Belt Anchor |
| 73210 | Belt Assy, Front Seat Outer, RH |
| 73214 | Plate, Front Seat Belt Anchor |
| 73219 | Stopper, Tongue Plate |
| 73220 | Belt Assy, Front Seat Outer, LH |
| 73230 | Belt Assy, Front Seat Inner, RH |
| 73240 | Belt Assy, Front Seat Inner, LH |
| 73350 | Belt Assy, Rear Seat Lap Type, Center |
| 73360D | Belt Assy, Rear Seat, Outer RH |
| 73370E | Belt Assy, Rear Seat, Outer LH |
| 73373 | Cover, Rear Seat Shoulder Belt |
| 73380X | Belt Assy, Rear Seat, Inner RH |
| 73480 | Belt Assy, Rear Seat Inner W/Center, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
