Toyota BZ3C
2024-12 → present · chassis BEAG11 · catalogue 183210 · General
Supported model
Data version 2024-11

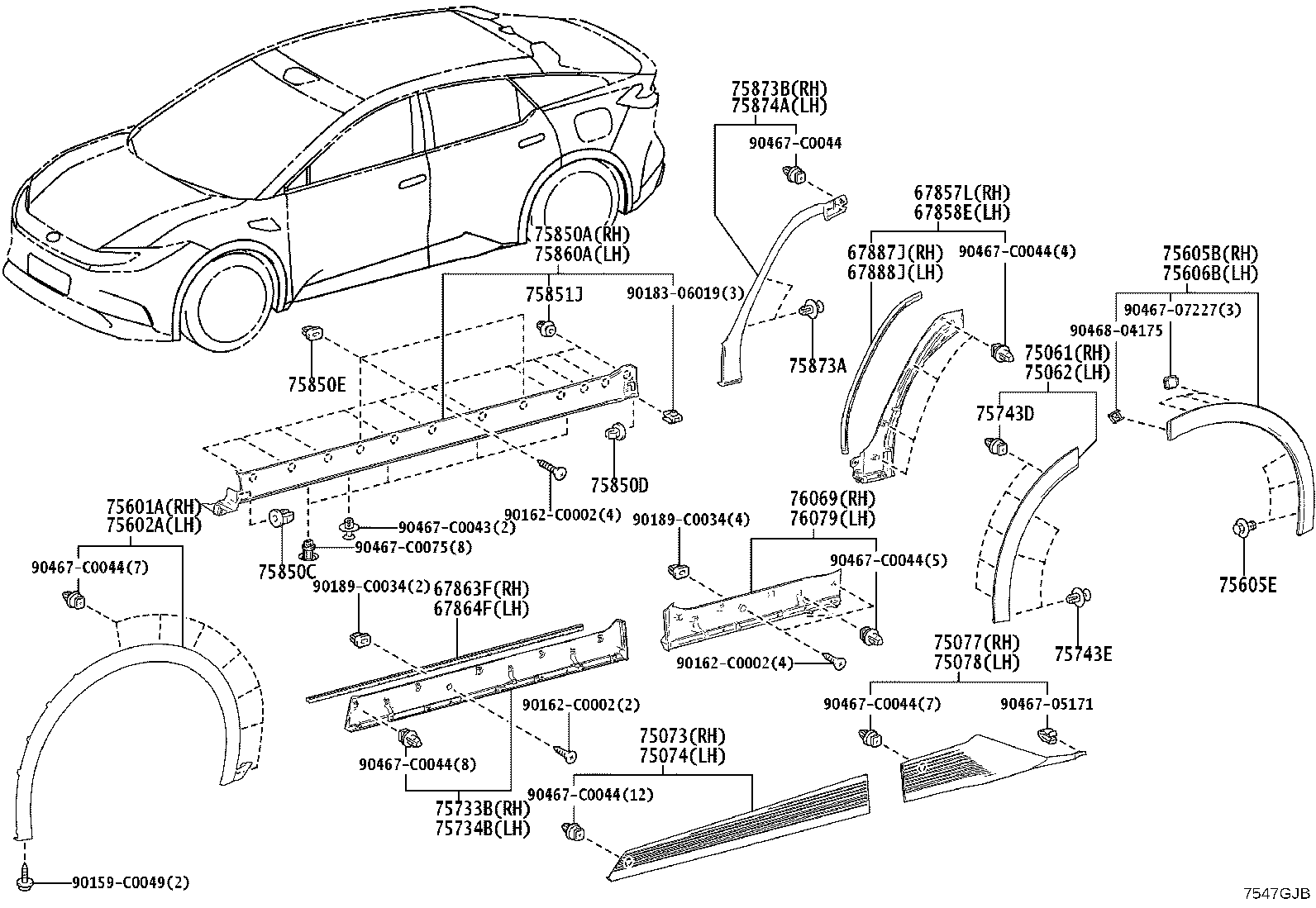

Side Moulding
61 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 52572 | Bracket, Upper Retainer Bumper, NO.1 |
| 52573 | Bracket, Upper Retainer Bumper, NO.2 |
| 52752C | Moulding, Rear Bumper Side, RH |
| 52753C | Moulding, Rear Bumper Side, LH |
| 55416F | Retainer, Instrument Cluster Finish Panel |
| 60117 | Cover Sub-assy, Front Pillar, Upr RH |
| 60118 | Cover Sub-assy, Front Pillar, Upr LH |
| 62505F | Moulding Sub-assy, Quarter Trim, RH |
| 62506D | Moulding Sub-assy, Quarter Trim, LH |
| 67857L | Protector, Rear Door Panel, RH |
| 67858E | Protector, Rear Door Panel, LH |
| 67863F | Weatherstrip, Front Door, NO.2 RH |
| 67864F | Weatherstrip, Front Door, NO.2 LH |
| 67887J | Weatherstrip, Access Panel, NO.2 RH |
| 67888J | Weatherstrip, Access Panel, NO.2 LH |
| 75061 | Moulding Set, Outside |
| 75062 | Moulding Set, Outside, LH |
| 75071A | Moulding Sub-assy, Front Door, Outside RH |
| 75072A | Moulding Sub-assy, Front Door, Outside LH |
| 75073 | Moulding Sub-assy, Front Door, Outside Lower RH |
| 75074 | Moulding Sub-assy, Front Door, Outside Lower LH |
| 75077 | Moulding Sub-assy, Rear Door Outside Lower RH |
| 75078 | Moulding Sub-assy, Rear Door Outside Lower LH |
| 75561A | Clip, Roof Drip Side Finish Moulding |
| 75601A | Moulding Sub-assy, Front Fender, RH |
| 75602A | Moulding Sub-assy, Front Fender, LH |
| 75605B | Moulding Sub-assy, Quarter Outside, RH |
| 75605E | Clip, Quarter Outside Moulding |
| 75606B | Moulding Sub-assy, Quarter Outside, LH |
| 75615E | Moulding, Front Fender, Outside Upper RH |
| 75616E | Moulding, Front Fender, Outside Upper LH |
| 75710 | Moulding Assy, Front Door Belt, RH |
| 75720 | Moulding Assy, Front Door Belt, LH |
| 75730 | Moulding Assy, Rear Door Belt, RH |
| 75733B | Moulding, Front Door, Outside Upper Rear RH |
| 75734B | Moulding, Front Door, Outside Upper Rear LH |
| 75740 | Moulding Assy, Rear Door Belt, LH |
| 75743D | Clip, NO.1(FOR REAR DOOR OUTSIDE MOULDING) |
| 75743E | Clip, NO.2(FOR REAR DOOR OUTSIDE MOULDING) |
| 75755C | Moulding, Front Door Window Frame, Rear RH |
| 75756C | Moulding, Front Door Window Frame, Rear LH |
| 75761A | Moulding, Rear Door Window Frame, Front RH |
| 75762A | Moulding, Rear Door Window Frame, Front LH |
| 75763A | Moulding, Rear Door Window Frame, Upper RH |
| 75764A | Moulding, Rear Door Window Frame, Upper LH |
| 75765A | Moulding, Rear Door Window Frame, Rear RH |
| 75766A | Moulding, Rear Door Window Frame, Rear LH |
| 75792 | Clip, Door Window Frame Moulding |
| 75850A | Moulding Assy, Body Rocker Panel, RH |
| 75850C | Grommet, NO.1 |
| 75850D | Grommet, NO.2 |
| 75850E | Grommet, NO.3 |
| 75851J | Clip(FOR ROCKER PANEL MOULDING) |
| 75860A | Moulding Assy, Body Rocker Panel, LH |
| 75873A | Clip (FOR QUARTER OPENING MOULDING) |
| 75873B | Moulding, Quarter Wheel Opening, RH |
| 75874A | Moulding, Quarter Wheel Opening, LH |
| 76069 | Cover Sub-assy, Rear Door Mudguard, RH |
| 76079 | Cover Sub-assy, Rear Door Mudguard, LH |
| 76813E | Moulding, Back Door Outside Garnish, RH |
| 76814B | Moulding, Back Door Outside Garnish, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
