Toyota BZ3C

2024-12 → present · chassis BEAG11 · catalogue 183210 · General

Supported model Data version 2024-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

45 part groups · 9 illustrations

Illustrations

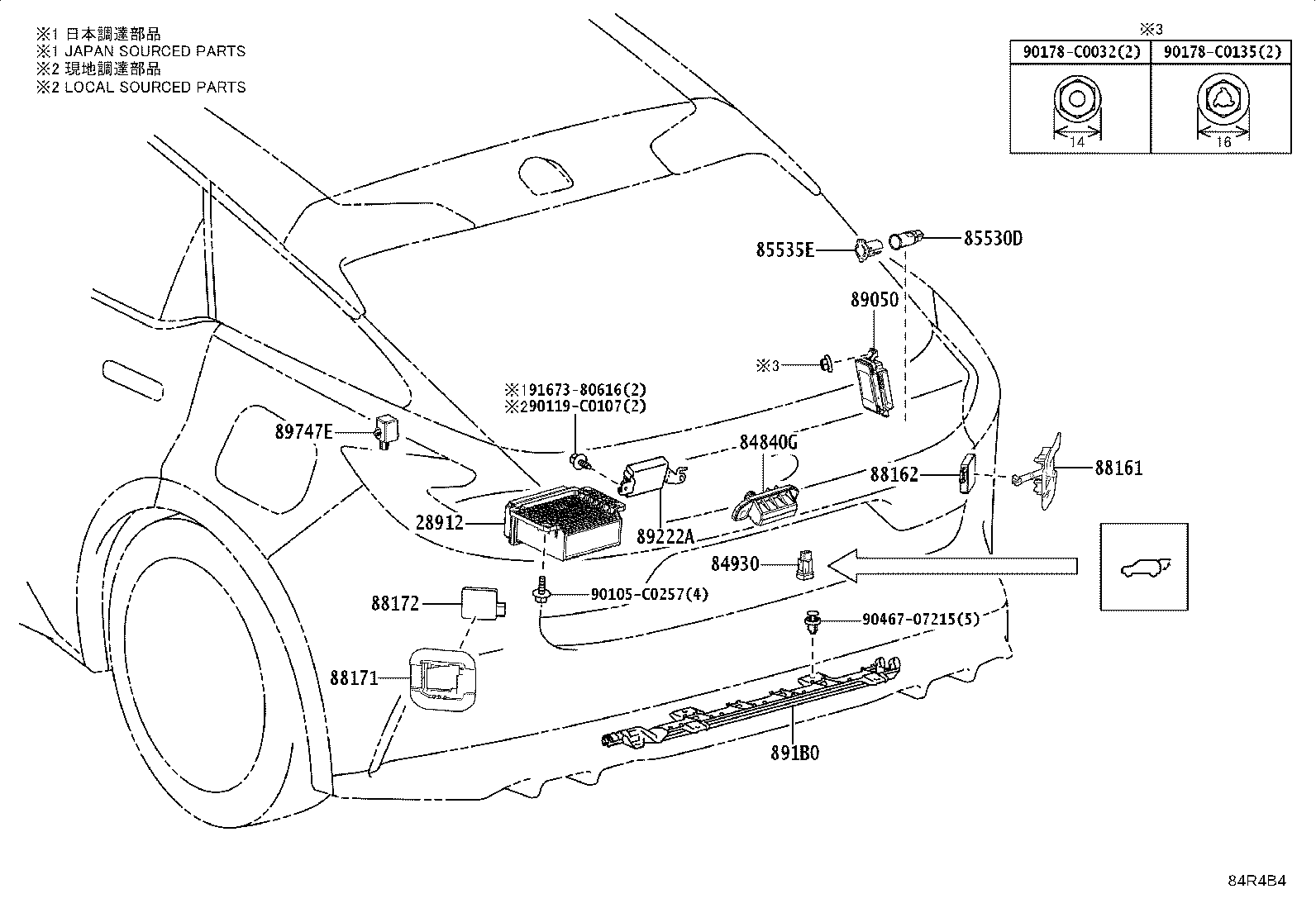

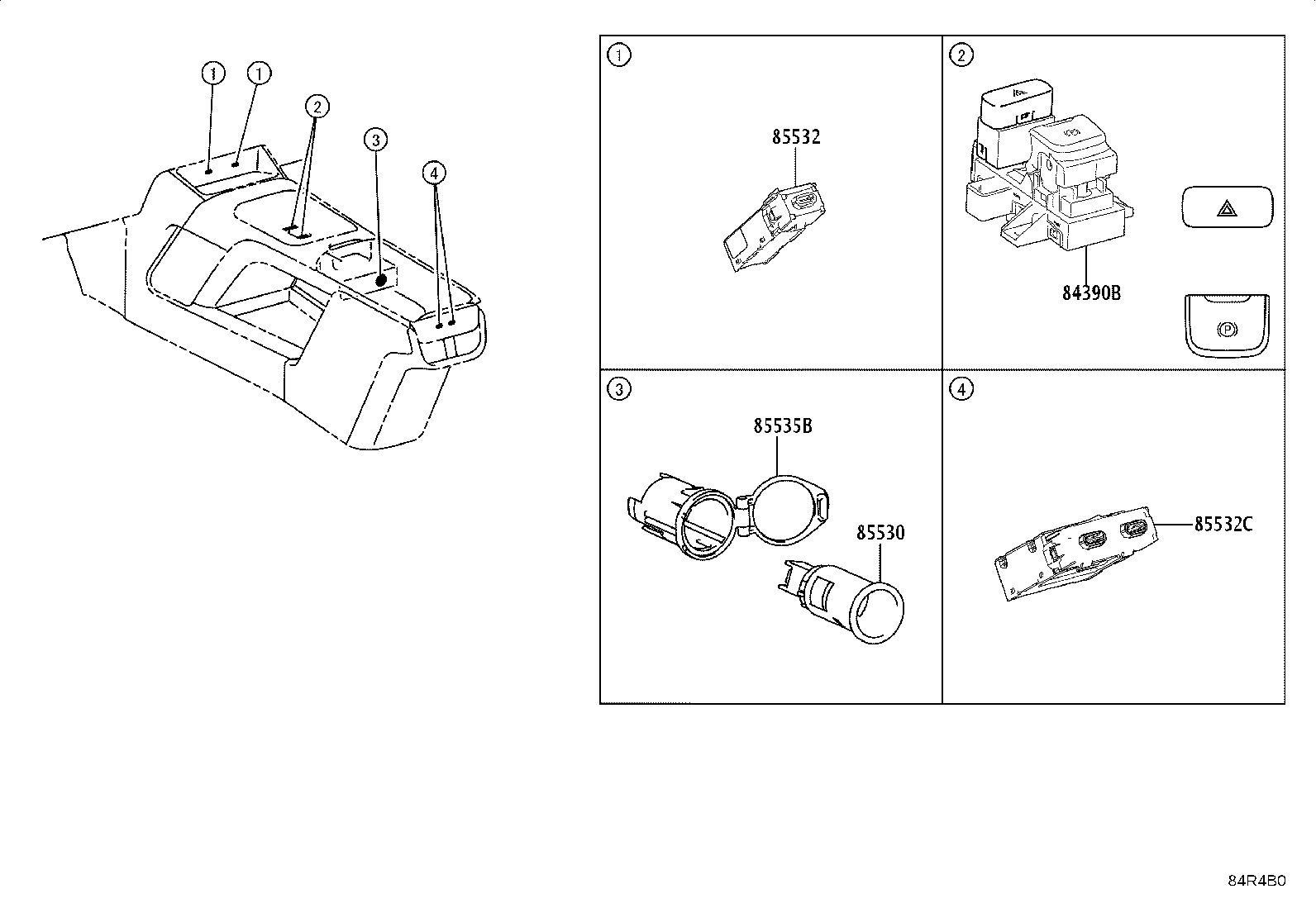

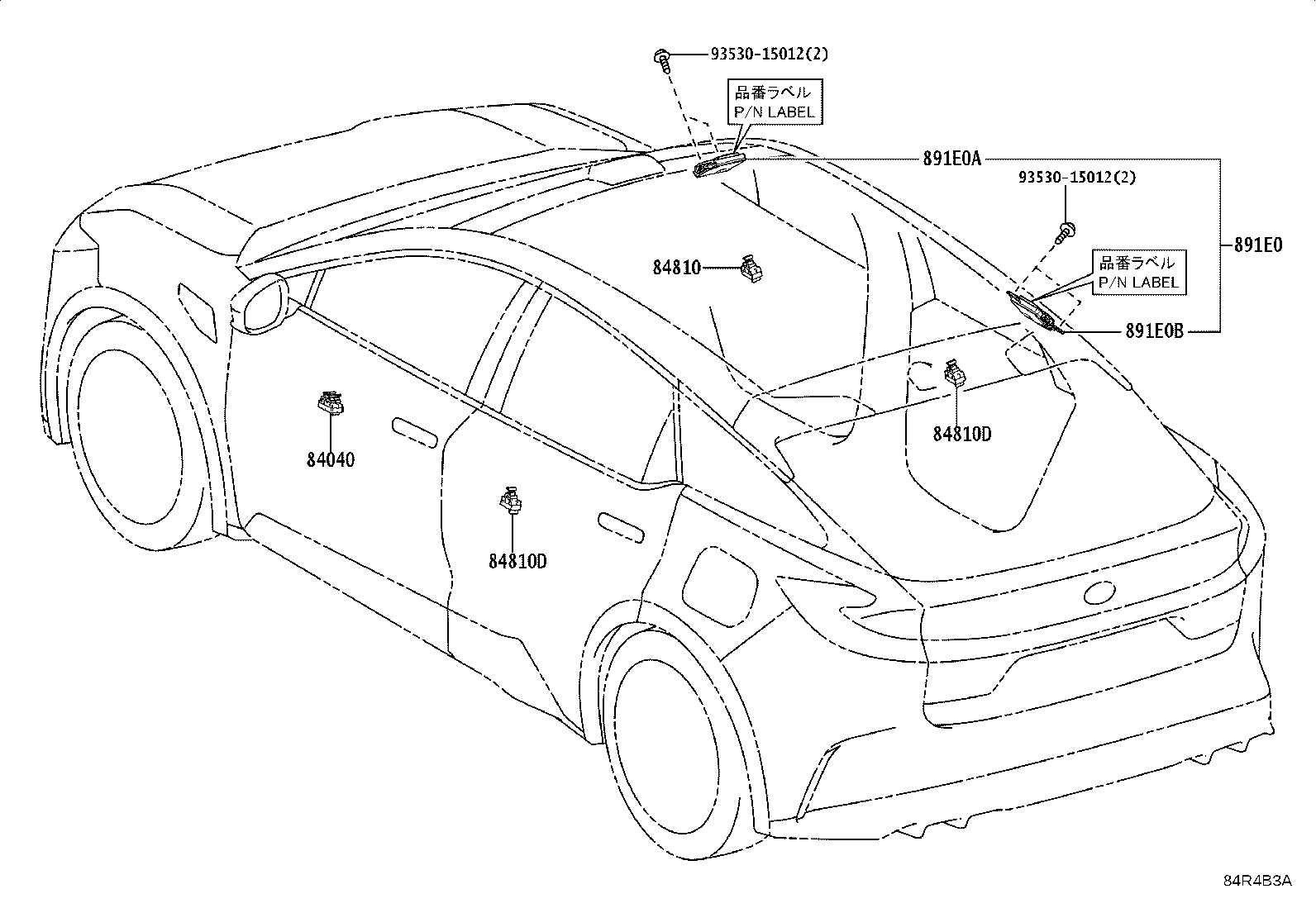

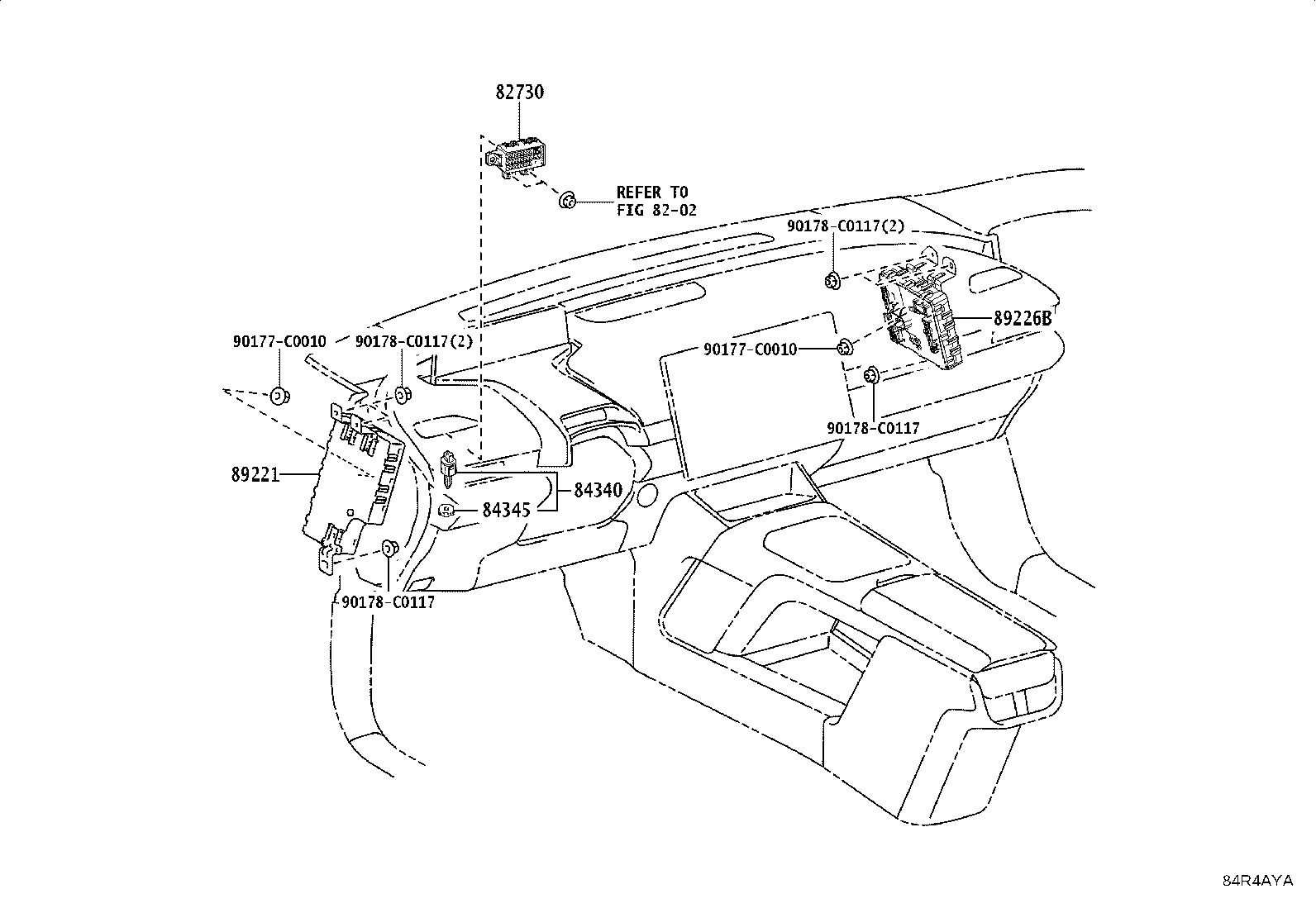

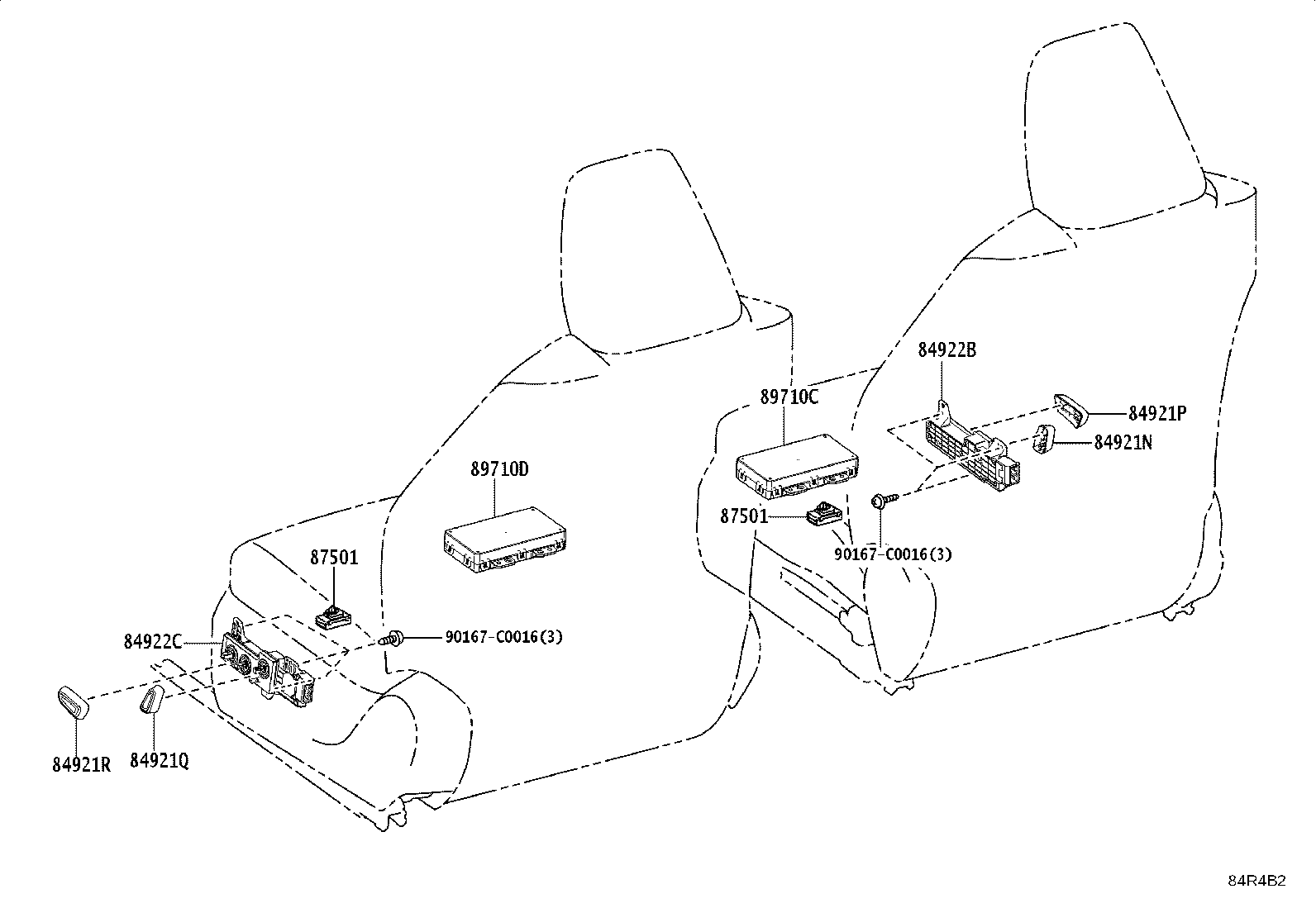

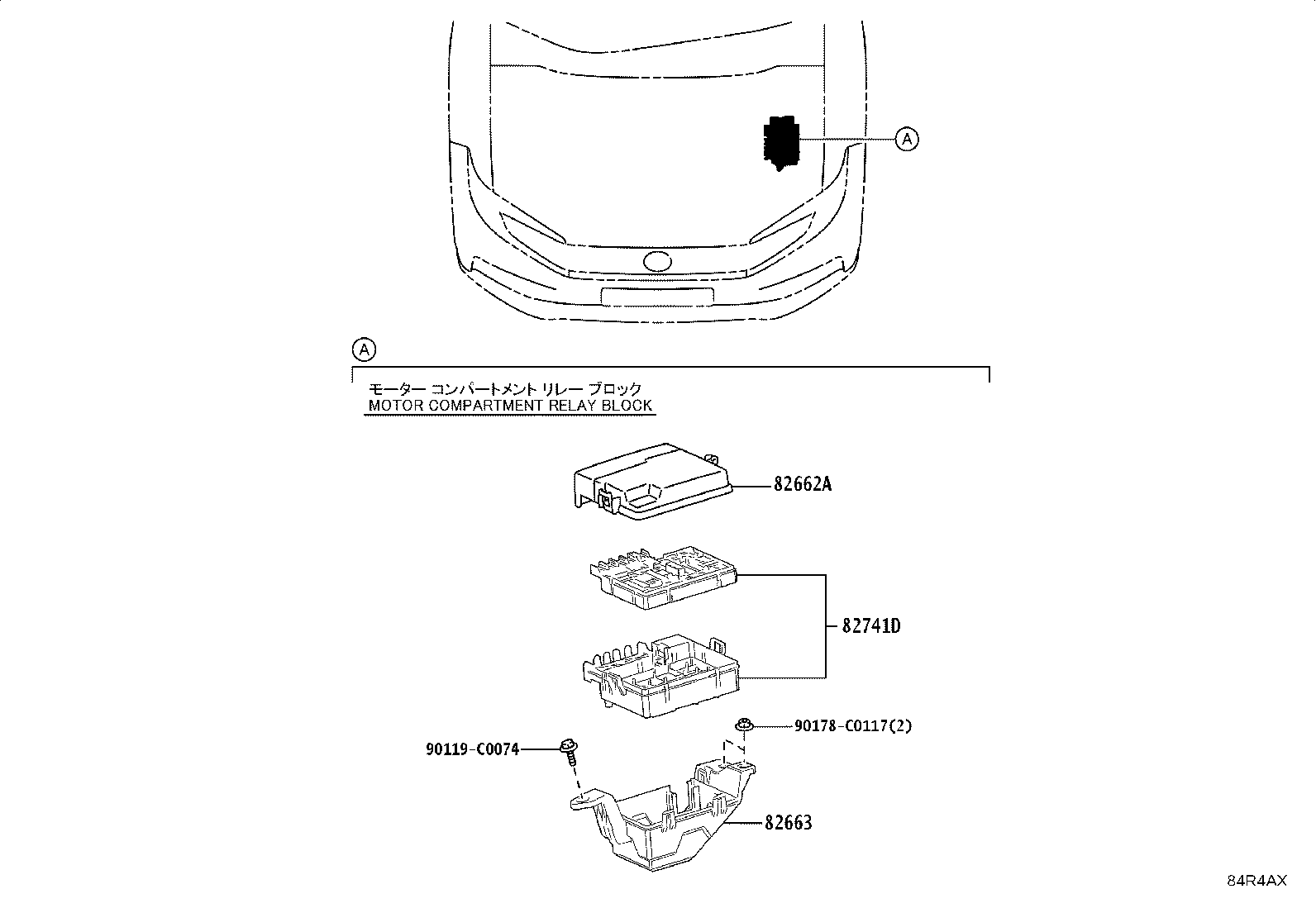

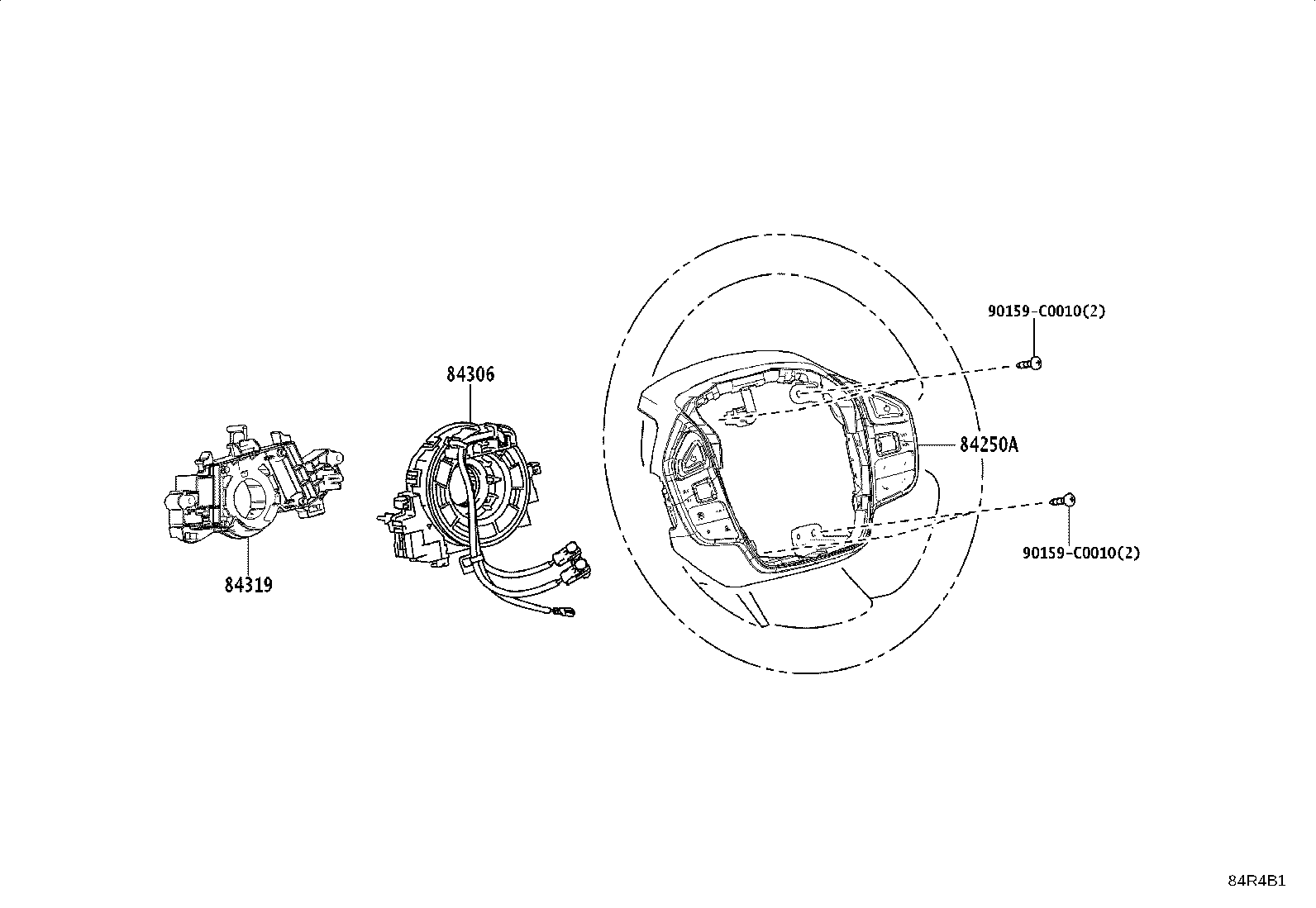

Figure 84R4AW 84R4AW 2024-12 → — Figure 84R4AX 84R4AX 2024-12 → — Figure 84R4AYA 84R4AYA 2024-12 → — Figure 84R4AZ 84R4AZ 2024-12 → — Figure 84R4B0 84R4B0 2024-12 → — Figure 84R4B1 84R4B1 2024-12 → — Figure 84R4B2 84R4B2 2024-12 → — Figure 84R4B3A 84R4B3A 2024-12 → — Figure 84R4B4 84R4B4 2024-12 → —

Part groups

PNCDescription
28912 Supply, Integration Control
82662A Cover, Relay Block, Upper, NO.1
82663 Cover, Relay Block, Lower
82730 Block Assy, Instrument Panel Junction
82741D Block, Front Compartment Relay
84040 Master Switch Assy,Multiplex Network
84250A Switch Assy, Steering Pad
84306 Cable Sub-assy, Spiral
84319 Housing, Steering Wheel Switch
84340 Switch Assy, Stop Lamp
84345 Adjuster, Stop Lamp Switch Mounting
84390B Switch Assy, Electric Parking Brake
84810 Switch Assy, Power Window Regulator
84810D Switch Assy, Power Window Regulator, Rear
84840G Switch Assy, Back Door Opener
84921N Knob, Power Seat Switch, RH (FOR RECLINING)
84921P Knob, Power Seat Switch, RH (FOR SLIDE & VERTICAL)
84921Q Knob, Power Seat Switch, LH (FOR RECLINING)
84921R Knob, Power Seat Switch, LH (FOR SLIDE & VERTICAL)
84922B Switch, Front Power Seat, RH
84922C Switch, Front Power Seat, LH
84930 Switch Assy, Door Control
85530 Socket Assy, Power Outlet, NO.1
85530D Socket Assy, Power Outlet, NO.2
85532 Socket, Usb Charger
85532C Socket, Usb Charger, NO.2
85535B Cover, Power Outlet Socket, NO.1
85535E Cover, Power Outlet Socket, NO.2
87501 Control Sub-assy, Seat Heater
88161 Bracket, Blind Spot Monitor, RH
88162 Sensor, Blind Spot Monitor, RH
88171 Bracket, Blind Spot Monitor, LH
88172 Sensor, Blind Spot Monitor, LH
89050 Computer Assy, Parking Brake
891B0 Sensor Assy, Kick Door Control
891E0 Sensor Assy, Cabin Object Recognition
891E0A Sensor Assy, Cabin Object Recognition, Front
891E0B Sensor Assy, Cabin Object Recognition, Rear
89221 Computer, Multiplex Network Body
89222A Computer, Multiplex Network Door
89226B Computer, Multiplex Network Body, NO.2
89611 Switch, Push Start
89710C Computer Assy, Position Control, RH
89710D Computer Assy, Position Control, LH
89747E Buzzer, Power Back Door Warning
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
