Toyota MR2

1989-12 → 1999-08 · chassis SW20 · catalogue 211220 · General

Discontinued model Data version 2000-03

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mudguard & Spoiler

46 part groups · 3 illustrations

Illustrations

760910 1989-12 → 1993-11

760107B 1993-11 → —

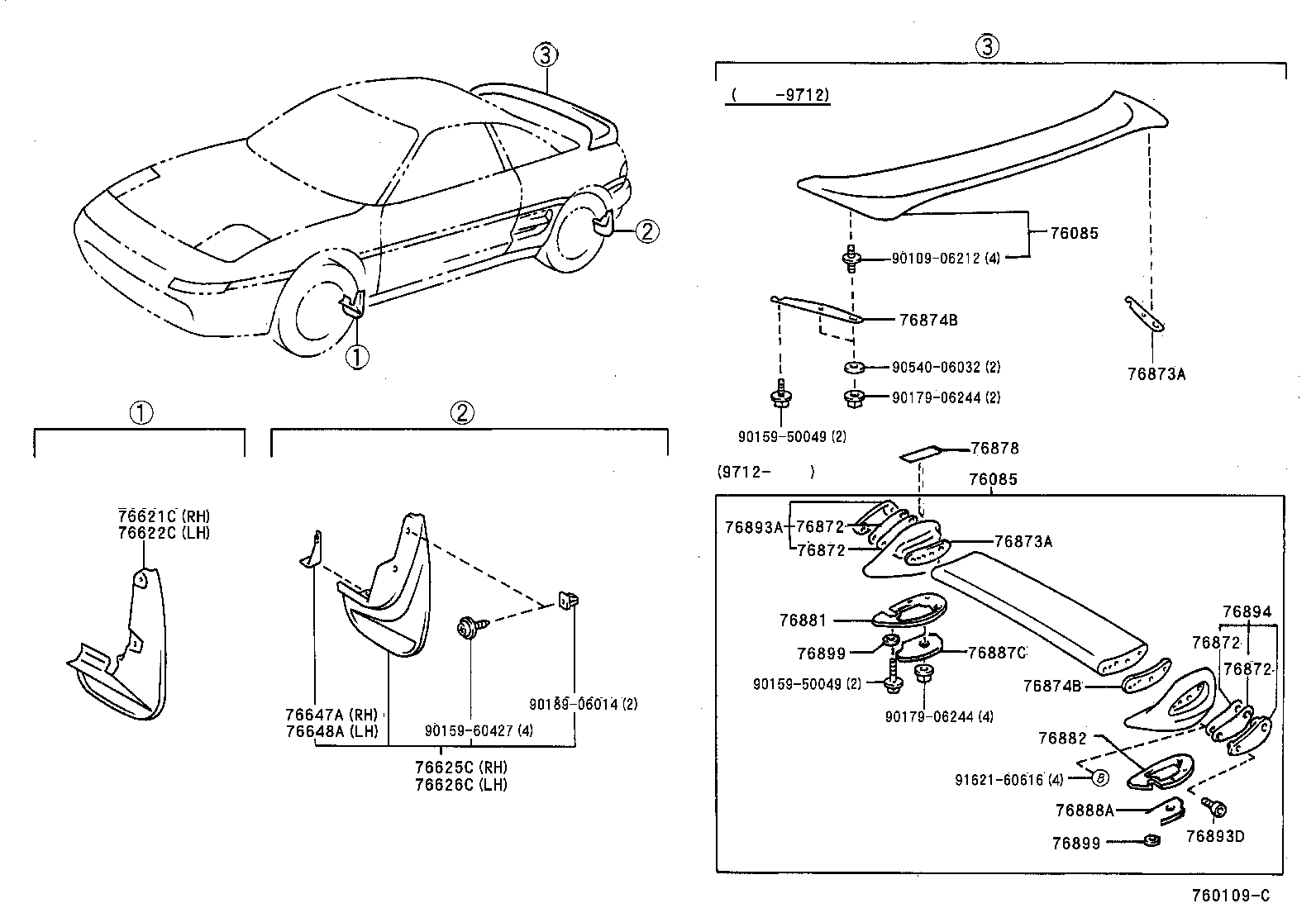

760109C 1993-11 → —

Part groups

PNC	Description
76085	Spoiler Sub-assy, Rear
76087A	Spoiler Sub-assy, Rear Side
76088A	Spoiler Sub-assy, Rear Side
76091	Spoiler Sub-assy, Rear Upper
76092	Spoiler Sub-assy, Rear Lower
76621C	Mudguad, Front Fender, RH
76622C	Mudguard, Front Fender, LH
76625C	Mudguad, Quarter Panel, Rear RH
76626C	Mudguad, Quarter Panel, Rear LH
76647A	Support, Rear Body Mudguard, RH
76648A	Support, Rear Body Mudguard, LH
76843	Protector, Rear Spoiler, NO.11 RH
76844	Protector, Rear Spoiler, NO.11 LH
76848A	Support, Rear Spoiler
76849B	Support, Rear Spoiler
76851	Cover, Front Spoiler
76851A	Cover, Front Spoiler, RH
76852A	Cover, Front Spoiler, LH
76853B	Cover, Front Spoiler, Center
76857	Retainer, Front Spoiler Side, RH
76858	Retainer, Front Spoiler Side, LH
76861	Retainer, Front Spoiler, Lower NO.1
76863	Retainer, Front Spoiler, Lower NO.2 RH
76864	Retainer, Front Spoiler, Lower NO.2 LH
76872	Protector, Rear Spoiler, NO.1
76872A	Protector, Rear Spoiler, NO.1
76873	Protector, Rear Spoiler, NO.2
76873A	Protector, Rear Spoiler, RH
76874	Protector, Rear Spoiler, NO.3
76874B	Protector, Rear Spoiler, LH
76875	Protector, Rear Spoiler, NO.4
76878	Label, Rear Spoiler Notice
76881	Protector, Rear Spoiler Side, NO.1 RH
76882	Protector, Rear Spoiler Side, NO.1 LH
76883B	Protector, Rear Spoiler, NO.7
76887B	Protector, Rear Spoiler Side, NO.2
76887C	Protector, Rear Spoiler, NO.9 RH
76888	Protector, Rear Spoiler Side, NO.3
76888A	Protector, Rear Spoiler, NO.9 LH
76889C	Adhesive, Rear Spoiler
76893A	Cover, Rear Spoiler, RH
76893D	Bolt(FOR REAR SPOILER COVER)
76894	Cover, Rear Spoiler, LH
76896	Protector, Rear Spoiler, NO.6
76899	Protector, Rear Spoiler, Side NO.6
76899B	Protector, Rear Spoiler, Side NO.6

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
