Toyota MR2
1989-12 → 1999-08 · chassis SW20 · catalogue 211220 · General
Discontinued model
Data version 2000-03
Radio Receiver & Amplifier & Condenser
8 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 86011A | Condenser, Radio Setting |
| 86120 | Receiver Assy, Radio |

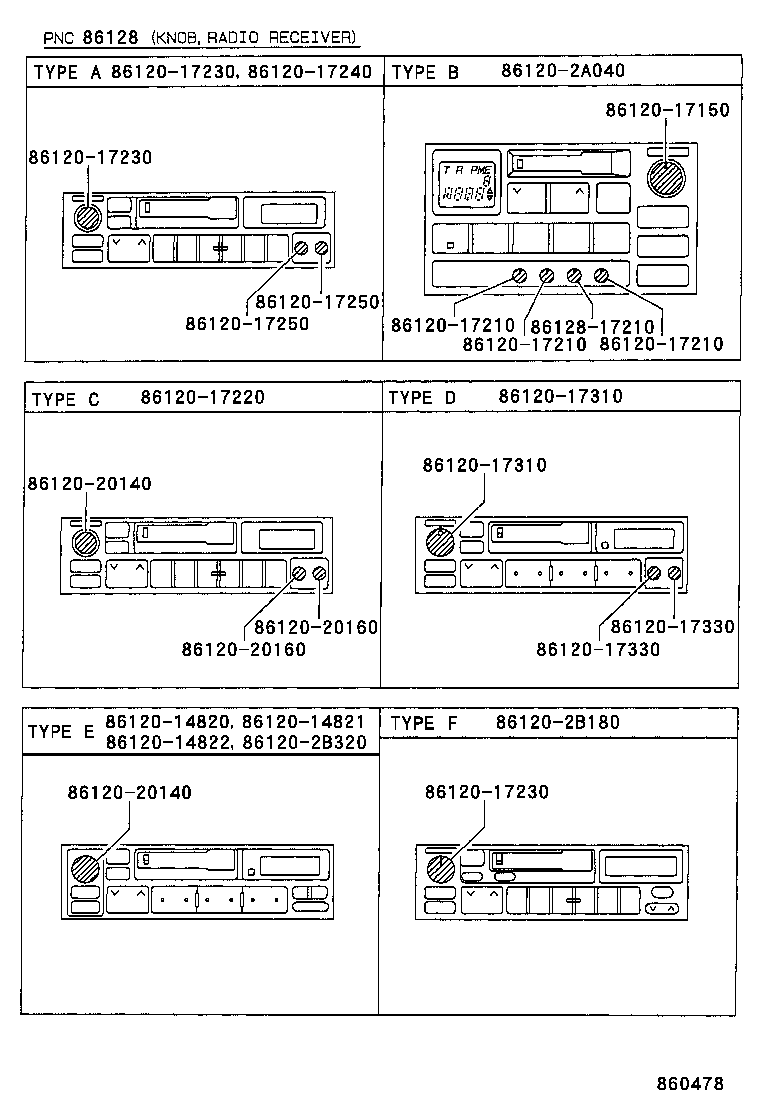

| 86128 | Knob, Radio Receiver |
| 86170 | Switch And Volume Assy, Radio |
| 86174 | Case, Switch & Volume |
| 86211 | Bracket, Radio, NO.1 |
| 86212 | Bracket, Radio, NO.2 |
| 86280 | Amplifier Assy, Stereo Component |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
