Toyota Prius (CHINA)

2011-12 → 2015-10 · chassis ZVW30 · catalogue 220310 · General

Discontinued model Data version 2015-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Interior Lamp

15 part groups · 2 illustrations

Illustrations

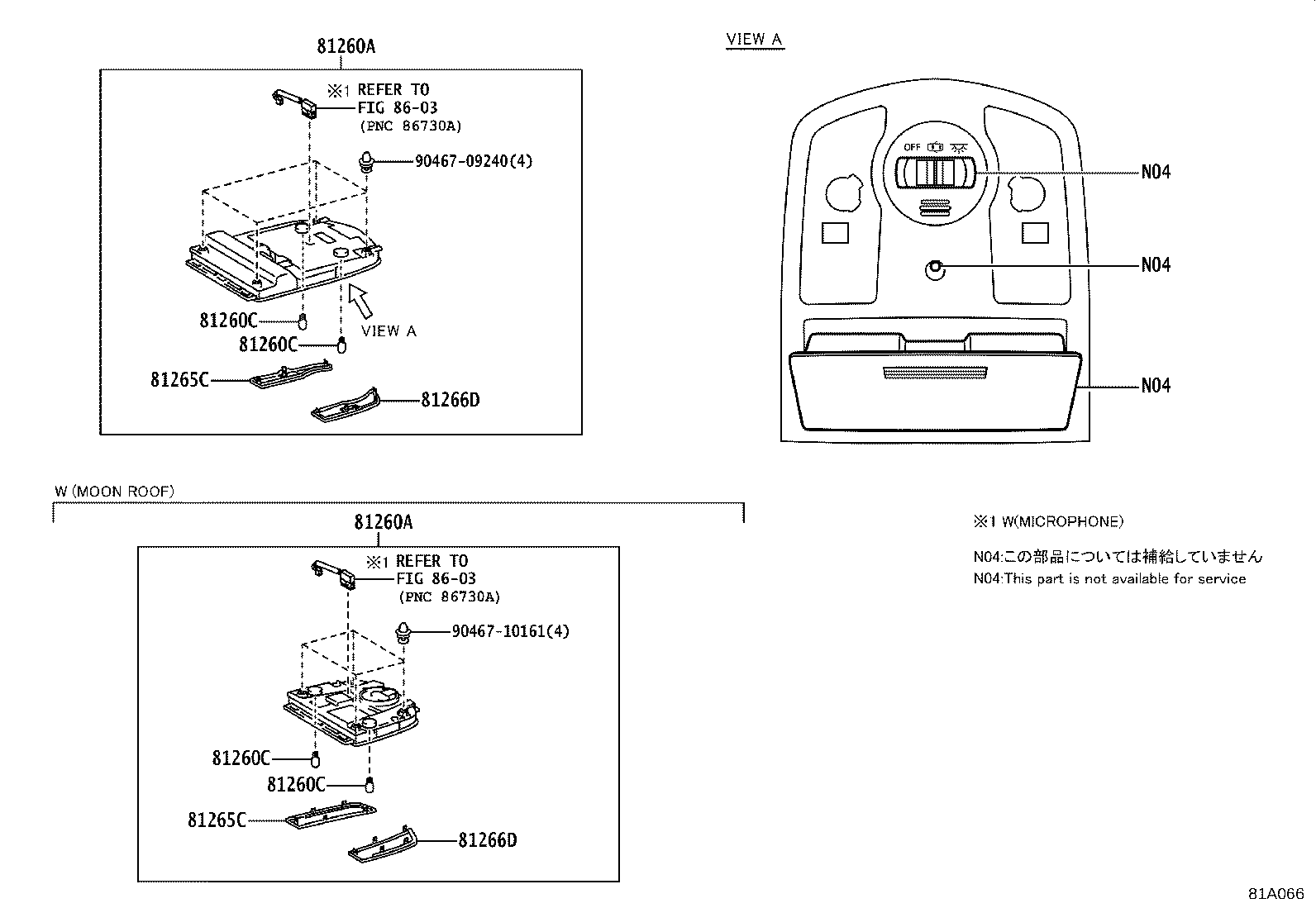

Figure 815338D 815338D 2011-12 → — Figure 81A066 81A066 2011-12 → —

Part groups

PNCDescription
81080H Lamp Assy, Interior Illumination, NO.1 RH
81080L Lamp Assy, Interior Illumination, NO.1 LH
81230 Lamp Assy, Courtesy
81230B Bulb(FOR COURTESY LAMP)
81240 Lamp Assy, Room, NO.1
81240B Bulb, Room Lamp, NO.1
81250 Lamp Assy, Room, NO.2
81250B Bulb, Room Lamp, NO.2
81260 Lamp Assy, Glove Box
81260A Lamp Assy, Map
81260C Bulb(FOR MAP LAMP)
81265C Lens, Map Lamp, NO.1
81266D Lens, Map Lamp, NO.2
81340 Lamp Assy, Vanity
81340B Bulb (FOR VANITY LAMP)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
