Toyota Prius (CHINA)

2011-12 → 2015-10 · chassis ZVW30 · catalogue 220310 · General

Discontinued model Data version 2015-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

75 part groups · 6 illustrations

Illustrations

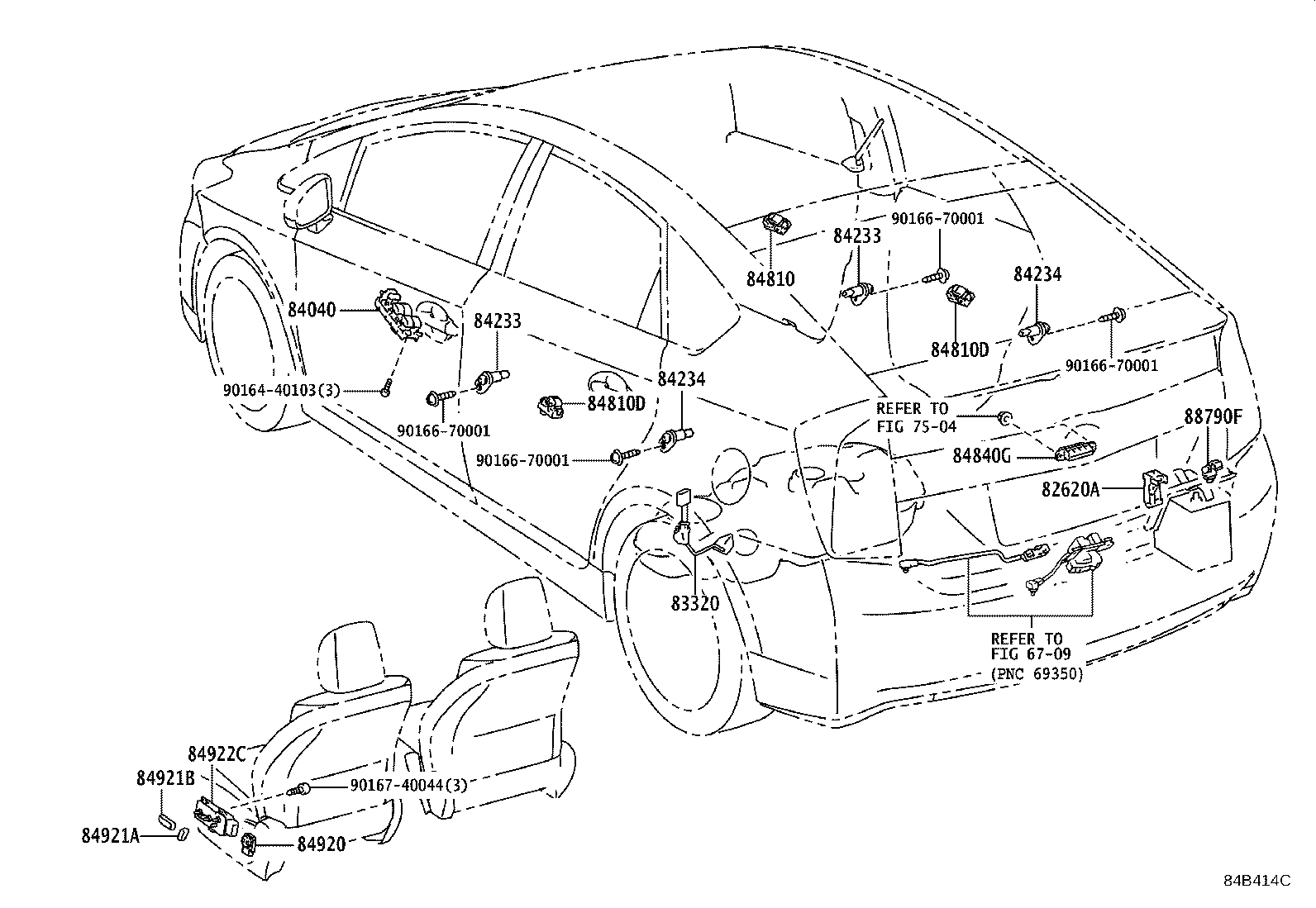

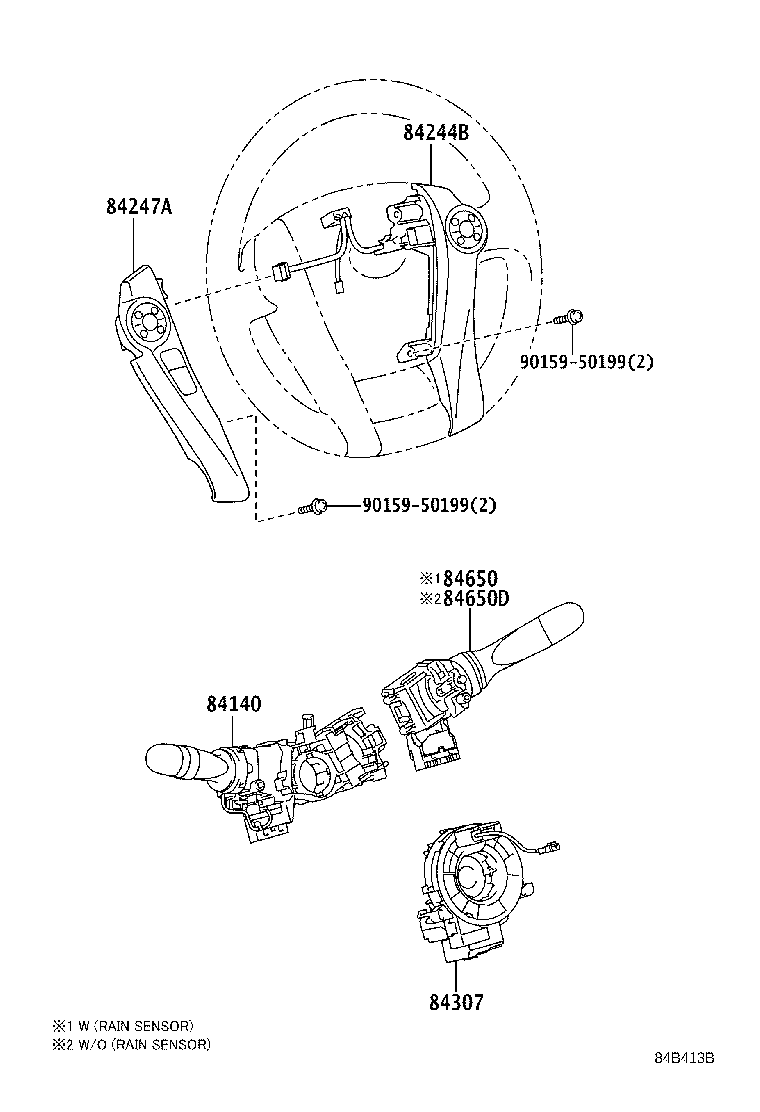

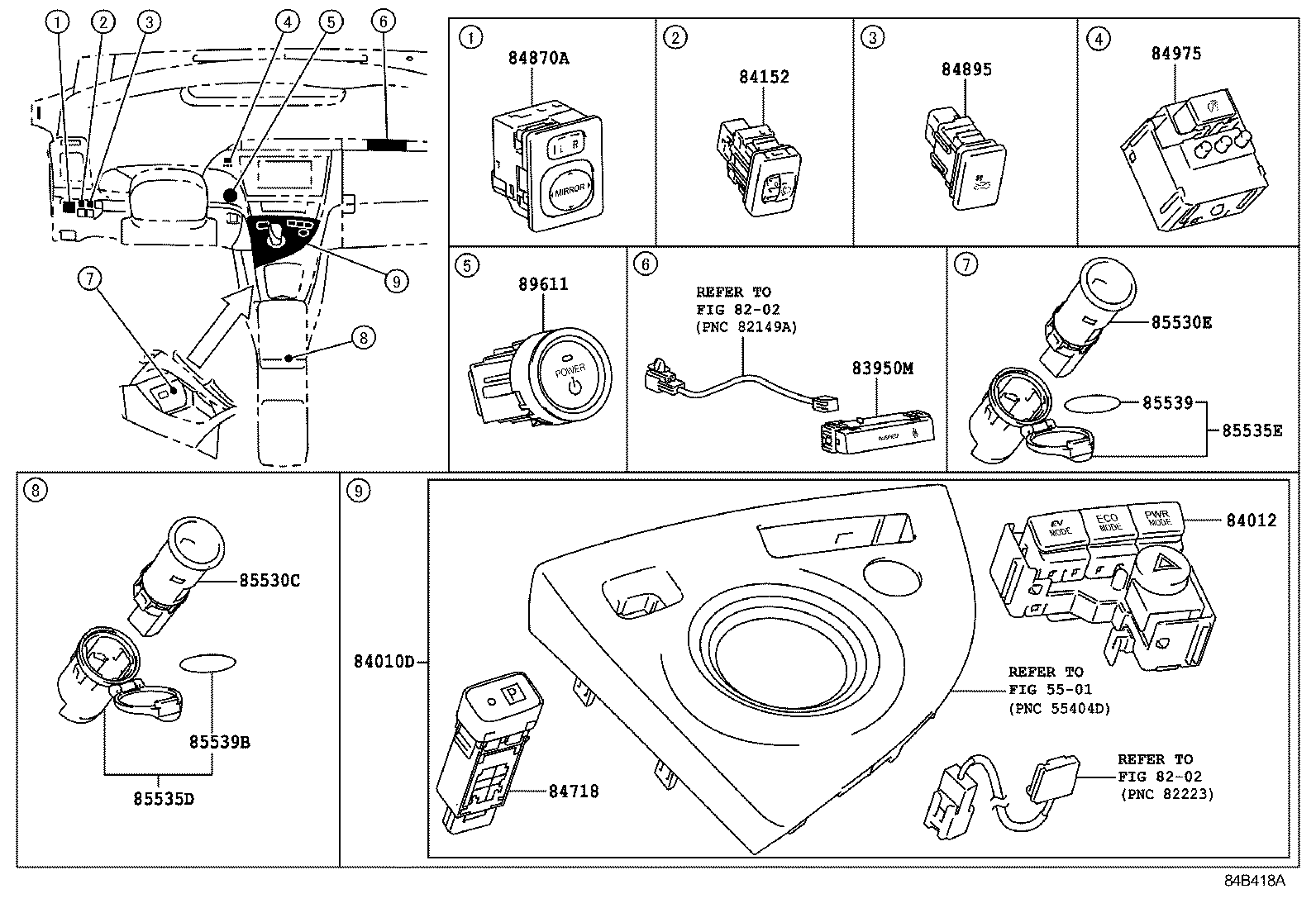

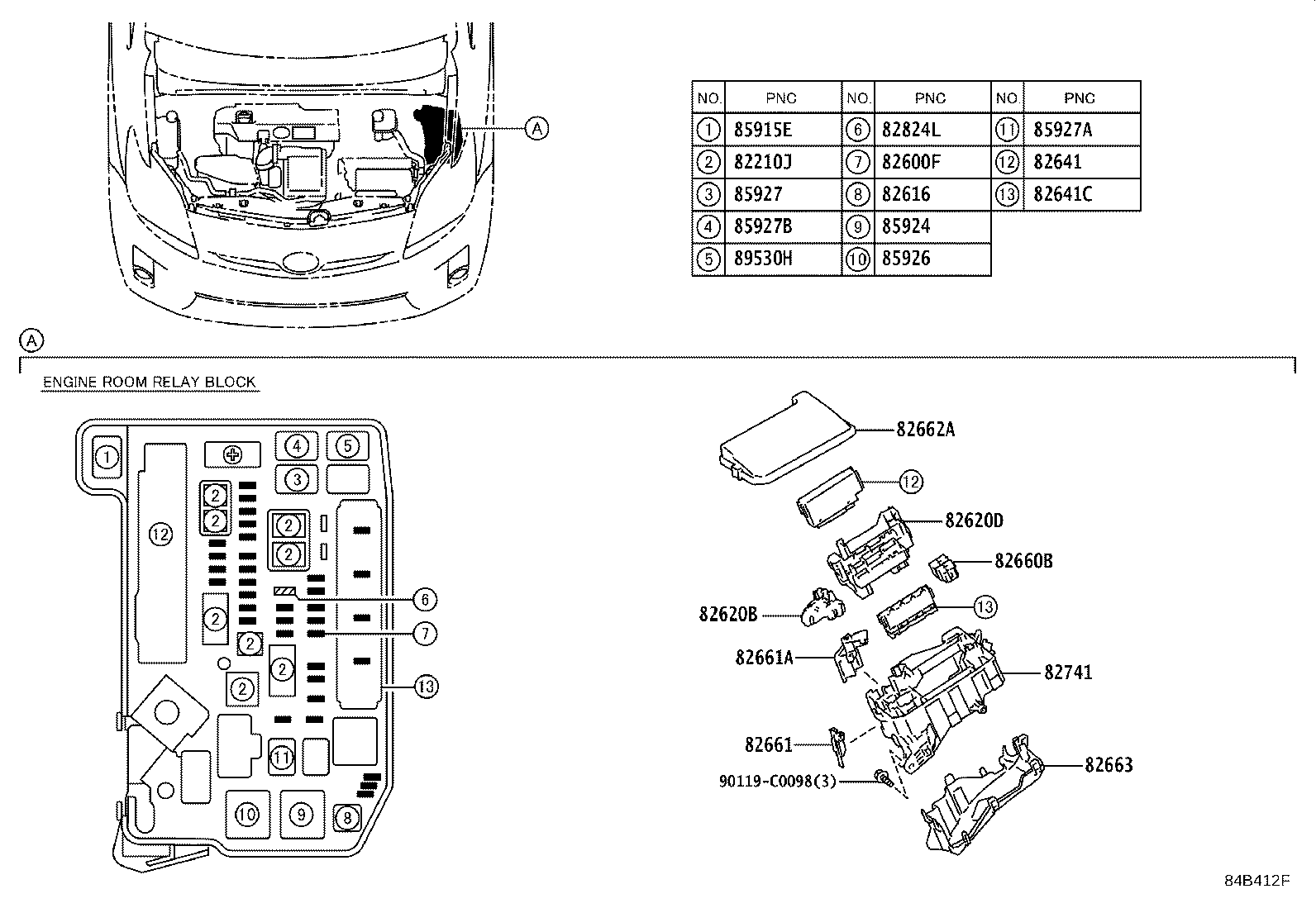

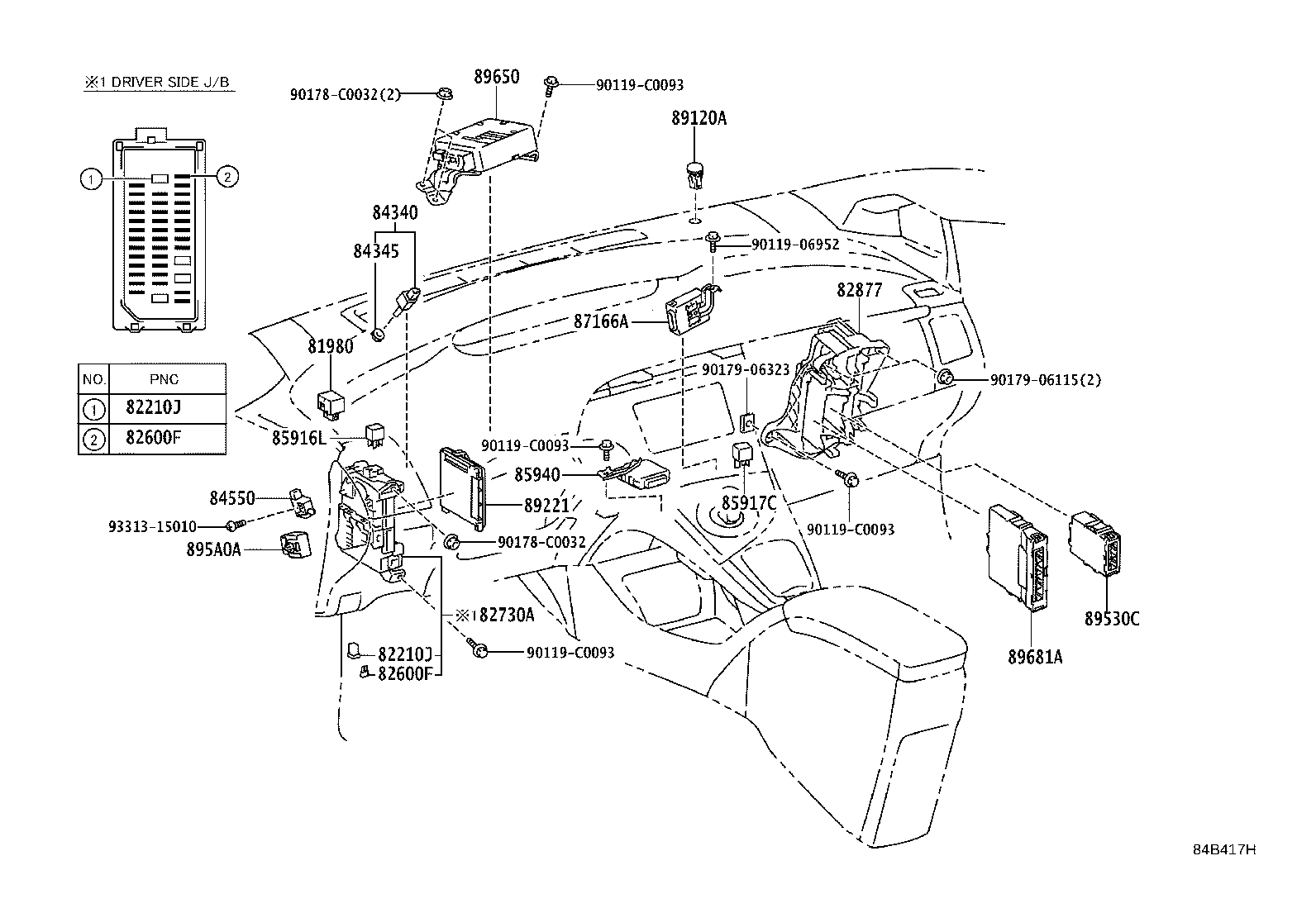

Figure 84B411 84B411 2011-12 → — Figure 84B412F 84B412F 2011-12 → — Figure 84B417H 84B417H 2011-12 → — Figure 84B418A 84B418A 2011-12 → — Figure 84B413B 84B413B 2011-12 → — Figure 84B414C 84B414C 2011-12 → —

Part groups

PNCDescription
81980 Flasher Assy, Turn Signal
82210J Fusible Link
82600F Fuse, Fuse Block
82616 Puller, Fuse
82620A Block Assy, Fusible Link
82620B Block Assy, Fusible Link
82620D Block Assy, Fusible Link
82641 Relay, Integration NO.1
82641C Relay, Integration NO.2
82660B Block Assy, Relay
82661 Cover, Relay Block, NO.1
82661A Cover, Relay Block, NO.2
82662A Cover, Relay Block, Upper, NO.1
82663 Cover, Relay Block, Lower
82730A Block Assy, Driver Side Junction
82741 Block, Engine Room Relay
82824L Pin, Short
82877 Box, Computer Integration, RH
83320 Gage Assy, Fuel Sender
83530 Switch Assy, Oil Pressure (FOR ENGINE)
83950M Lamp Assy, Telltale
84010D Control & Panel Assy, Integration
84012 Control & Panel Sub-assy, Integration
84040 Master Switch Assy,Multiplex Network
84140 Switch Assy, Headlamp Dimmer
84152 Switch, Headlamp Leveling
84233 Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84234 Switch Assy, Courtesy Lamp (FOR REAR DOOR)
84244B Switch, Steering Pad, RH
84247A Switch, Steering Pad, LH
84307 Cable Sub-assy, Spiral W/Sensor
84340 Switch Assy, Stop Lamp
84345 Adjuster, Stop Lamp Switch Mounting
84550 Switch Assy, Parking Brake
84650 Switch Assy, Windshield Wiper
84650D Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL)
84718 Switch, Transmission Shift Main
84810 Switch Assy, Power Window Regulator
84810D Switch Assy, Power Window Regulator, Rear
84840G Switch Assy, Back Door Opener
84870A Switch Assy, Outer Mirror
84895 Switch, Ventilator
84920 Switch Assy, Power Seat
84921A Knob, Power Seat Switch (FOR RECLINING)
84921B Knob, Power Seat Switch (FOR SLIDE & VERTICAL)
84922C Switch, Front Power Seat, LH
84975 Switch, Trip
85530C Socket Assy, Power Outlet, Center
85530E Socket Assy, Power Outlet, NO.3
85535D Cover, Power Outlet Socket, Center
85535E Cover, Power Outlet Socket, NO.2
85539 Label, Power Outlet Notice
85539B Label, Power Outlet Notice, Center
85915E Relay
85916L Relay, Rear Fog Lamp
85917C Relay, Solar
85924 Relay, Ignition Control
85926 Relay, Headlamp Dimmer
85927 Relay, Cooling Fan
85927A Relay, Cooling Fan, NO.2
85927B Relay, Cooling Fan, NO.3
85940 Relay Assy, Windshield Wiper
87166A Computer, Solar Battery Airconditioner Blower Vent
88790F Thermistor Assy
89120A Sensor, Automatic Light Control
89221 Computer, Multiplex Network Body
89465 Sensor, Oxygen
89467C Sensor, Air Fuel Ratio, NO.2
89530C Computer Assy, Transmission Control
89530H Relay, Transaxle Parking Look Control
895A0A Computer Assy, Stop Lamp Control
89611 Switch, Push Start
89615 Sensor, Knock Control
89650 Computer Assy, Power Steering
89681A Computer, Power Management Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
