Toyota Carina

1970-12 → 1977-07 · chassis TA1# · catalogue 221210 · General

Discontinued model Data version 1977-09

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Carburetor Assembly

6 part groups · 6 illustrations

Illustrations

Figure MF0526B

MF0526B 1970-12 → 1973-03

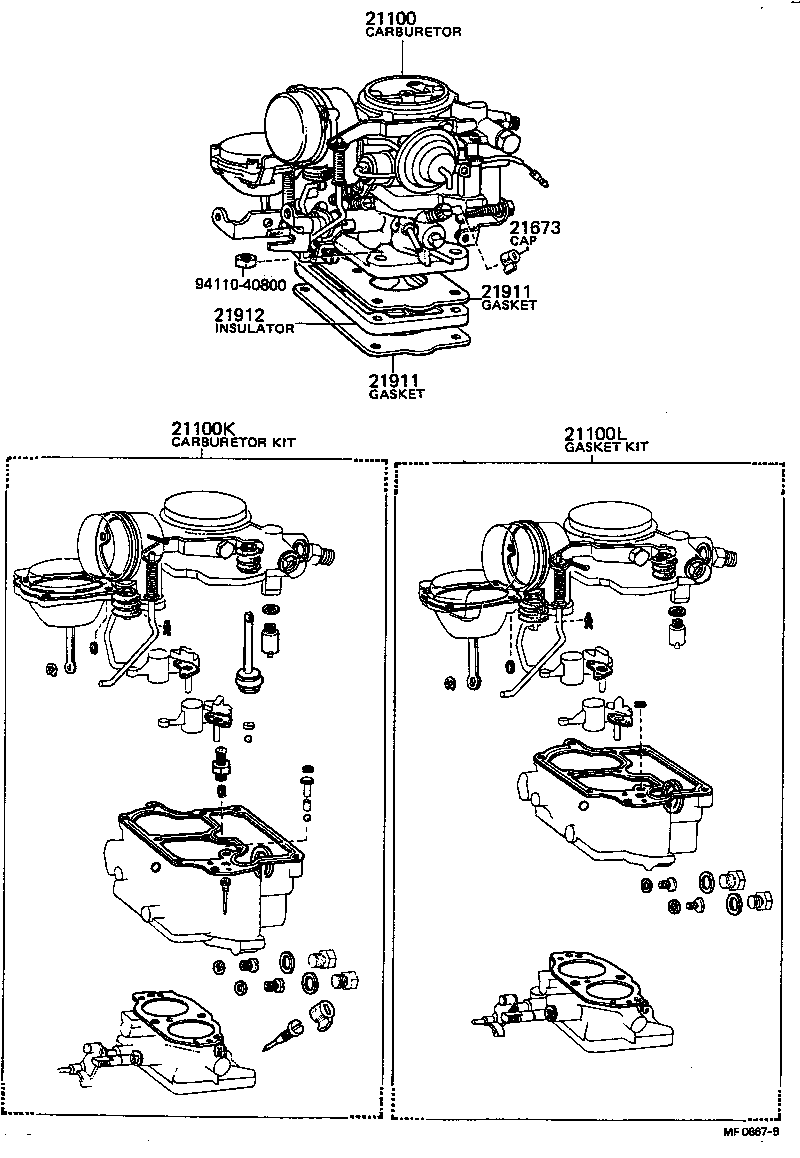

Figure MF0867B

MF0867B 1973-04 → 1973-12

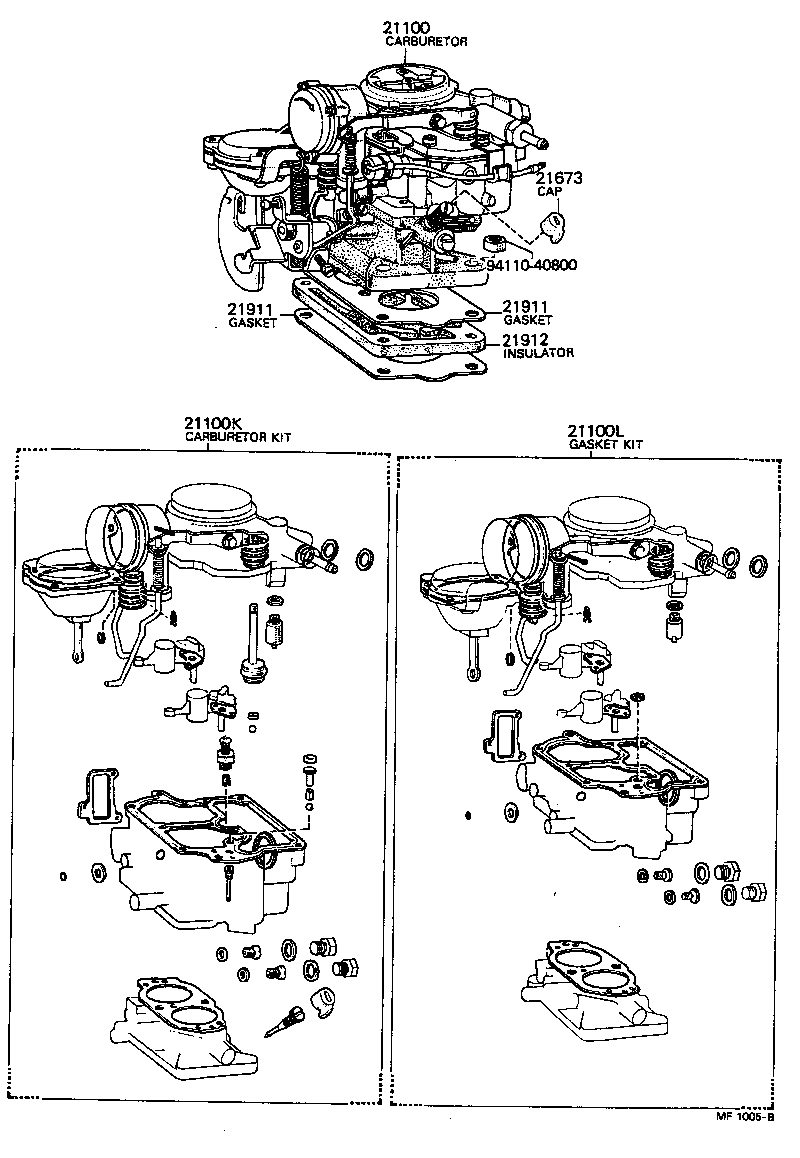

Figure MF1005B

MF1005B 1974-01 → 1975-09

Figure MF1388

MF1388 1975-10 → 1977-07

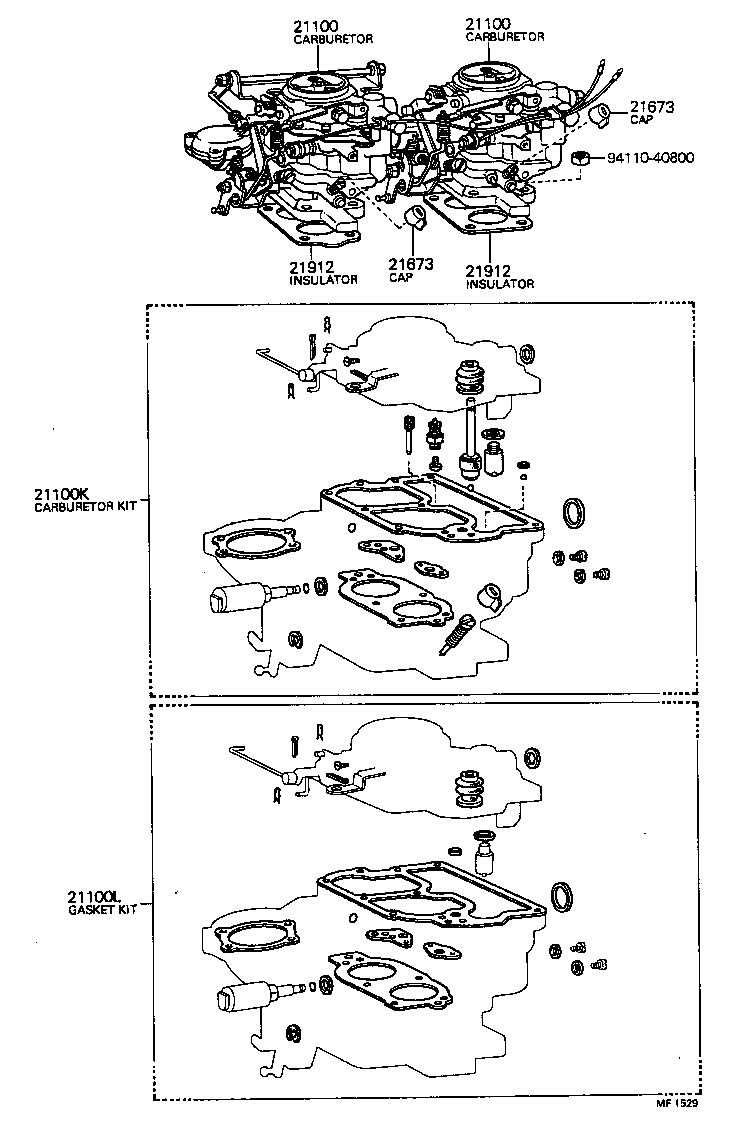

Figure MF1529

MF1529 1972-08 → 1973-12

Figure MF1006C

MF1006C 1974-01 → 1977-07

Part groups

PNC	Description
21100	Carburetor Assy
21100K	Carburetor Kit
21100L	Gasket Kit, Carburetor
21673	Cap, Idle Limit
21911	Gasket, Carburetor
21912	Insulator, Carburetor Heat

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
