Toyota Carina

1970-12 → 1977-07 · chassis TA1# · catalogue 221210 · General

Discontinued model Data version 1977-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood & Front Fender

25 part groups · 3 illustrations

Illustrations

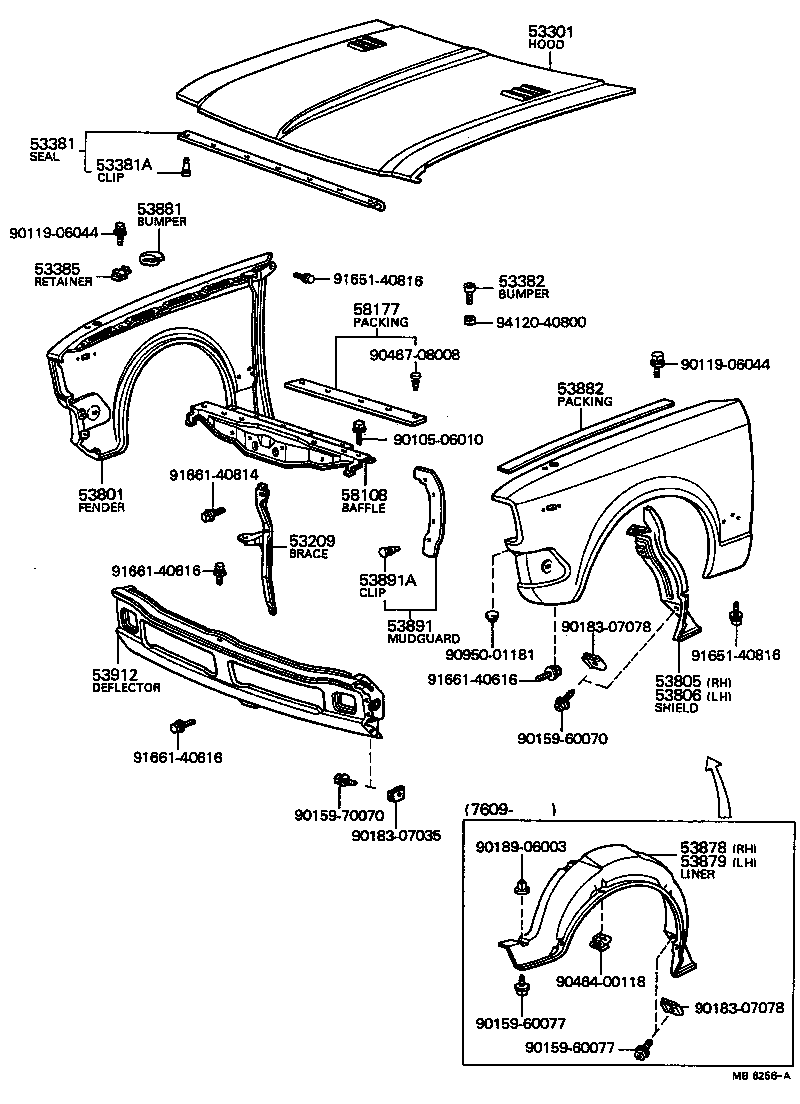

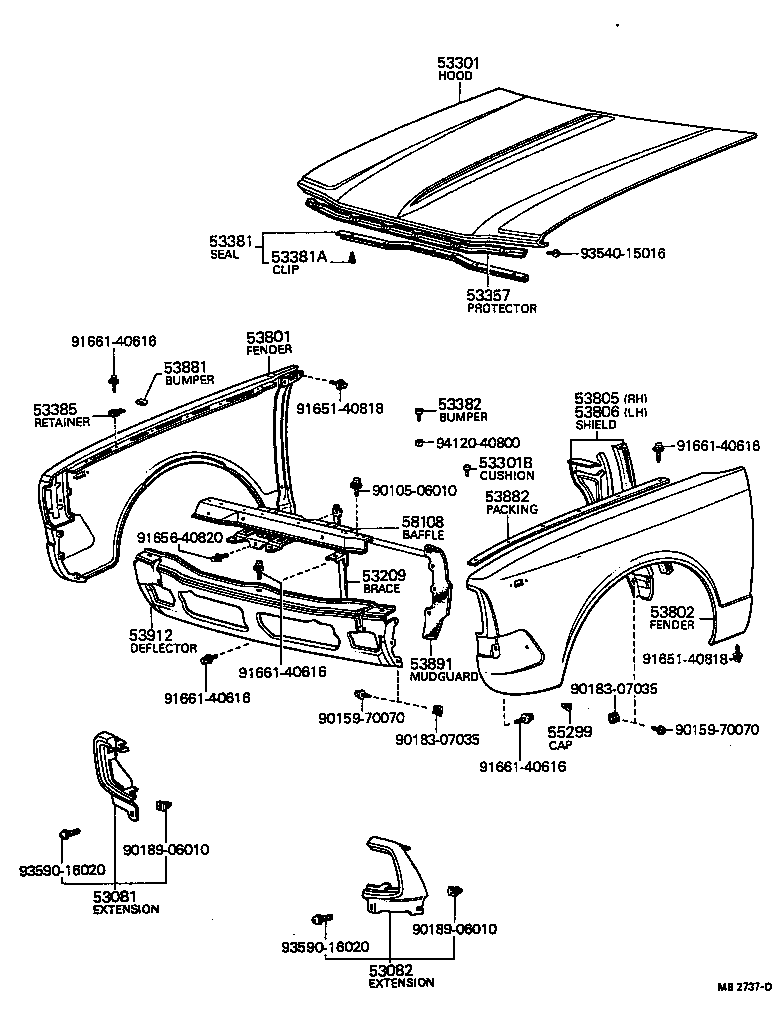

Figure MB1473E MB1473E 1970-12 → 1972-07 Figure MB2737D MB2737D 1972-08 → 1975-09 Figure MB6256A MB6256A 1975-10 → 1977-07

Part groups

PNCDescription
53081 Extension Sub-assy, Front Fender, RH
53082 Extension Sub-assy, Front Fender, LH
53135 Shim, Headlamp Door
53209 Brace Sub-assy, Hood Lock
53301 Hood Sub-assy
53301B Cushion, Hood Bumper
53357 Protector, Hood Inner
53381 Seal, Hood TO Radiator Support
53381A Clip(FOR HOOD TO RADIATOR SUPPORT SEAL)
53382 Bumper, Hood, Front
53385 Retainer, Hood, Bumper
53801 Fender Sub-assy, Front RH
53802 Fender Sub-assy, Front LH
53805 Shield Sub-assy, Front Fender Splash, RH
53806 Shield Sub-assy, Front Fender Splash, LH
53878 Liner, Front Fender, RH
53879 Liner, Front Fender, LH
53881 Bumper, Fender TO Hood
53882 Packing, Front Fender Main
53884 Seal, Front Fender Splash Shield, RH
53891 Mudguard, Front Fender TO Side Baffle
53891A Clip(FOR FRONT FENDER MUDGUARD)
53912 Deflector, Front Bumper Stone
58108 Baffle Sub-assy, Radiator Upper
58177 Packing, Radiator Baffle
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
