Factory parts data · Europe

Toyota Carina

1970-12 → 1977-07 · chassis TA1# · catalogue 221210 · General

Discontinued model Data version 1977-09

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cowl Ventilator

4 part groups · 2 illustrations

Illustrations

Figure MB5113C

MB5113C 1970-12 → 1977-07

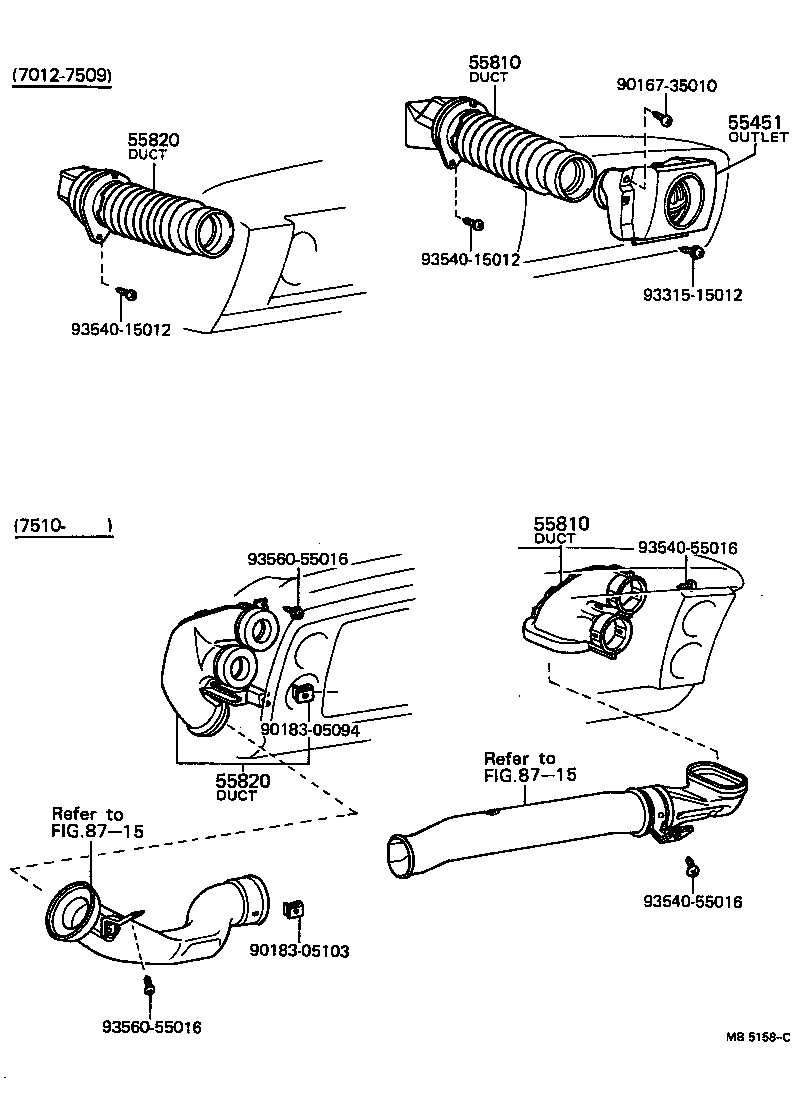

Figure MB5158C

MB5158C 1970-12 → 1977-07

Part groups

PNC	Description
55451	Outlet, Air Outer, RH
55452	Outlet, Air Outer, LH
55810	Duct Assy, Side Ventilator, RH
55820	Duct Assy, Side Ventilator, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
