Toyota Carina

1970-12 → 1977-07 · chassis TA1# · catalogue 221210 · General

Discontinued model Data version 1977-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Seat & Seat Track

21 part groups · 2 illustrations

Illustrations

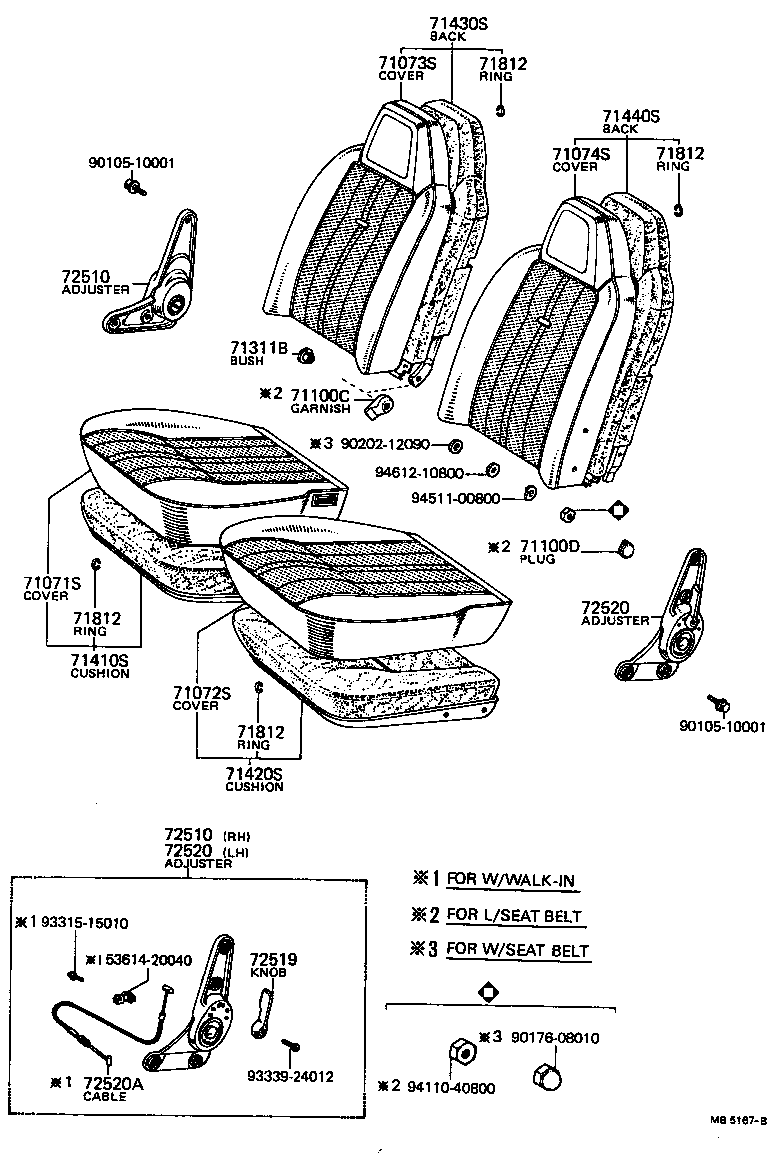

Figure MB3883B MB3883B 1970-12 → 1975-09 Figure MB5167B MB5167B 1975-10 → 1977-07

Part groups

PNCDescription
71071S Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71100C Garnish, Front Seat Hinge
71100D Plug, Hole
71311B Bush (FOR FRONT SEAT HINGE PIN)
71410S Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
71420S Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
71430S Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
71440S Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
71812 Clip (FOR FRONT SEAT CUSHION COVER)
71812A Ring, Hog, Small (FOR FRONT SEAT)
72159 Plate, Seat Track Lower Rail, NO.1
72501 Stopper Assy, Front Seatback, RH
72501A Spring, Tension(FOR FRONT SEATBACK STOPPER)
72502 Stopper Assy, Front Seatback, LH
72510 Adjuster Assy, Reclining Seatback, RH
72519 Knob, Reclining Seatback Adjusting Arm
72520 Adjuster Assy, Reclining Seatback, LH
72520A Cable, Adjuster TO Seat Track
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
