Toyota Carina

1970-12 → 1977-07 · chassis TA1# · catalogue 221210 · General

Discontinued model Data version 1977-09

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Speaker

4 part groups · 3 illustrations

Illustrations

Figure ME0824E

ME0824E 1970-12 → 1975-09

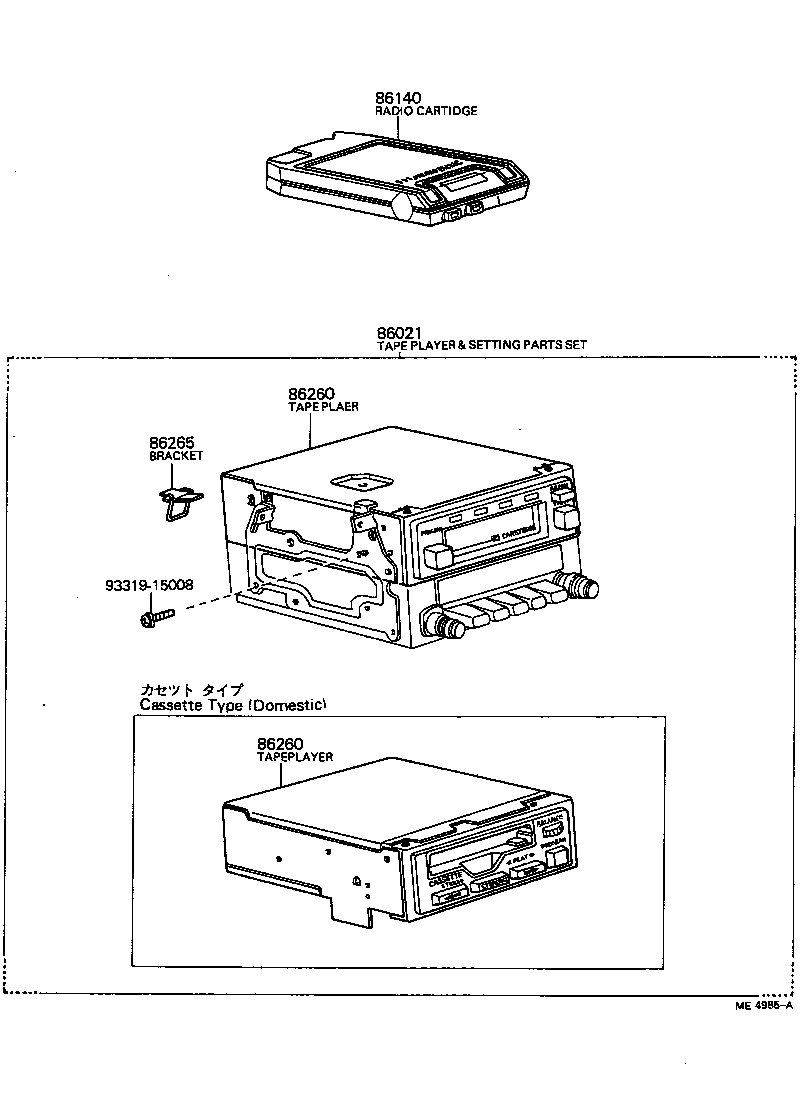

Figure ME4985A

ME4985A 1975-10 → 1977-07

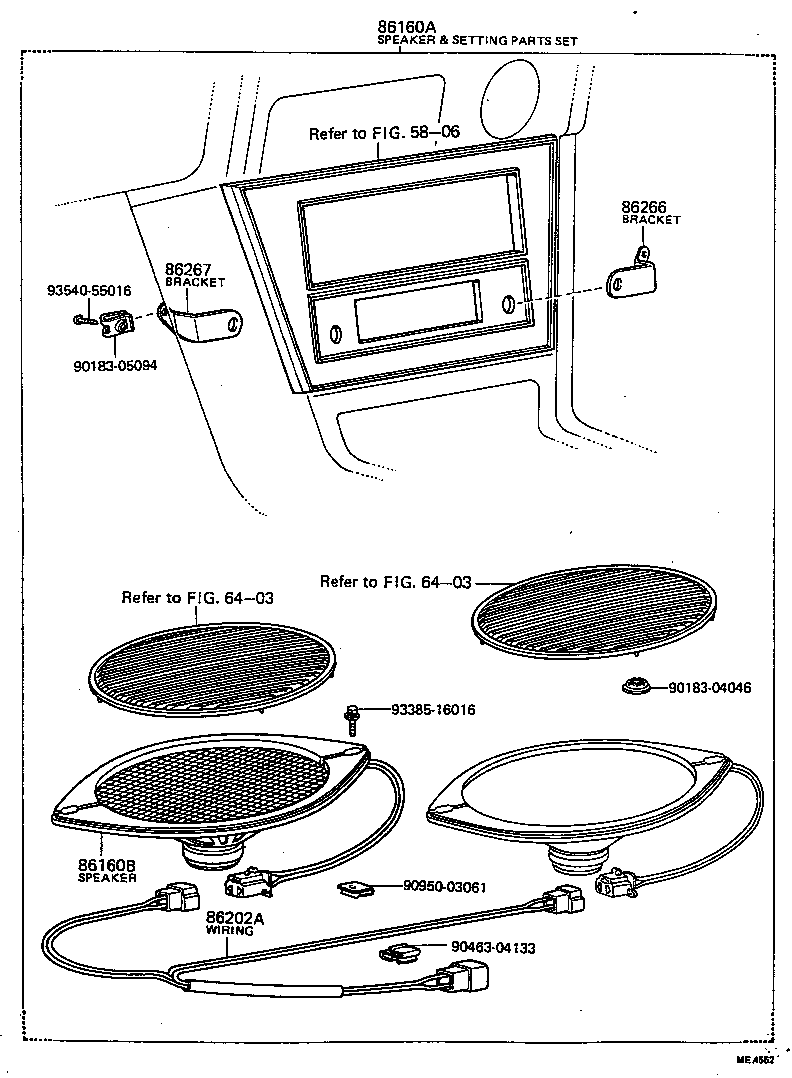

Figure ME4552

ME4552 1975-10 → 1977-07

Part groups

PNC	Description
86160	Speaker Assy, Front NO.1
86160A	Speaker Set, Front
86160B	Speaker Assy, Rear
86202A	Wire, Speaker, NO.2

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
