Toyota Carina
1981-08 → 1983-09 · chassis TA6#,CA60 · catalogue 221230 · General
Discontinued model
Data version 1984-02

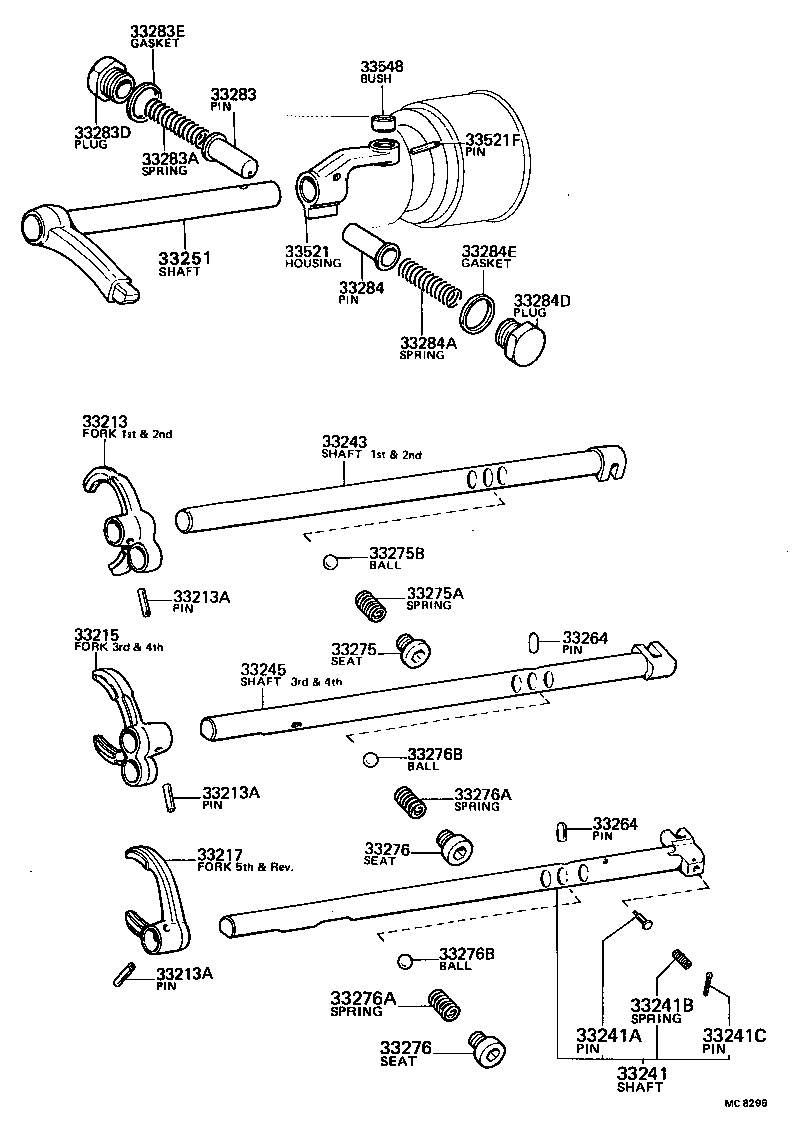

Gear Shift Fork & Lever Shaft (MTM)
34 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 33211 | Fork, Reverse Shift |
| 33213 | Fork, 1ST & 2ND Shift |
| 33213A | Pin, Slotted Spring(FOR SHIFT FORK SET) |
| 33215 | Fork, 3RD & 4TH Shift |
| 33217 | Fork, 5TH & Reverse Shift |
| 33241 | Shaft, Reverse Shift Fork |
| 33241A | Pin, Reverse Shaft Restrict |
| 33241B | Spring, Compression(FOR REVERSE SHAFT RESTRICT PIN) |
| 33241C | Pin, Cotter(FOR REVERSE SHAFT RESTRICT PIN) |
| 33243 | Shaft, 1ST & 2ND Shift Fork |
| 33245 | Shaft, 3RD & 4TH Shift Fork |
| 33251 | Lever, Shift & Select |
| 33264 | Pin, OR Ball, Shift Interlock, NO.1 |
| 33275 | Seat, Shift Detent Ball Spring, NO.1 |
| 33275A | Spring, Compression (FOR SHIFT DETENT BALL LOW SIDE) |
| 33275B | Ball, Shaft Detent |
| 33276 | Seat, Shift Detent Ball Spring, NO.2 |
| 33276A | Spring, Compression, NO.2 (FOR SHIFT DETENT BALL) |
| 33276B | Ball, Shift Detent, NO.2 |
| 33280 | Pin Assy, Reverse Restrict |
| 33280A | Gasket, Reverse Restrict Pin |
| 33283 | Pin, Reverse Restrict, NO.1 |
| 33283A | Spring, Compression (FOR REVERSE RESTRICT PIN) |
| 33283D | Plug (FOR REVERSE RESTRICT PIN) |
| 33283E | Gasket (FOR REVERSE RESTRICT PIN) |
| 33283F | Pin, Reverse Restrict |
| 33283G | Pin, Slotted Spring (FOR REVERSE RESTRICT PIN) |
| 33284 | Pin, Low Restrict |
| 33284A | Spring, Compression (FOR LOW RESTRICT PIN) |
| 33284D | Plug (FOR LOW RESTRICT PIN) |
| 33284E | Gasket (FOR LOW RESTRICT PIN) |
| 33521 | Housing, Shift Lever |
| 33521F | Pin OR Bolt (FOR SHIFT LEVER HOUSING) |
| 33548 | Bush, Shift Lever |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
