Toyota Carina
1981-08 → 1983-09 · chassis TA6#,CA60 · catalogue 221230 · General
Discontinued model
Data version 1984-02

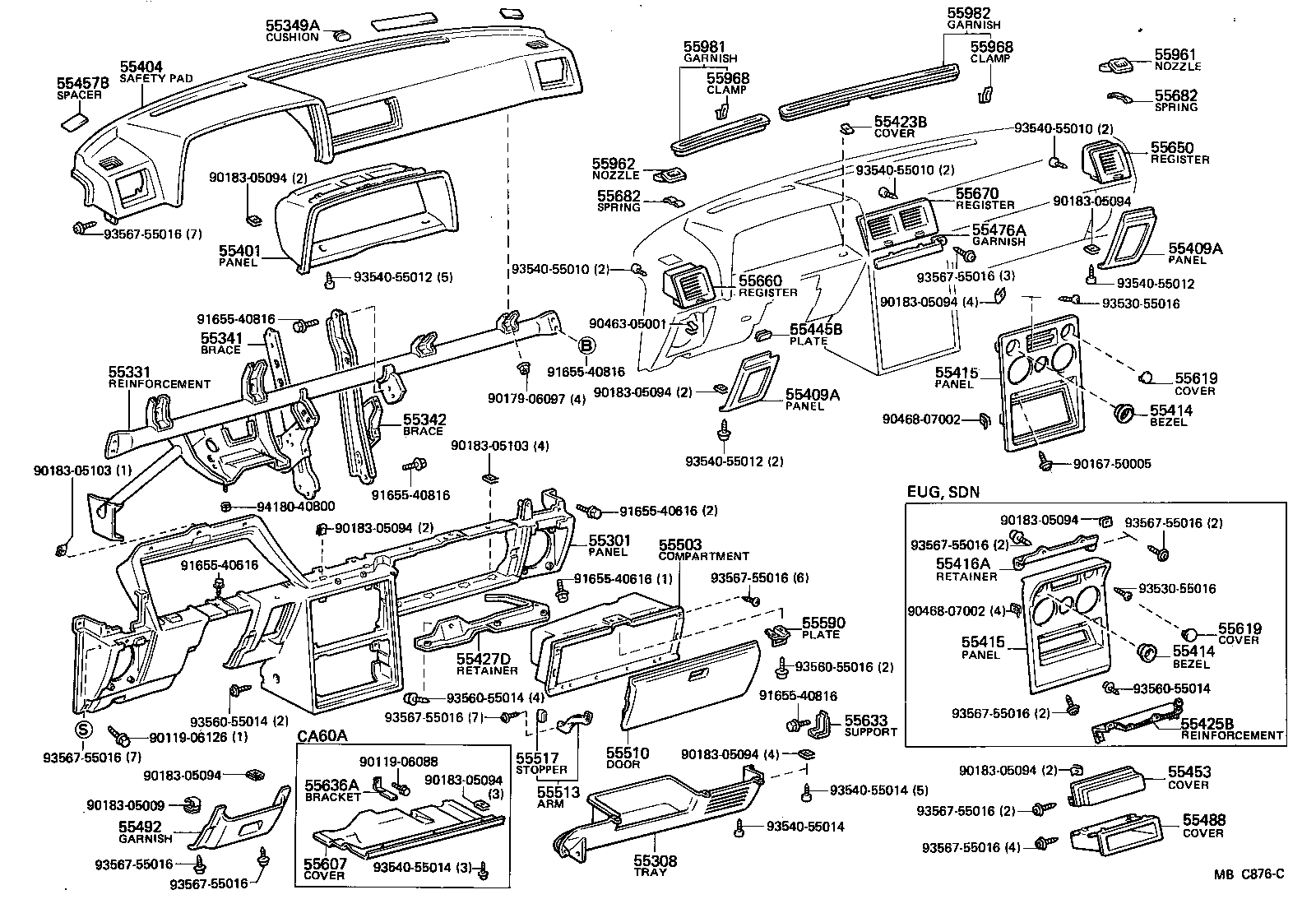

Instrument Panel & Glove Compartment
41 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 55301 | Panel Sub-assy, Instrument |
| 55308 | Tray Sub-assy, Instrument Panel Under |
| 55331 | Reinforcement, Instrument Panel |
| 55341 | Brace, Instrument Panel, NO.1 |
| 55342 | Brace, Instrument Panel, NO.2 |
| 55349A | Cushion, Instrument Panel |
| 55401 | Panel Sub-assy, Instrument Cluster Finish |
| 55404 | Safety Pad Sub-assy, Instrument Panel, Upper |
| 55409A | Panel Sub-assy, Instrument Panel Speaker |
| 55414 | Bezel, Cigar Lighter Hole |
| 55415 | Panel, Instrument Cluster Finish, Center |
| 55416A | Retainer, Meter Hood, NO.1 |
| 55423B | Cover, Instrument Cluster Finish Panel |
| 55425B | Reinforcement, Instrument Cluster Finish Panel |
| 55427D | Retainer, Instrument Finish Panel, Lower, NO.1 |
| 55445B | Plate, Instrument Panel Finish |
| 55453 | Cover, Radio Tuner Opening |
| 55457B | Spacer, Instrument Panel Safety Pad |
| 55476A | Garnish, Instrument Cluster Finish Panel, NO.3 |
| 55488 | Cover, Stereo Opening |
| 55492 | Garnish OR Safety Pad, Lower, RH |
| 55503 | Compartment Sub-assy, Glove |
| 55510 | Door Assy, Glove Compartment |
| 55513 | Arm, Glove Compartment Door Check |
| 55517 | Stopper, Glove Compartment Door Arm |
| 55539B | Cover, Spare Switch Hole, NO.2 |
| 55547 | Cover, Remote Control Mirror Hole |
| 55590 | Plate Assy, Grove Compartment Door Lock Striker |
| 55607 | Cover Sub-assy, Instrument Panel Under, NO.2 |
| 55619 | Cover, Switch Hole |
| 55633 | Support, Instrument Panel Under Tray, NO.2 |
| 55636A | Bracket, Instrument Panel Under Cover, NO.2 |
| 55650 | Register Assy, Instrument Panel, NO.1 |
| 55660 | Register Assy, Instrument Panel, NO.2 |
| 55670 | Register Assy, Instrument Panel, NO.3 |
| 55682 | Spring, Instrument Panel Register Support |
| 55961 | Nozzle, Side Defroster, NO.1 |
| 55962 | Nozzle, Side Defroster, NO.2 |
| 55968 | Clamp, Defroster Nozzle |
| 55981 | Garnish, Defroster Nozzle, NO.1 |
| 55982 | Garnish, Defroster Nozzle, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
