Toyota Carina

1981-08 → 1983-09 · chassis TA6#,CA60 · catalogue 221230 · General

Discontinued model Data version 1984-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Combination Lamp

19 part groups · 3 illustrations

Illustrations

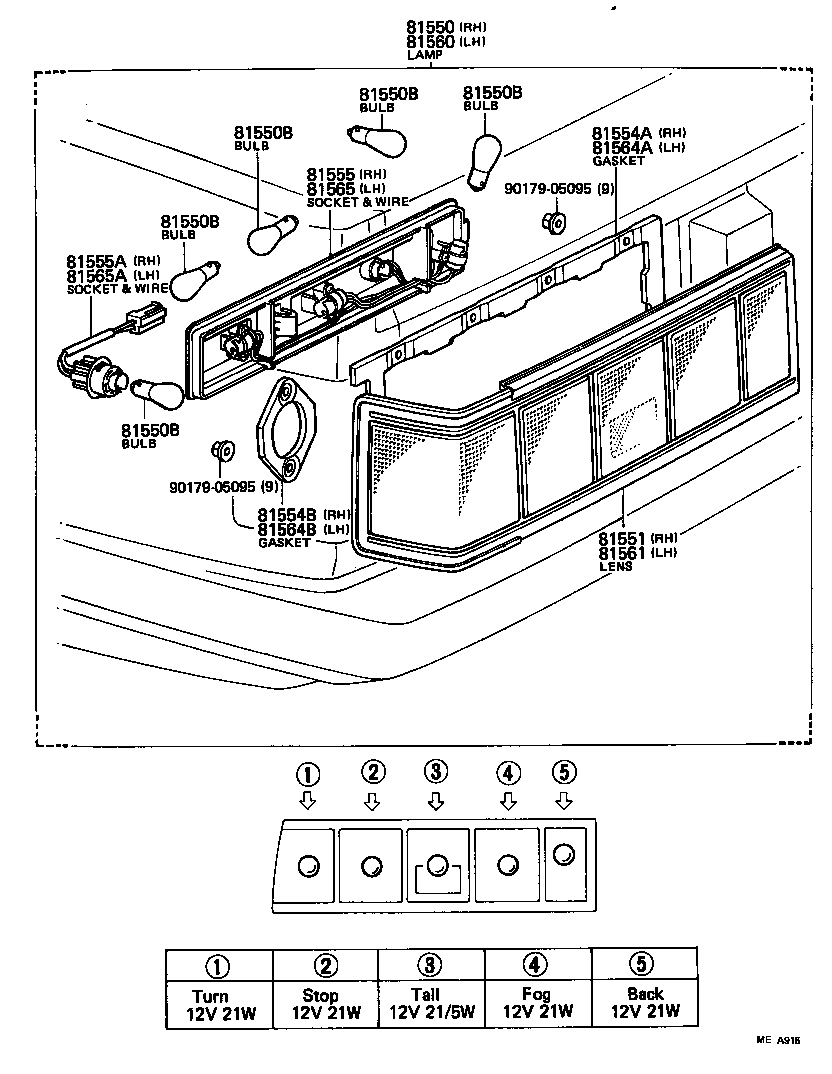

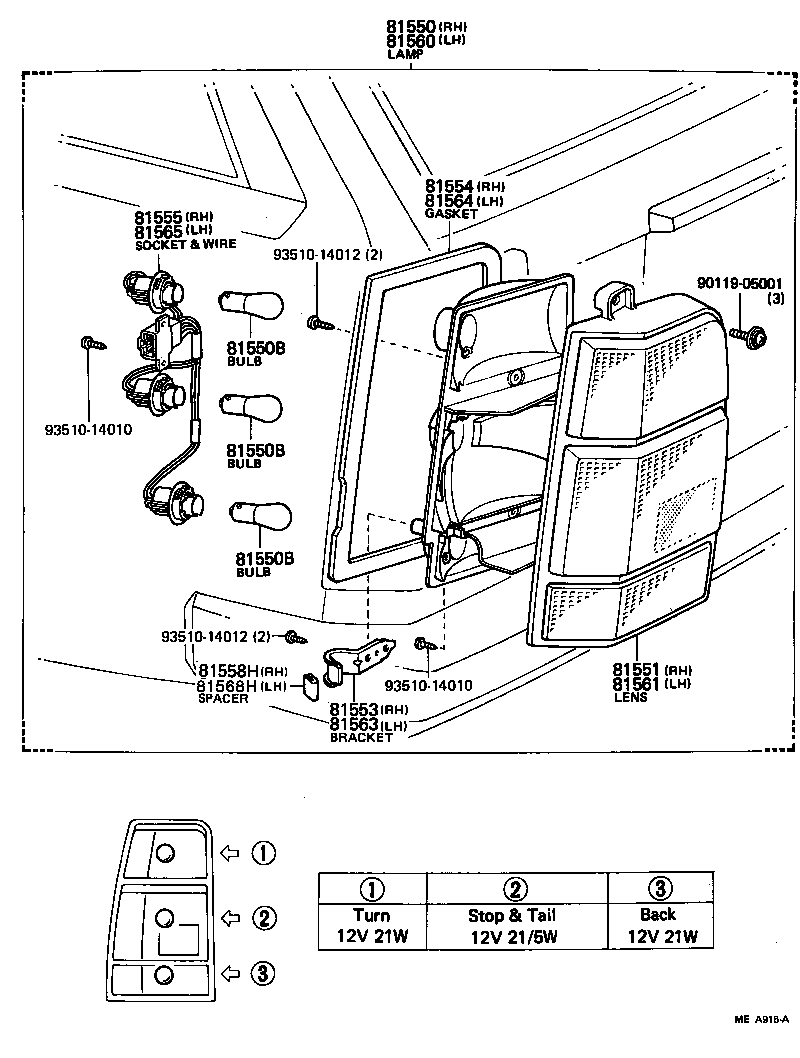

Figure MEA914 MEA914 1981-08 → — Figure MEA915 MEA915 1981-08 → — Figure MEA916A MEA916A 1981-08 → —

Part groups

PNCDescription
81550 Lamp Assy, Rear Combination, RH
81550B Bulb(FOR REAR COMBINATION LAMP)
81551 Lens, Rear Combination Lamp, RH
81553 Bracket, Rear Combination Lamp, NO.1 RH
81554 Gasket, Rear Combination Lamp Body, RH
81554A Gasket, Rear Combination Lamp Body, NO.1 RH
81554B Gasket, Rear Combination Lamp Body, NO.2 RH
81555 Socket & Wire Sub-assy, Rear Combination Lamp, RH
81555A Socket & Wire Sub-assy, Rear Combination Lamp, RH
81558H Spacer, Rear Combination Lamp, RH
81560 Lamp Assy, Rear Combination, LH
81561 Lens, Rear Combination Lamp, LH
81563 Bracket, Rear Combination Lamp, NO.1 LH
81564 Gasket, Rear Combination Lamp Body, LH
81564A Gasket, Rear Combination Lamp Body, NO.1 LH
81564B Gasket, Rear Combination Lamp Body, NO.2 LH
81565 Socket & Wire Sub-assy, Rear Combination Lamp, LH
81565A Socket & Wire Sub-assy, Rear Combination Lamp, LH
81568H Spacer, Rear Combination Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
