Toyota Carina

1981-08 → 1983-09 · chassis TA6#,CA60 · catalogue 221230 · General

Discontinued model Data version 1984-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

32 part groups · 8 illustrations

Illustrations

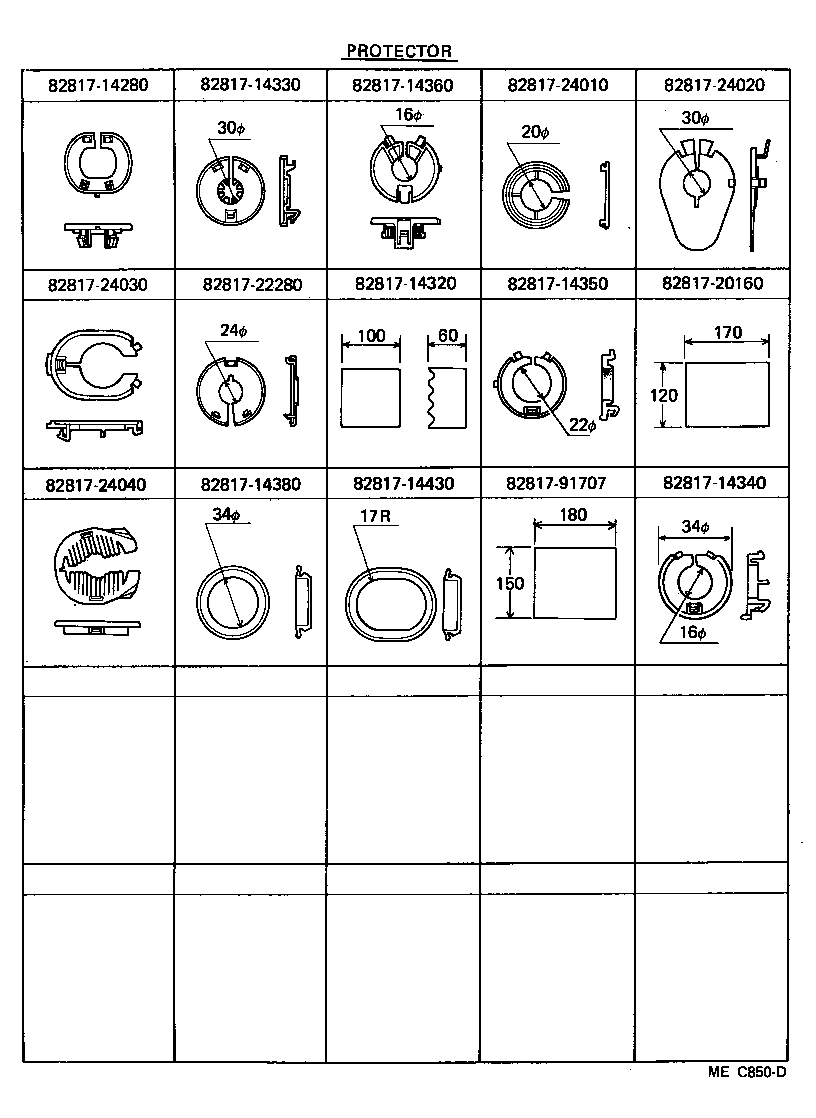

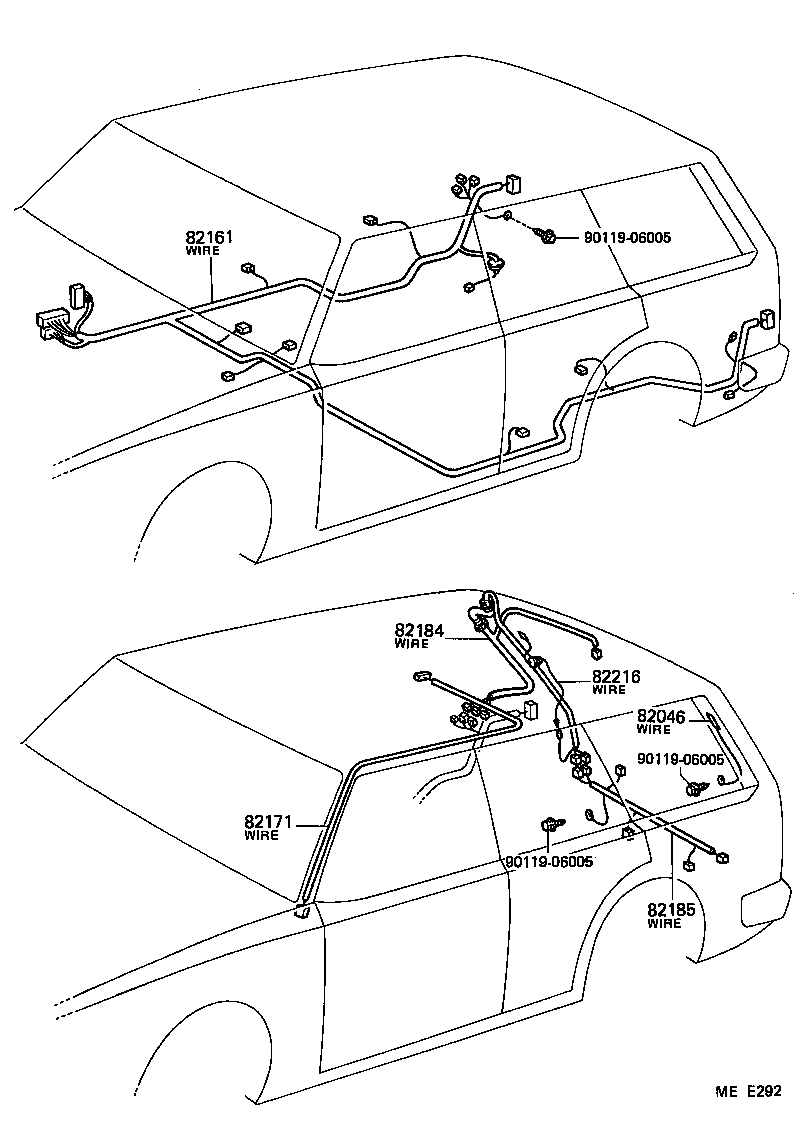

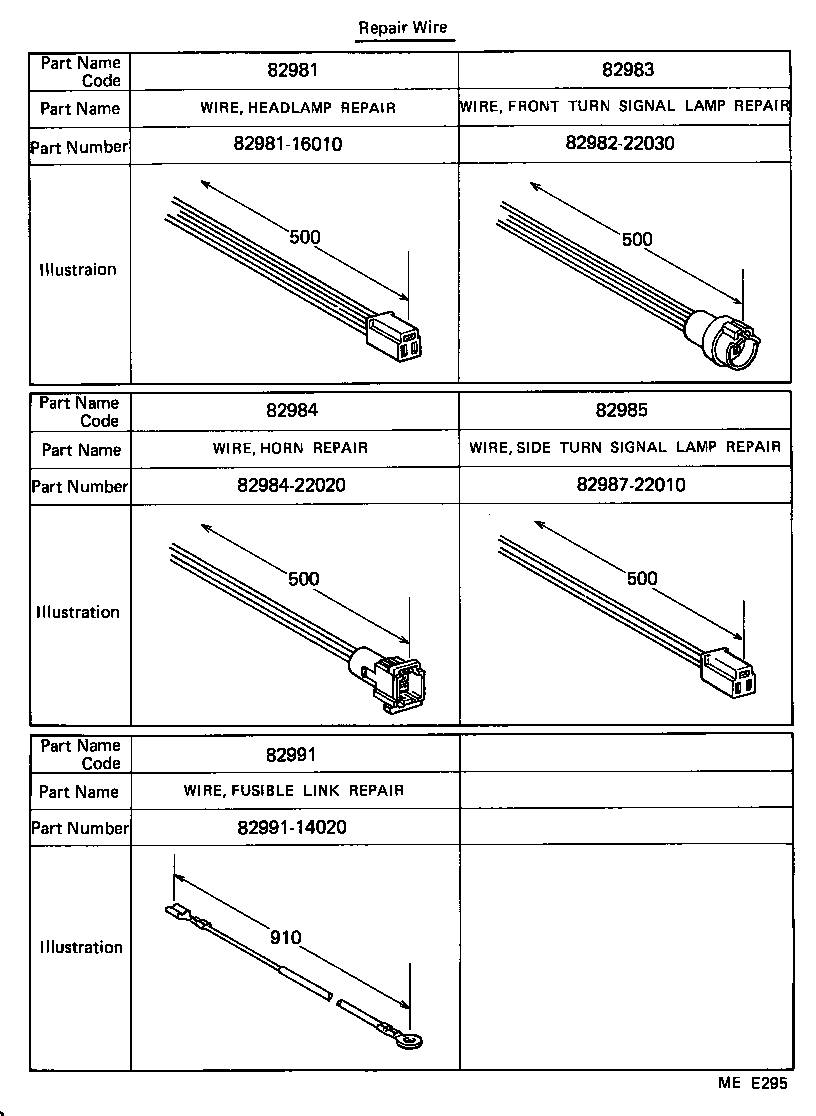

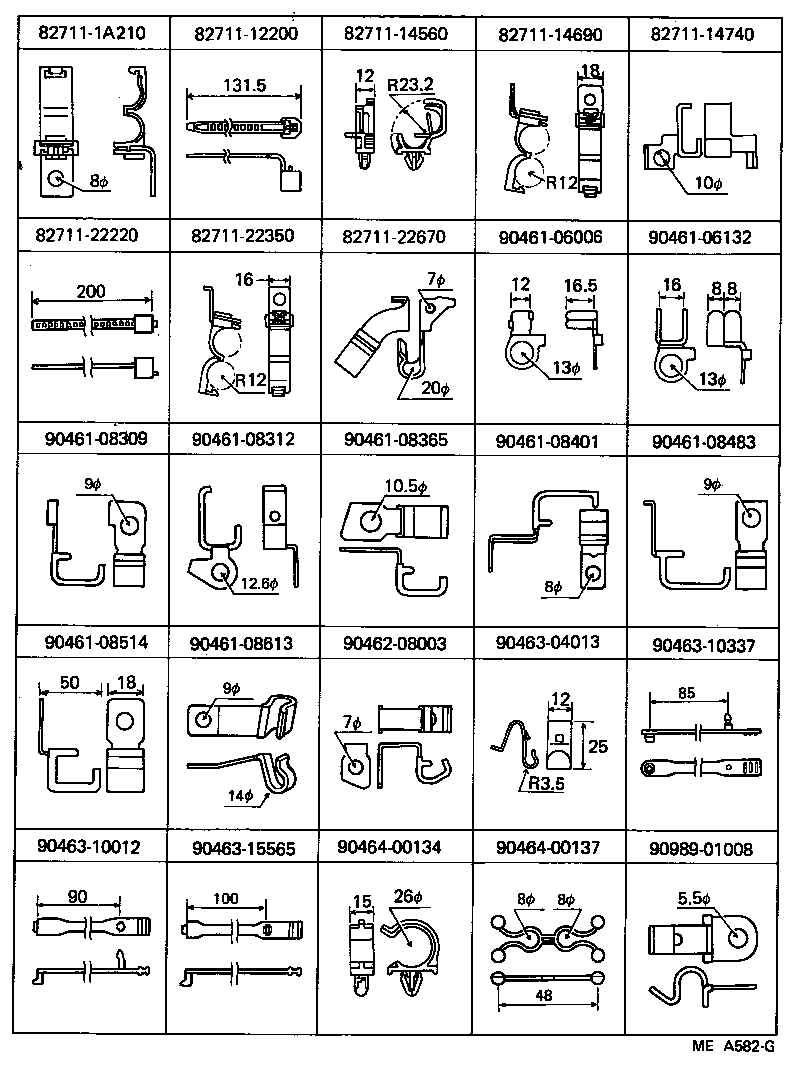

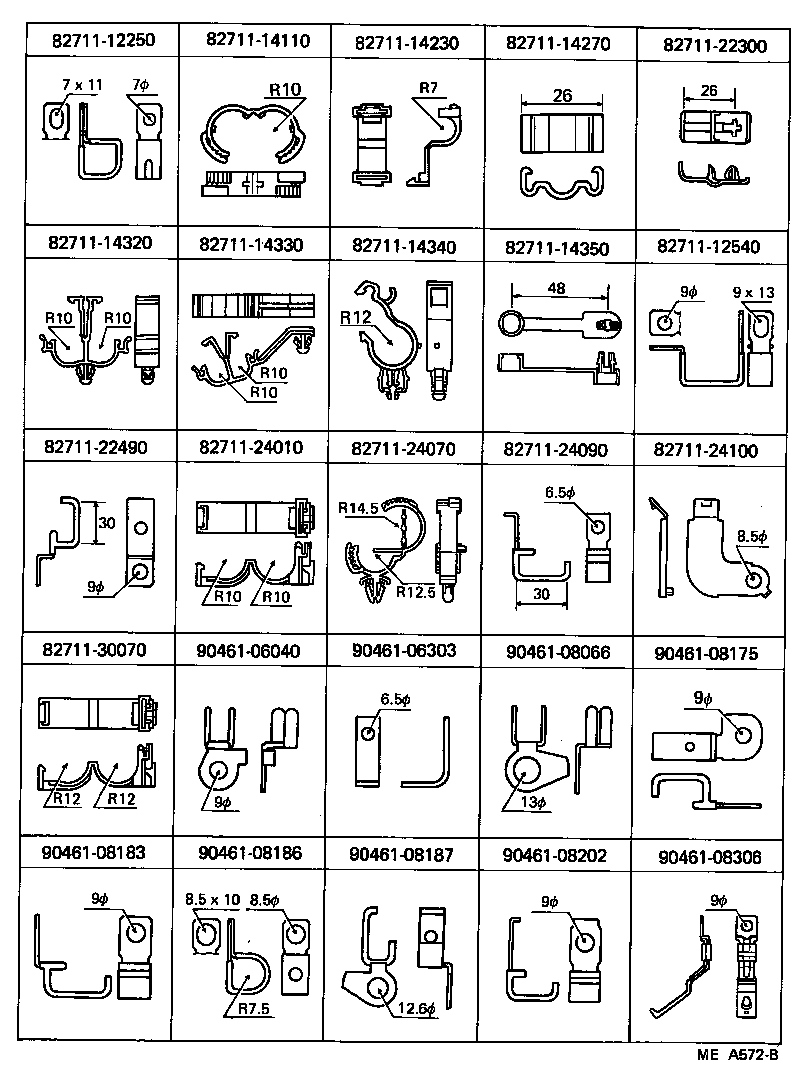

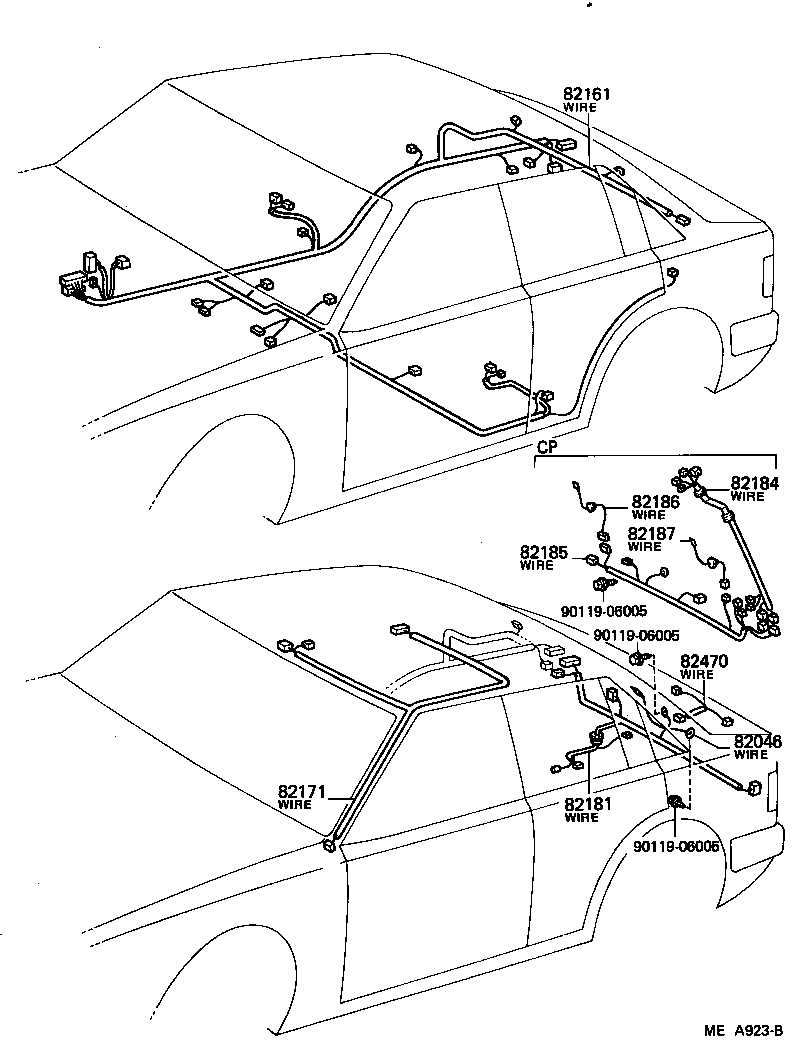

Figure MEA922F MEA922F 1981-08 → — Figure MEA923B MEA923B 1981-08 → — Figure MEE292 MEE292 1981-08 → — Figure MEE295 MEE295 1983-05 → — Figure MEC850D MEC850D 1981-08 → — Figure MEA572B MEA572B 1981-08 → — Figure MEA582G MEA582G 1981-08 → — Figure MED224C MED224C 1981-08 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82011 Wiring Assy, Brake Warning System
82031 Wire Sub-assy, Ignition Coil
82046 Wire Sub-assy, Rear Window Defogger Earth
82111 Wire, Engine Room Main
82121 Wire, Engine
82122 Wire, Engine, NO.2
82123 Wire, Engine, NO.3
82125 Wire, Transmission
82131 Wire, Cowl
82141 Wire, Instrument Panel
82161 Wire, Floor
82171 Wire, Roof, NO.1
82181 Wire, Luggage Room, NO.1
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82186 Wire, Rear Window, NO.1
82187 Wire, Rear Window, NO.2
82210D Fusible Link
82210E Fusible Link
82216 Wire, Rear Window Defogger
82241C Wire, Relay
82374 Wire, Washer
82470 Wire Assy, License Lamp Feed
82670 Block Assy, Junction, NO.1
82823 Cap, Terminal, NO.1
82823A Cap, Terminal, NO.2
82981 Wire, Headlamp Repair
82983 Wire, Front Turn Signal Lamp Repair
82984 Wire, Horn Repair
82985 Wire, Side Turn Signal Lamp Repair
82991 Wire, Fusible Link Repair
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
