Toyota Prius

2015-11 → 2022-11 · chassis ZVW50 · catalogue 222340 · General

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Pedal & Bracket

5 part groups · 4 illustrations

Illustrations

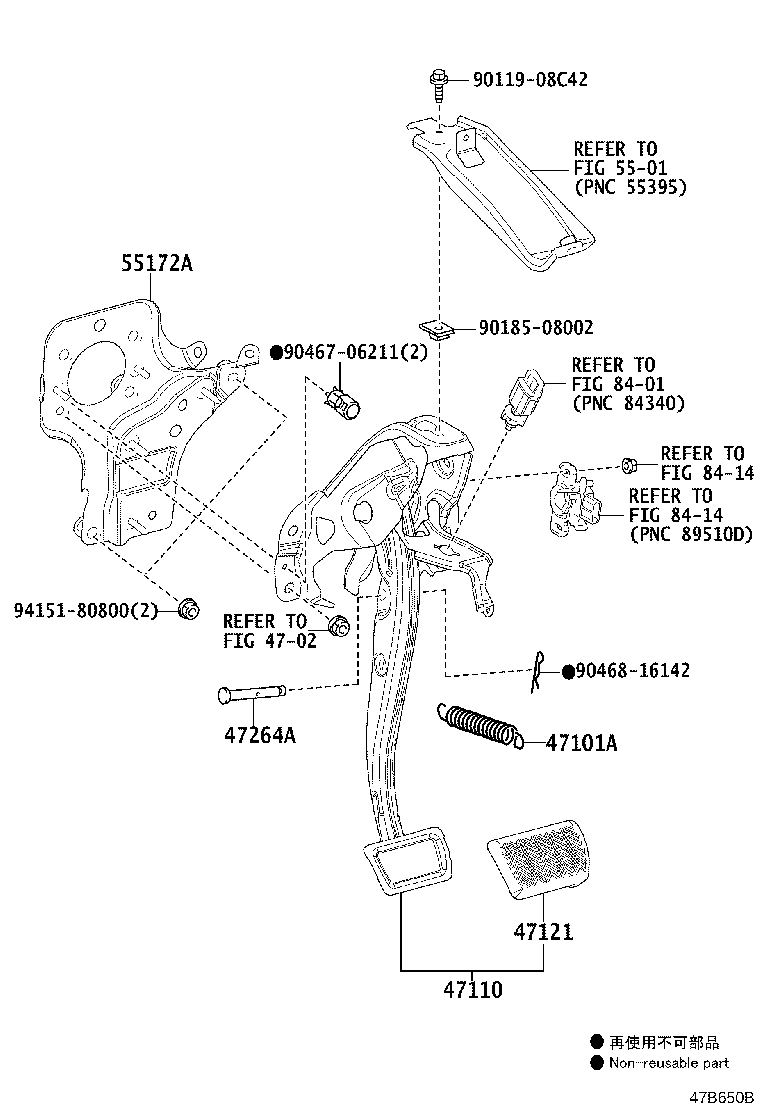

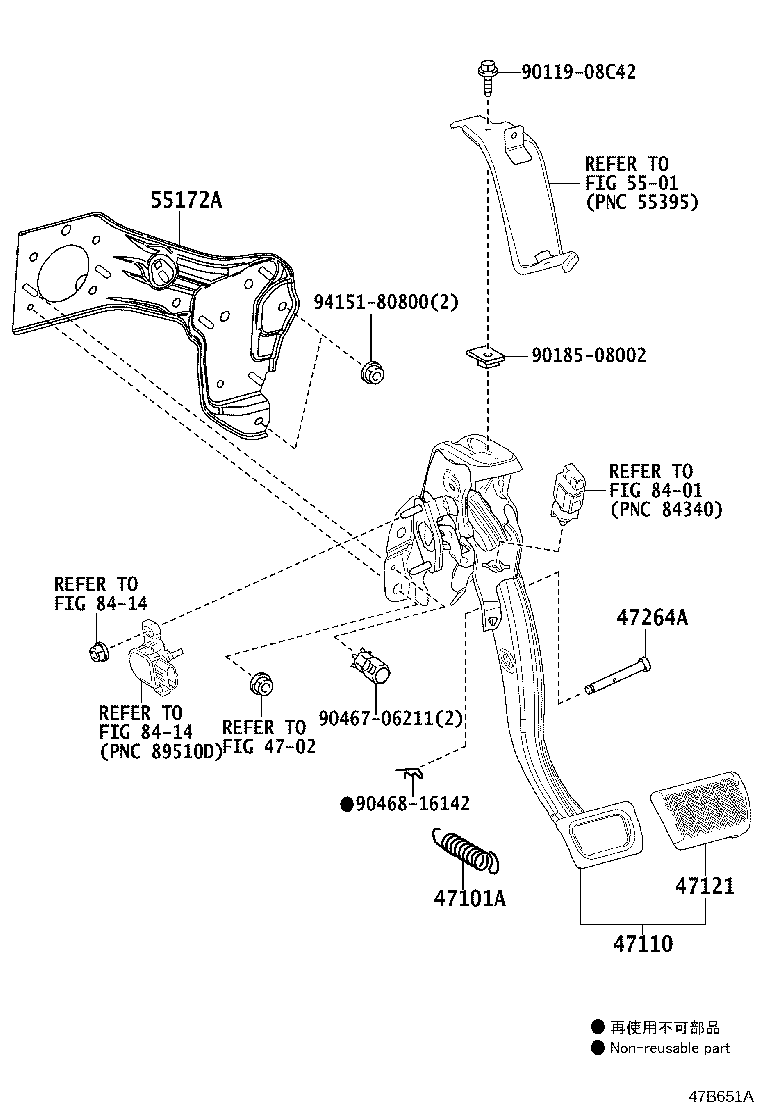

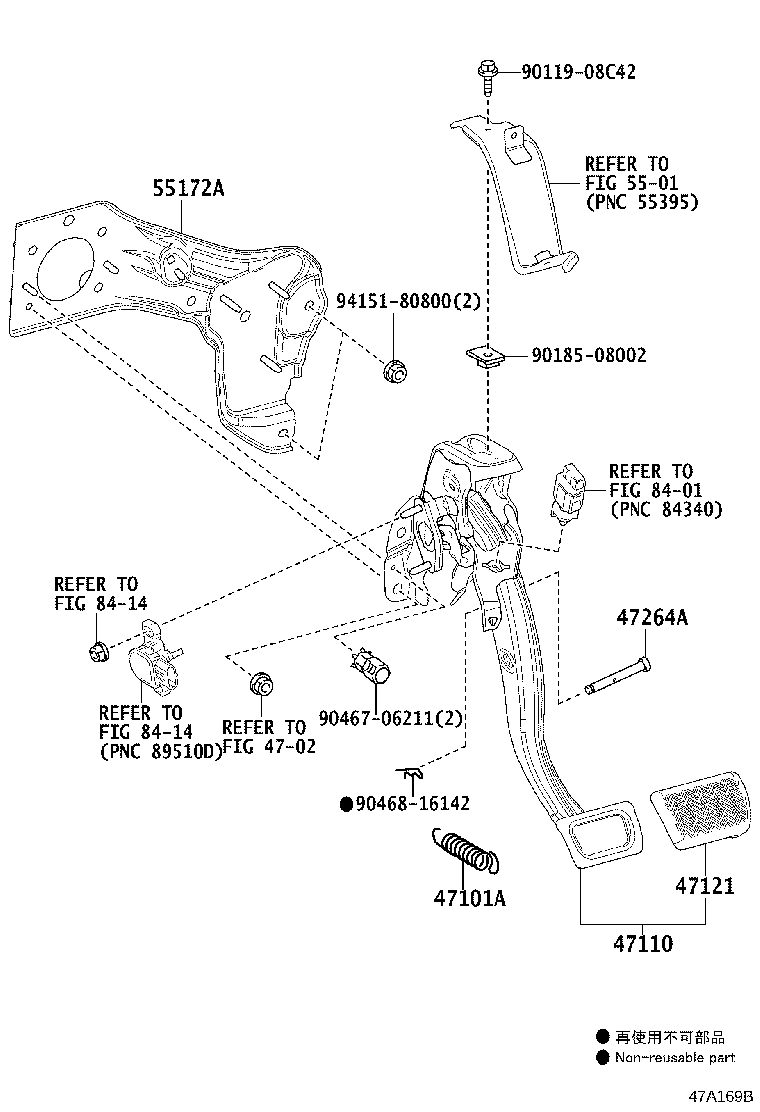

Figure 47A168C 47A168C 2015-11 → 2018-12 Figure 47B650B 47B650B 2018-12 → — Figure 47A169B 47A169B 2015-11 → 2018-12 Figure 47B651A 47B651A 2018-12 → —

Part groups

PNCDescription
47101A Spring(FOR BRAKE PEDAL RETURN)
47110 Support Assy, Brake Pedal
47121 Pad, Brake Pedal
47264A Pin(FOR PUSH ROD)
55172A Base, Brake Pedal Support
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
