Toyota Prius

2015-11 → 2022-11 · chassis ZVW50 · catalogue 222340 · General

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

7 part groups · 3 illustrations

Illustrations

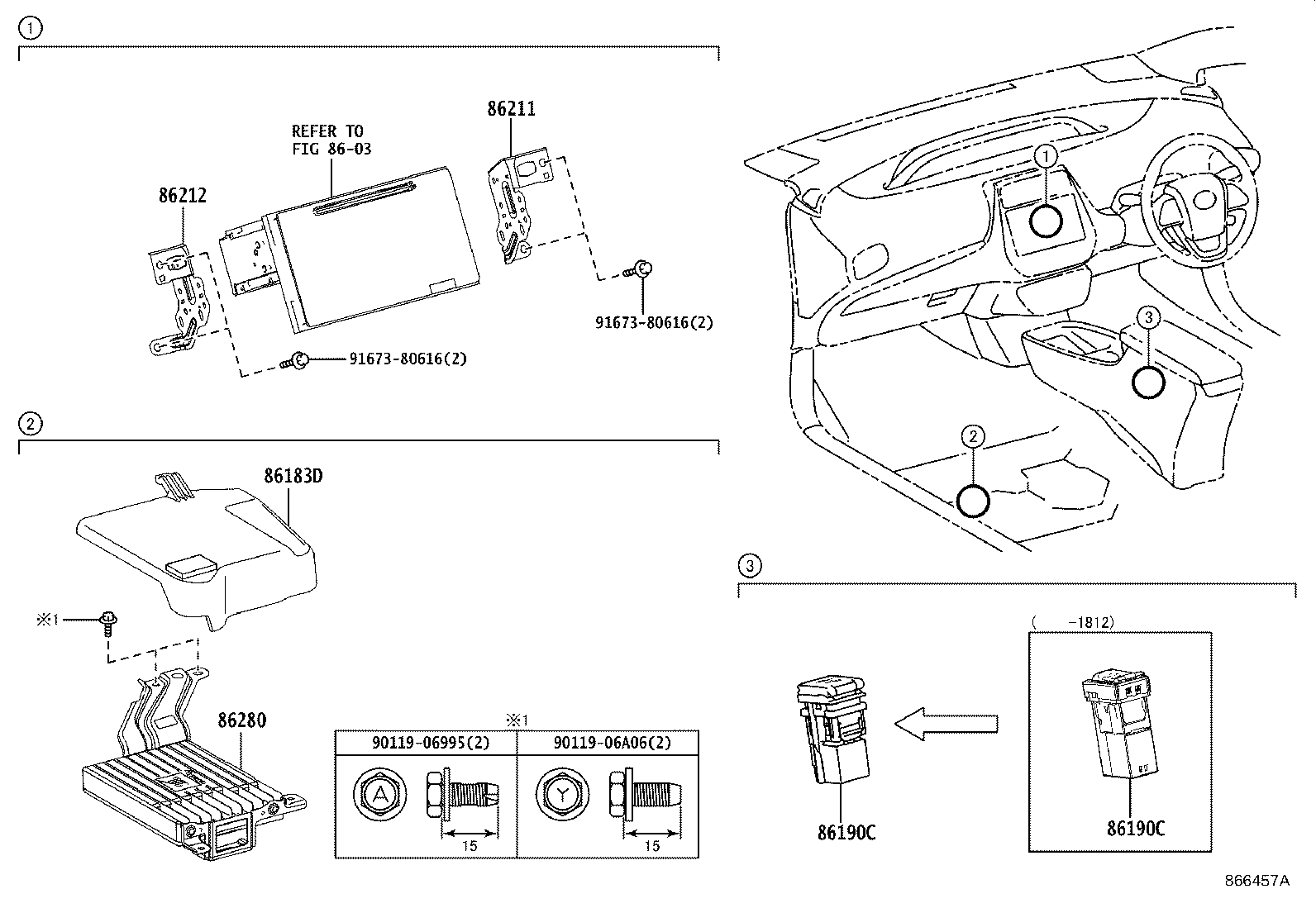

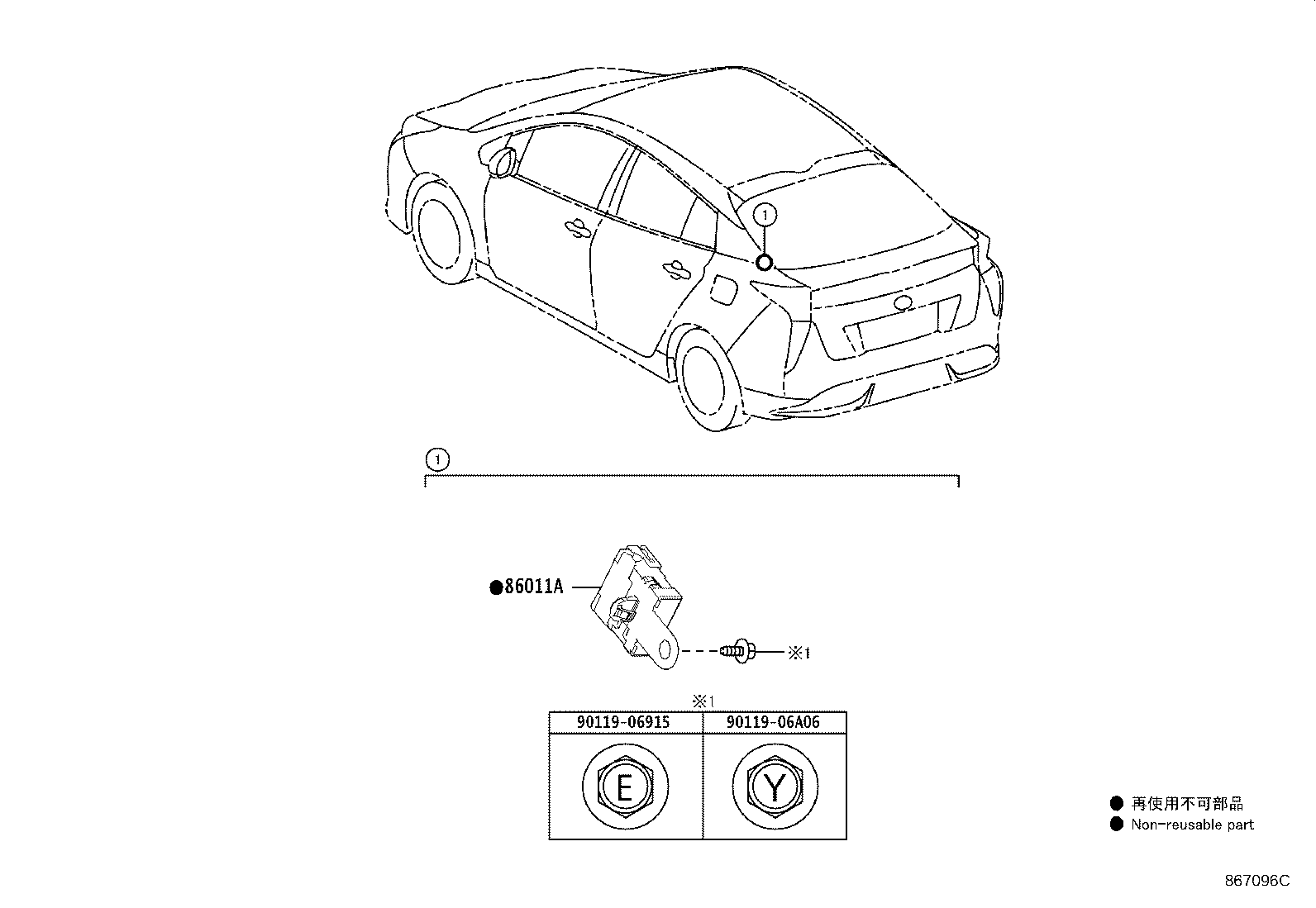

Figure 866458A 866458A 2015-11 → — Figure 866457A 866457A 2015-11 → — Figure 867096C 867096C 2015-11 → —

Part groups

PNCDescription
86011A Condenser, Radio Setting
86145 Connector, Antenna Male
86183D Cover, Audio Amplifier
86190C Adapter Assy, Stereo Jack, NO.1
86211 Bracket, Radio, NO.1
86212 Bracket, Radio, NO.2
86280 Amplifier Assy, Stereo Component
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
