Toyota Prius (CHINA)

2005-11 → 2009-04 · chassis NHW20 · catalogue 223310 · General

Discontinued model Data version 2009-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate (EXTERIOR & INTERIOR)

22 part groups · 3 illustrations

Illustrations

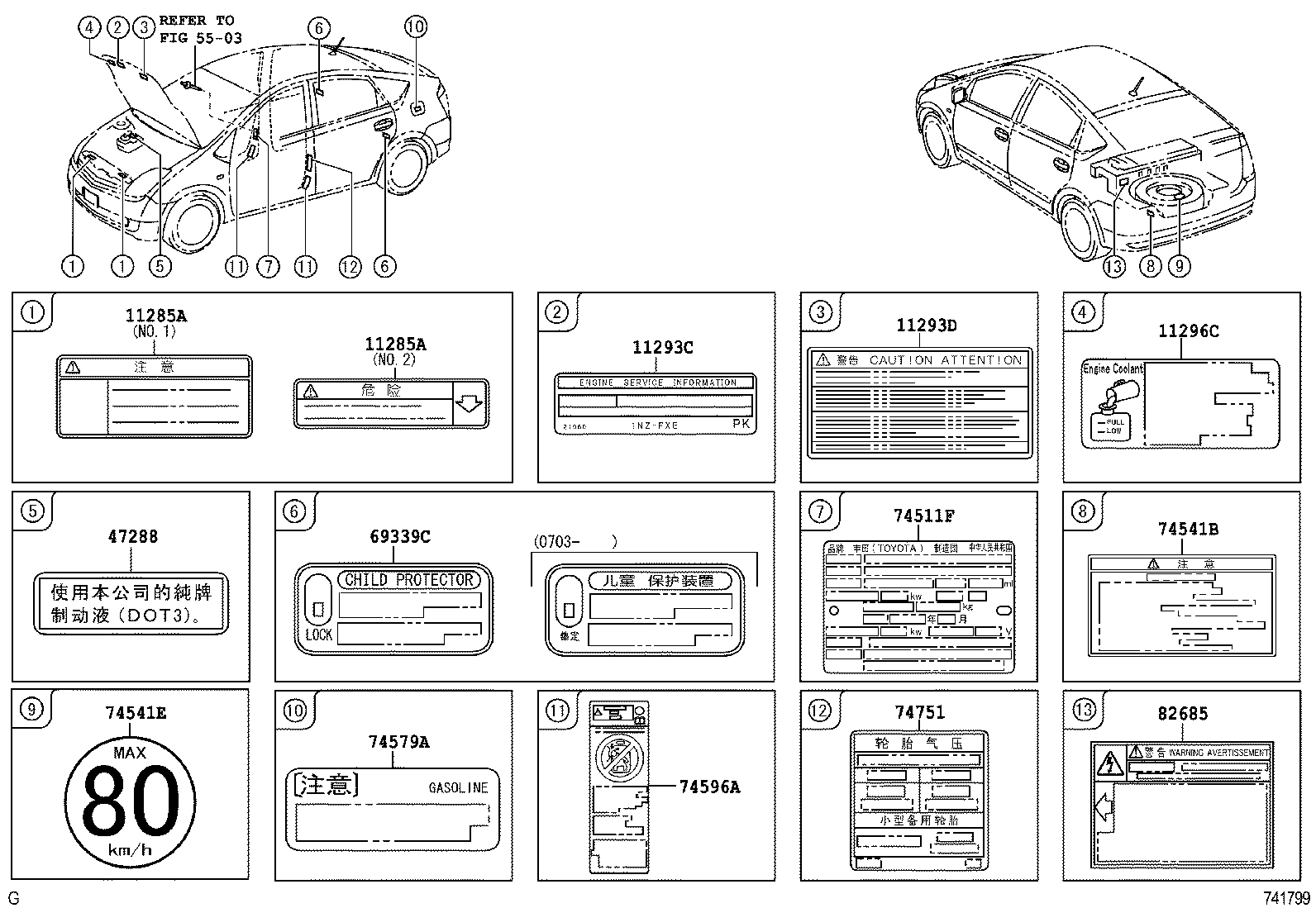

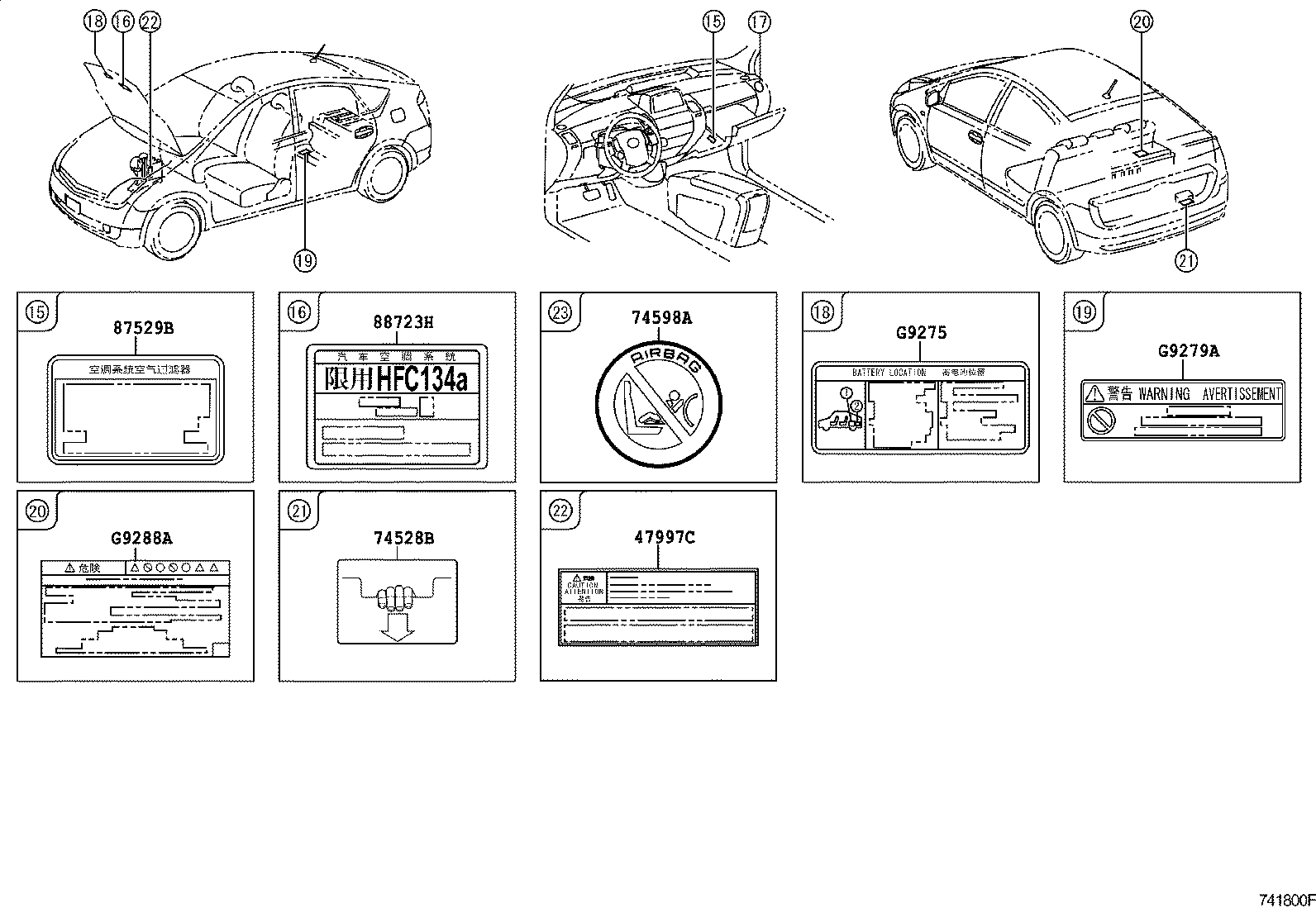

Figure 745869 745869 2005-11 → — Figure 741799B 741799B 2005-11 → — Figure 741800F 741800F 2005-11 → —

Part groups

PNCDescription
11285A Label, Coolant System Notice
11293C Label, Tune-up Specification Information
11293D Label, Engine Caution
11296C Label, Engine Service Information
16793E Label, Cooling Fan Caution
47288 Label, Brake Fluid Notice
47997C Label, Accumulator Caution, NO.1
69339C Label, Child Protector Information
74511F Label, Name (IDENTIFICATION LASER LABEL)
74528B Label, Back Door Caution
74541B Plate, Compact Spare Tire Caution
74541E Plate, Compact Spare Tire Caution
74579A Label, Unleaded Fuel Information
74596A Label, Side Airbag Caution
74598A Label, Passenger Airbag Caution
74751 Label, Tire Pressure Information
82685 Plate, Caution
87529B Label, A/C Filter Information
88723H Label, Cooler Service Caution
G9275 Label, Battery Caution, NO.1
G9279A Label, Battery Caution,NO.4
G9288A Label, Battery Carging Notice
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
