Toyota Prius (CHINA)
2005-11 → 2009-04 · chassis NHW20 · catalogue 223310 · General
Discontinued model
Data version 2009-10

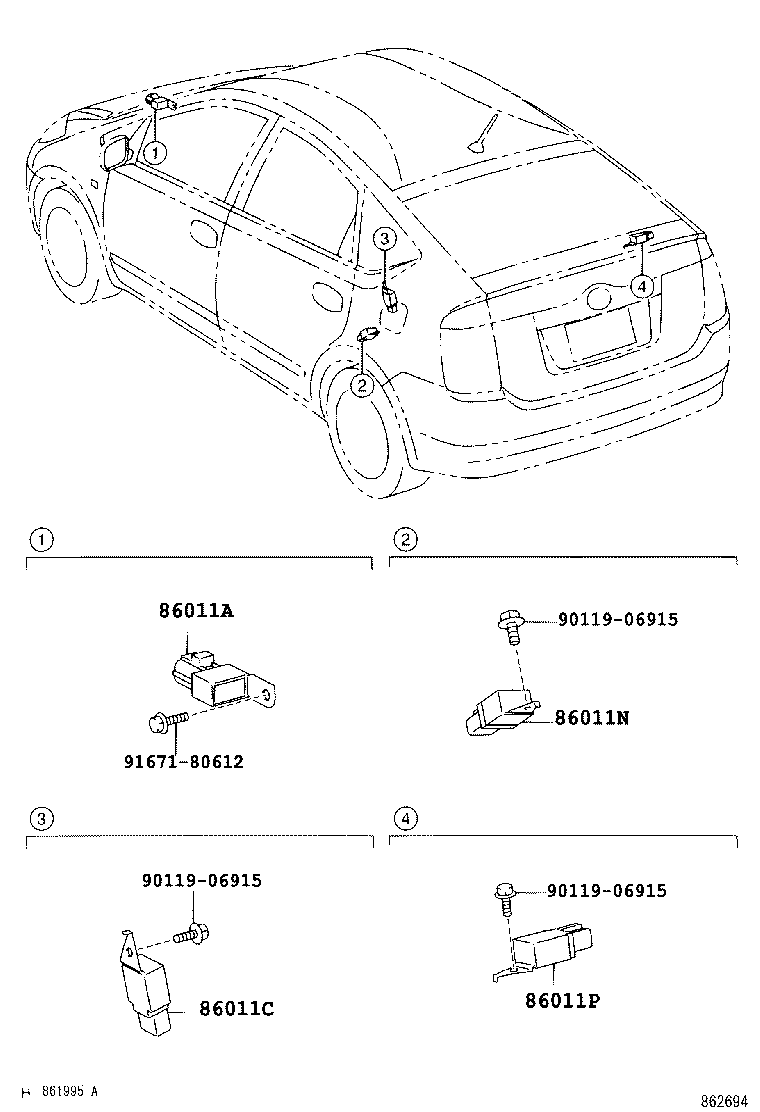

Radio Receiver & Amplifier & Condenser
9 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 86011A | Condenser, Radio Setting |
| 86011C | Filter, Noise |
| 86011N | Filter, Noise |
| 86011P | Filter, Noise |
| 86120 | Receiver Assy, Radio |
| 86183D | Cover, Audio Amplifier |
| 86211 | Bracket, Radio, NO.1 |
| 86212 | Bracket, Radio, NO.2 |
| 86280 | Amplifier Assy, Stereo Component |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
