Toyota Prius(PLUG-IN HBD)

2012-01 → 2015-06 · chassis ZVW35 · catalogue 224320 · General

Supported model Data version 2015-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

24 part groups · 2 illustrations

Illustrations

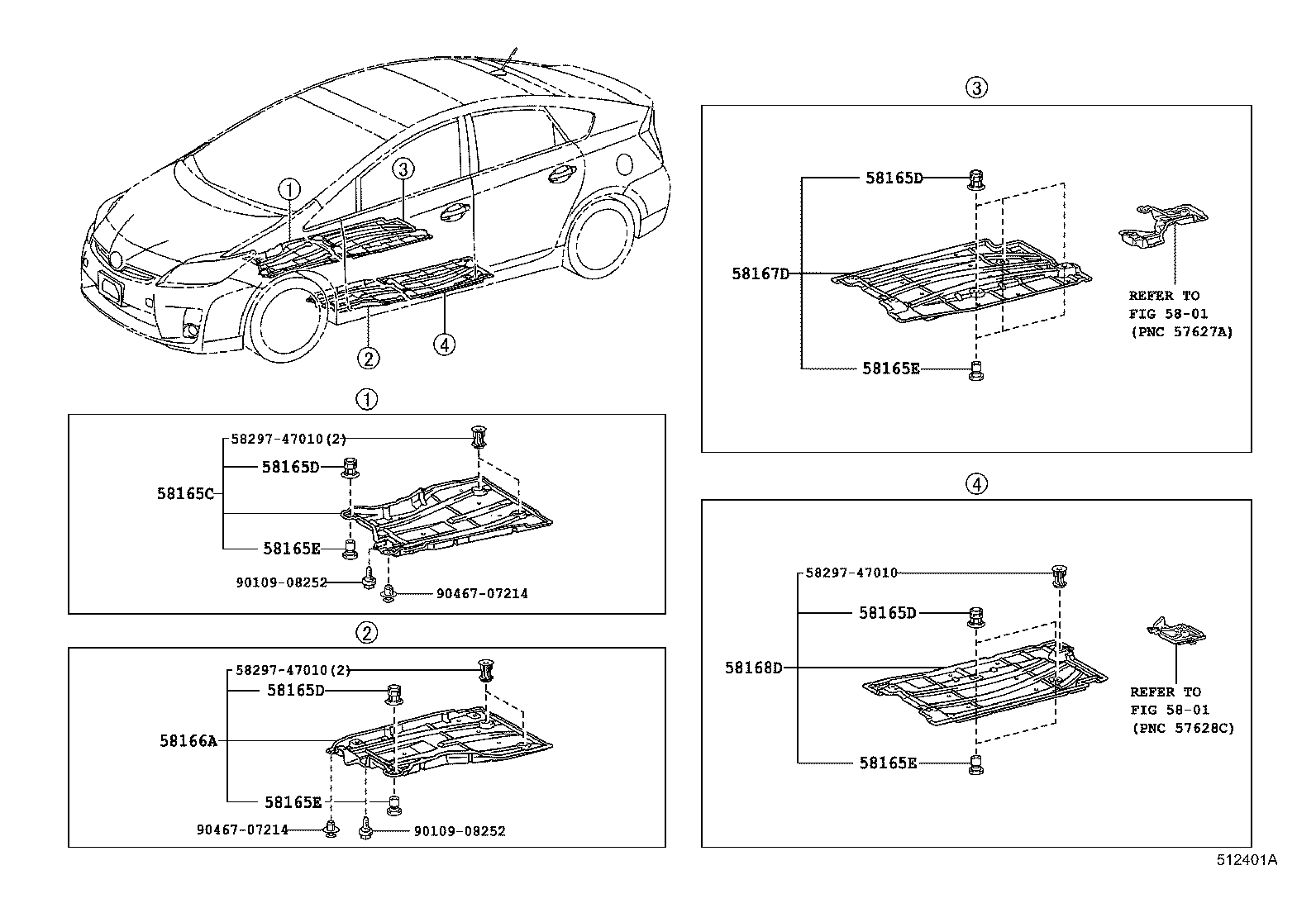

Figure 512398I 512398I 2012-01 → — Figure 512401A 512401A 2012-01 → —

Part groups

PNCDescription
51107A Reinforcement Sub-assy, Side Rail, Rear RH
51108A Reinforcement Sub-assy, Side Rail, Rear LH
51201 Crossmember Sub-assy, Front Suspension
51408 Reinforcement Sub-assy, Engine Support Bracket, Front RH
51410 Cover Assy, Engine Under, NO.1
51442E Cover, Engine Under, NO.2
51442J Cover, Engine Under, NO.3
51443C Cover, Engine Under, Rear RH
51444A Cover, Engine Under, Rear LH
51451D Screw, NO.1
51451J Bolt, NO.1
51451P Bolt, NO.2
52255 Brace, Front Suspension Member, Front RH
52256 Brace, Front Suspension Member, Front LH
52257 Brace, Front Suspension Member, Rear RH
52258A Brace, Front Suspension Member, Rear LH
52618A Absorber, Front Bumper, Lower
57104E Member Sub-assy, Front Cross
58165C Cover, Front Floor, RH
58165D Clip, Floor Cover
58165E Clip, Floor Cover
58166A Cover, Front Floor, LH
58167D Cover, Front Floor, Center RH
58168D Cover, Front Floor, Center LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
