Toyota Prius(PLUG-IN HBD)
2012-01 → 2015-06 · chassis ZVW35 · catalogue 224320 · General
Supported model
Data version 2015-12

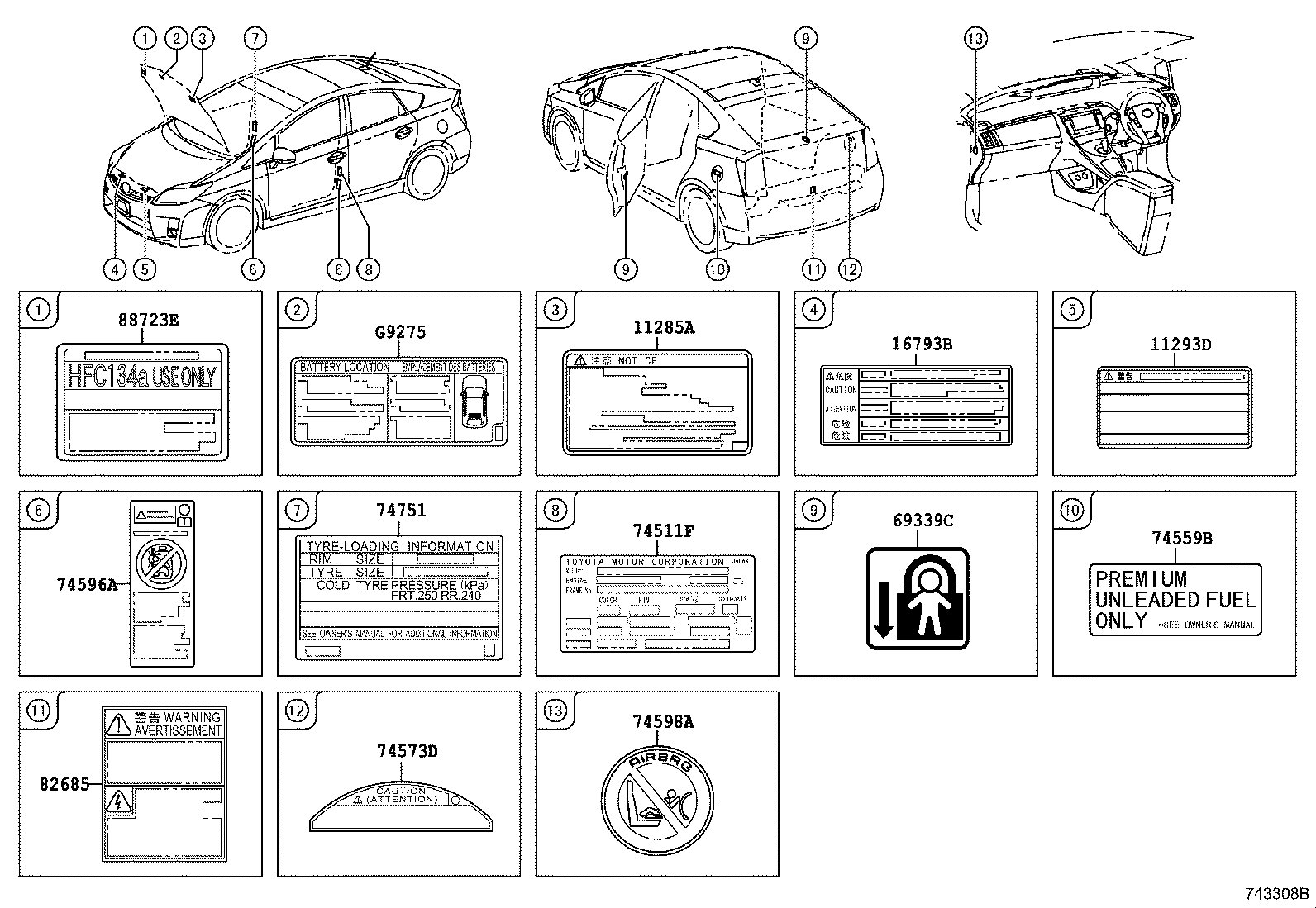

Caution Plate (EXTERIOR & INTERIOR)
14 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 11285A | Label, Coolant System Notice |
| 11291B | Plate, Engine Name |
| 11293D | Label, Engine Caution |
| 16793B | Label, Cooling Fan Information |
| 69339C | Label, Child Protector Information |
| 74511F | Label, Name (IDENTIFICATION LASER LABEL) |
| 74559B | Label, Fuel Information |
| 74573D | Label, Electric Vehicle Battery Caution |
| 74596A | Label, Side Airbag Caution |
| 74598A | Label, Passenger Airbag Caution |
| 74751 | Label, Tire Pressure Information |
| 82685 | Plate, Caution |
| 88723E | Label, Cooler Service Caution |
| G9275 | Label, Battery Caution, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
