Toyota Prius(PLUG-IN HBD)
2012-01 → 2015-06 · chassis ZVW35 · catalogue 224320 · General
Supported model
Data version 2015-12

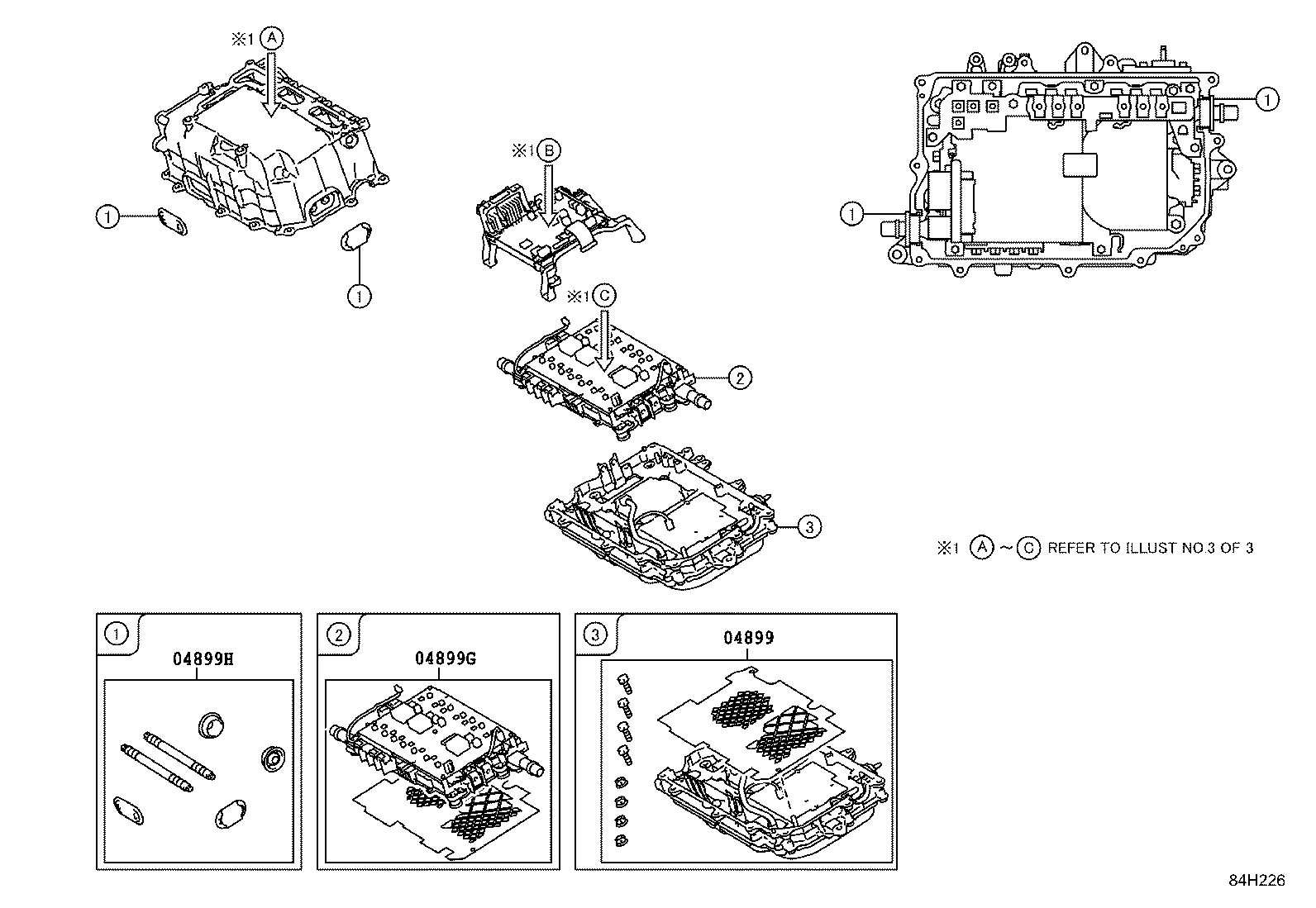

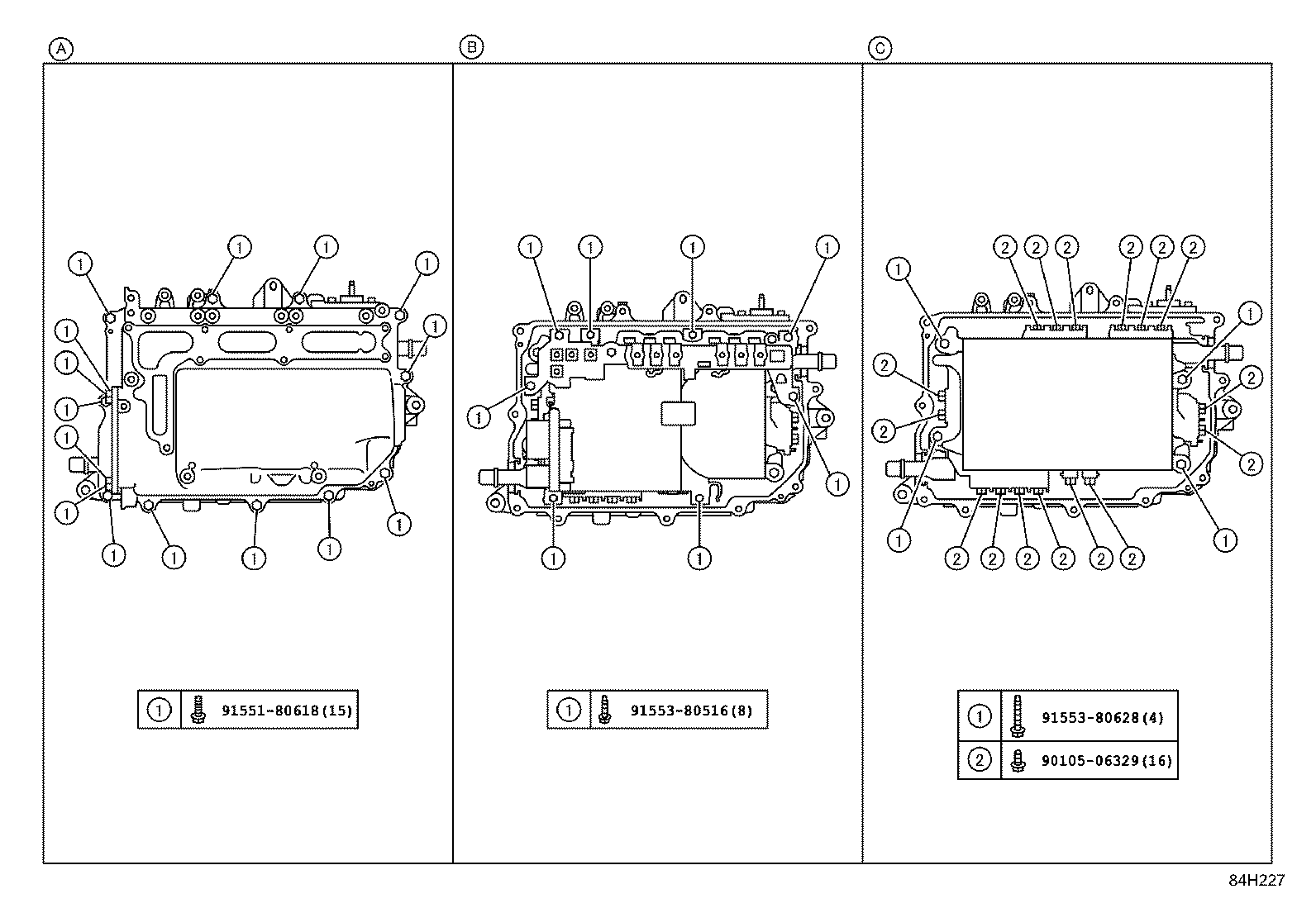

Hev Inverter
10 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 04899 | Converter Kit, HV |
| 04899G | Transistor Kit, Power Module Intelligent |
| 04899H | Plug Kit, Inverter Drain |
| G9140A | Cover Assy, Inverter, LH |
| G9200 | Inverter Assy, W/Converter |
| G920J | Sensor Sub-assy, Inverter Current |
| G9214 | Bracket, Inverter, NO.1 |
| G9219A | Bracket, Inverter Tray |
| G9221 | Cover, Inverter |
| G922L | Cover, Inverter Signal Connector |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
