Toyota Prius(PLUG-IN HBD)
2012-01 → 2015-06 · chassis ZVW35 · catalogue 224320 · General
Supported model
Data version 2015-12
Radio Receiver & Amplifier & Condenser

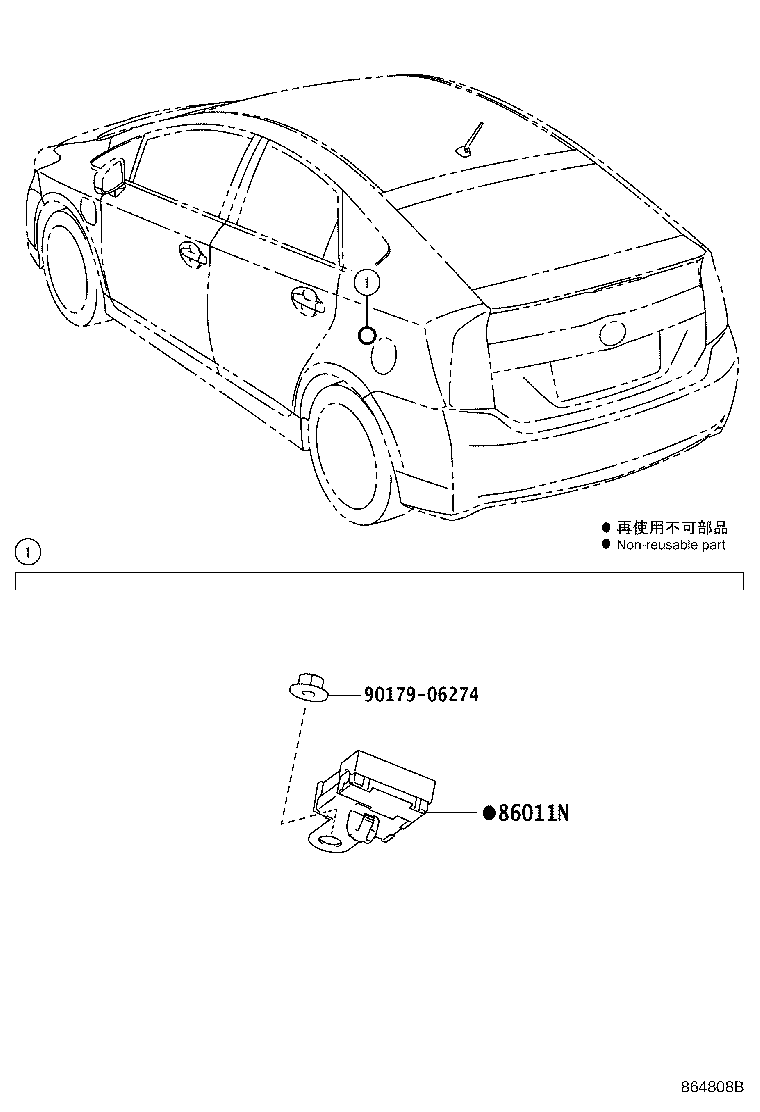

6 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 86011N | Filter, Noise |
| 86183D | Cover, Audio Amplifier |
| 86190C | Adapter Assy, Stereo Jack, NO.1 |
| 86211 | Bracket, Radio, NO.1 |
| 86212 | Bracket, Radio, NO.2 |
| 86280 | Amplifier Assy, Stereo Component |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
