Toyota Prius V

2012-03 → 2021-08 · chassis ZVW40 · catalogue 225310 · General

Supported model Data version 2017-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Panel & Back Window Glass

21 part groups · 2 illustrations

Illustrations

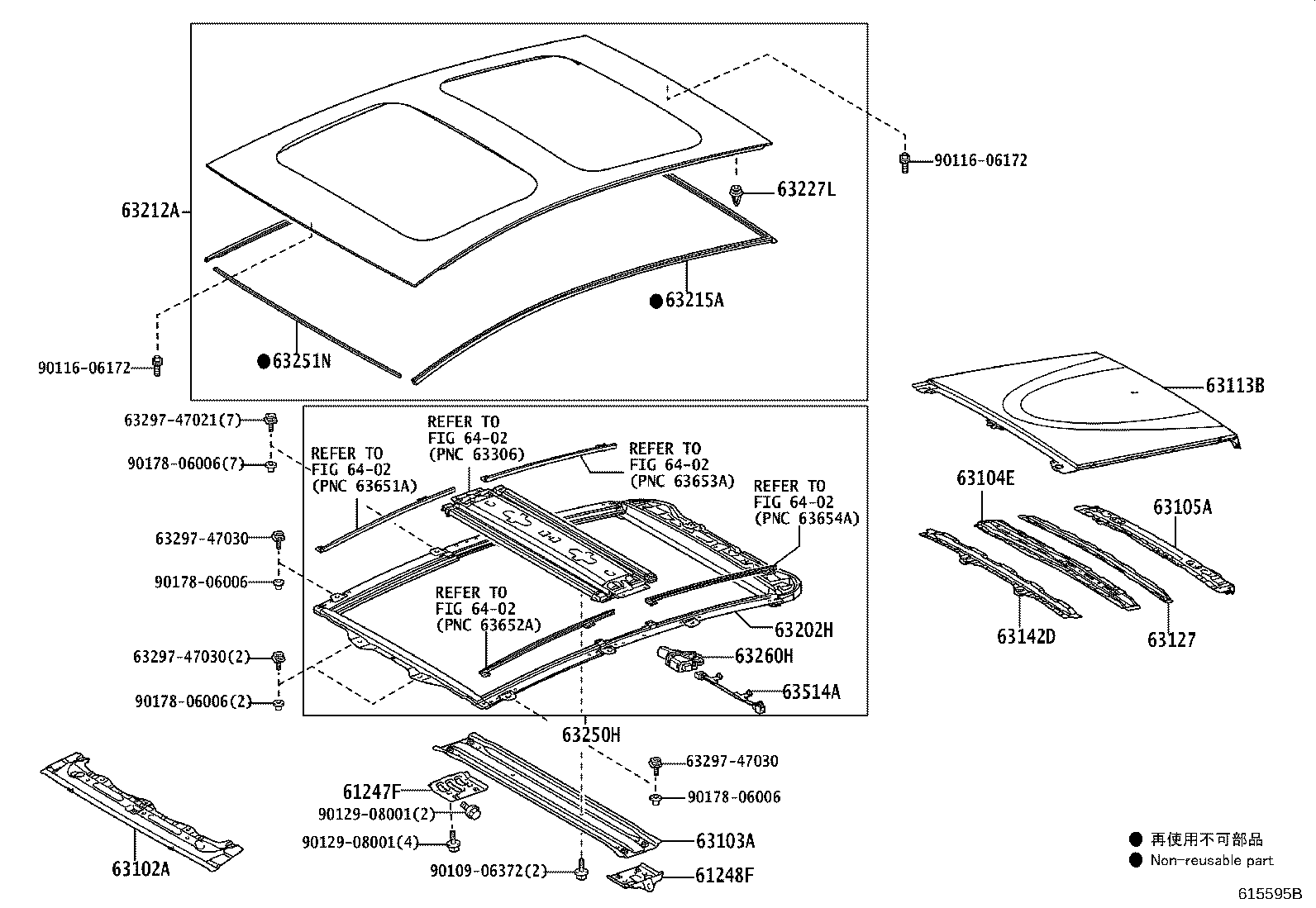

Figure 613842B 613842B 2012-03 → — Figure 615595B 615595B 2012-03 → —

Part groups

PNCDescription
61247F Reinforcement, Roof Side Rail, Inner
61248F Reinforcement, Roof Side Rail, Inner, LH
63102A Panel Sub-assy, Windshield Header
63103A Reinforcement Sub-assy, Roof Panel
63104E Reinforcement Sub-assy, Roof Panel, Rear
63105A Frame Sub-assy, Back Door Opening
63106 Reinforcement Sub-assy, Roof Panel, NO.4
63111 Panel, Roof
63113B Panel, Roof, Rear
63127 Reinforcement, Roof Panel, NO.5
63141G Reinforcement, Roof Panel, NO.1
63142D Reinforcement Sub-assy, Roof Panel, Rear
63143B Reinforcement, Roof Panel, NO.3
63202H Rail Sub-assy, Slide Roof
63212A Glass, Roof Window
63215A Moulding, Roof Window, Upper
63227L Clip, Roof Window
63250H Housing Assy, Sunshade
63251N Dam, Roof Window Glass Adhesive, NO.1
63260H Gear Assy, Sliding Roof Drive
63514A Wire, Connector
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
