Toyota Prius V

2012-03 → 2021-08 · chassis ZVW40 · catalogue 225310 · General

Supported model Data version 2017-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

11 part groups · 2 illustrations

Illustrations

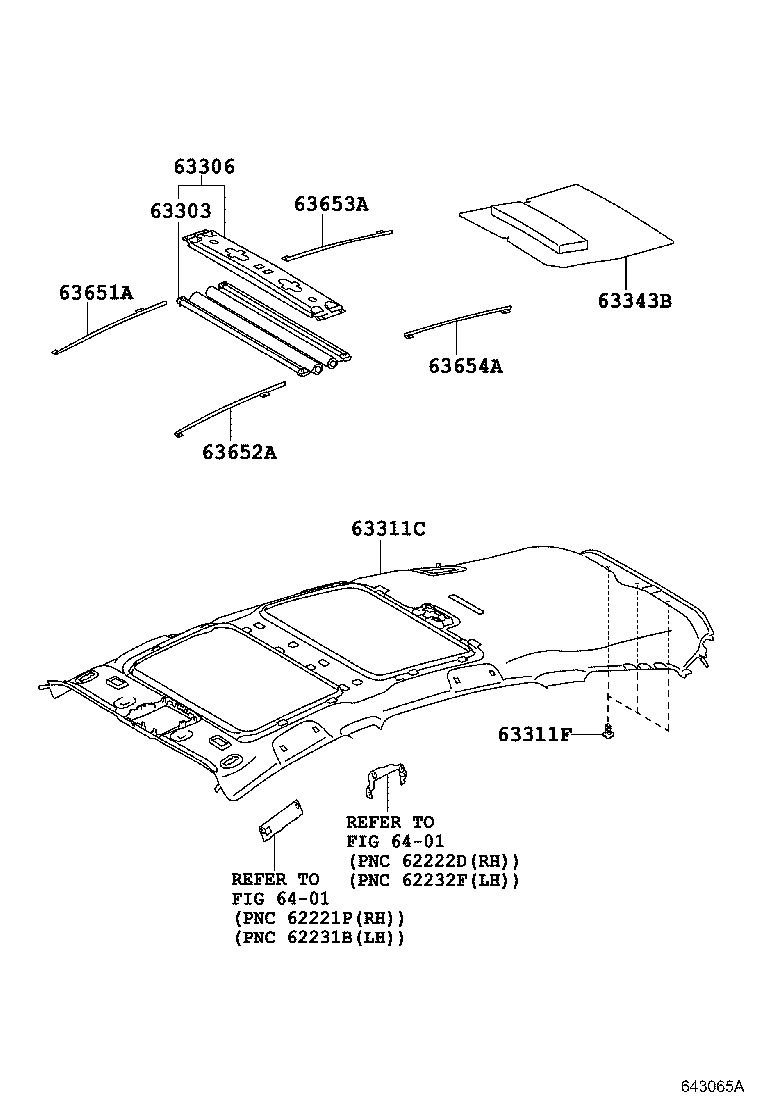

Figure 643064A 643064A 2012-03 → — Figure 643065A 643065A 2012-03 → —

Part groups

PNCDescription
63303 Trim Sub-assy, Sunshade, NO.2
63306 Trim Sub-assy, Sunshade
63311C Headlining, Roof
63311F Clip, Roof Headlining, NO.1
63341D Pad, Roof Silencer, Front
63343B Pad, Roof Silencer, Rear
63345D Pad, Roof Silencer, Center
63651A Garnish, Sunshade, NO.1 RH
63652A Garnish, Sunshade, NO.1 LH
63653A Garnish, Sunshade, NO.2 RH
63654A Garnish, Sunshade, NO.2 LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
