Toyota Prius V

2012-03 → 2021-08 · chassis ZVW40 · catalogue 225310 · General

Supported model Data version 2017-12

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Seat & Seat Track

52 part groups · 5 illustrations

Illustrations

719121E 2015-04 → —

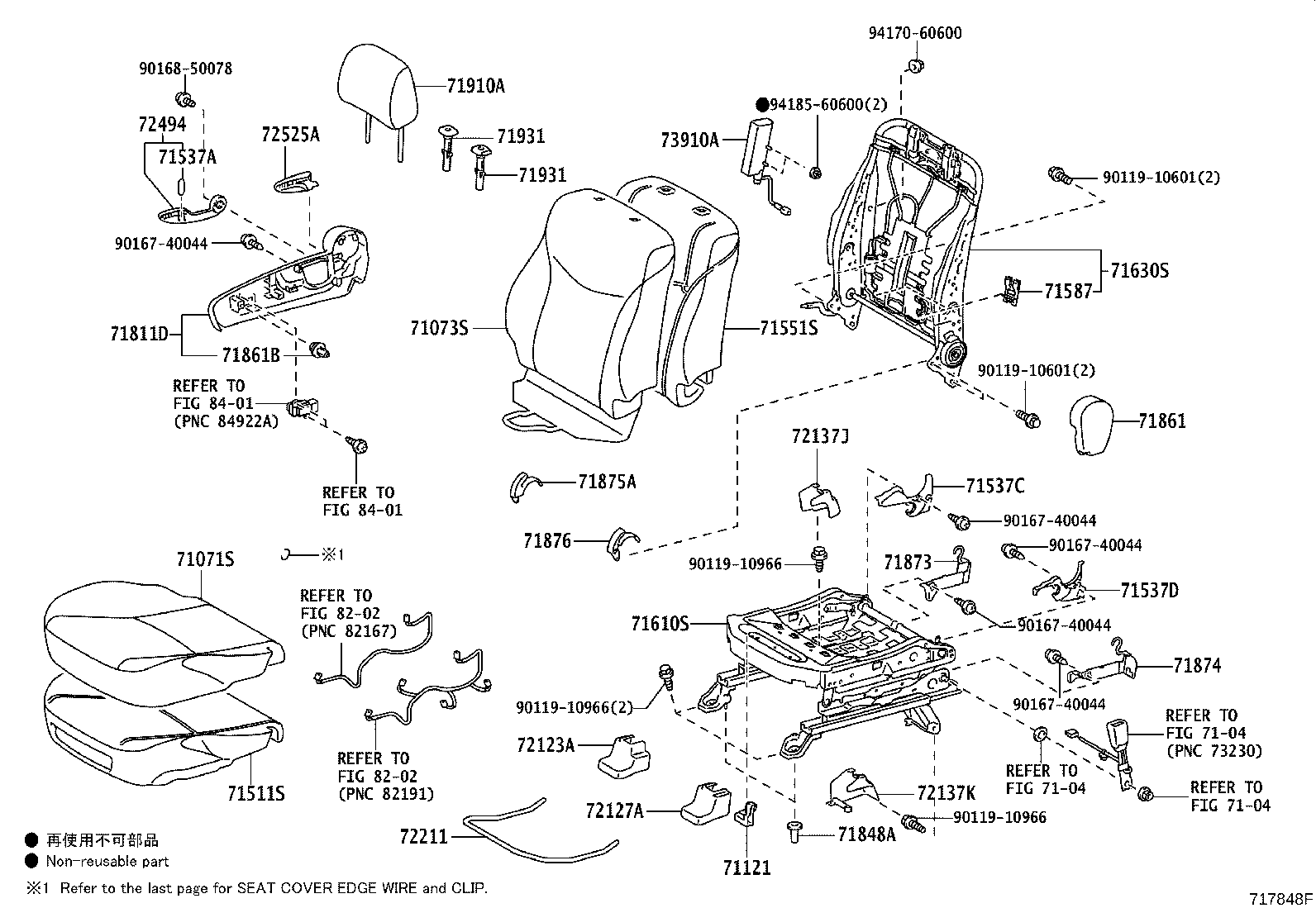

717848F 2012-03 → —

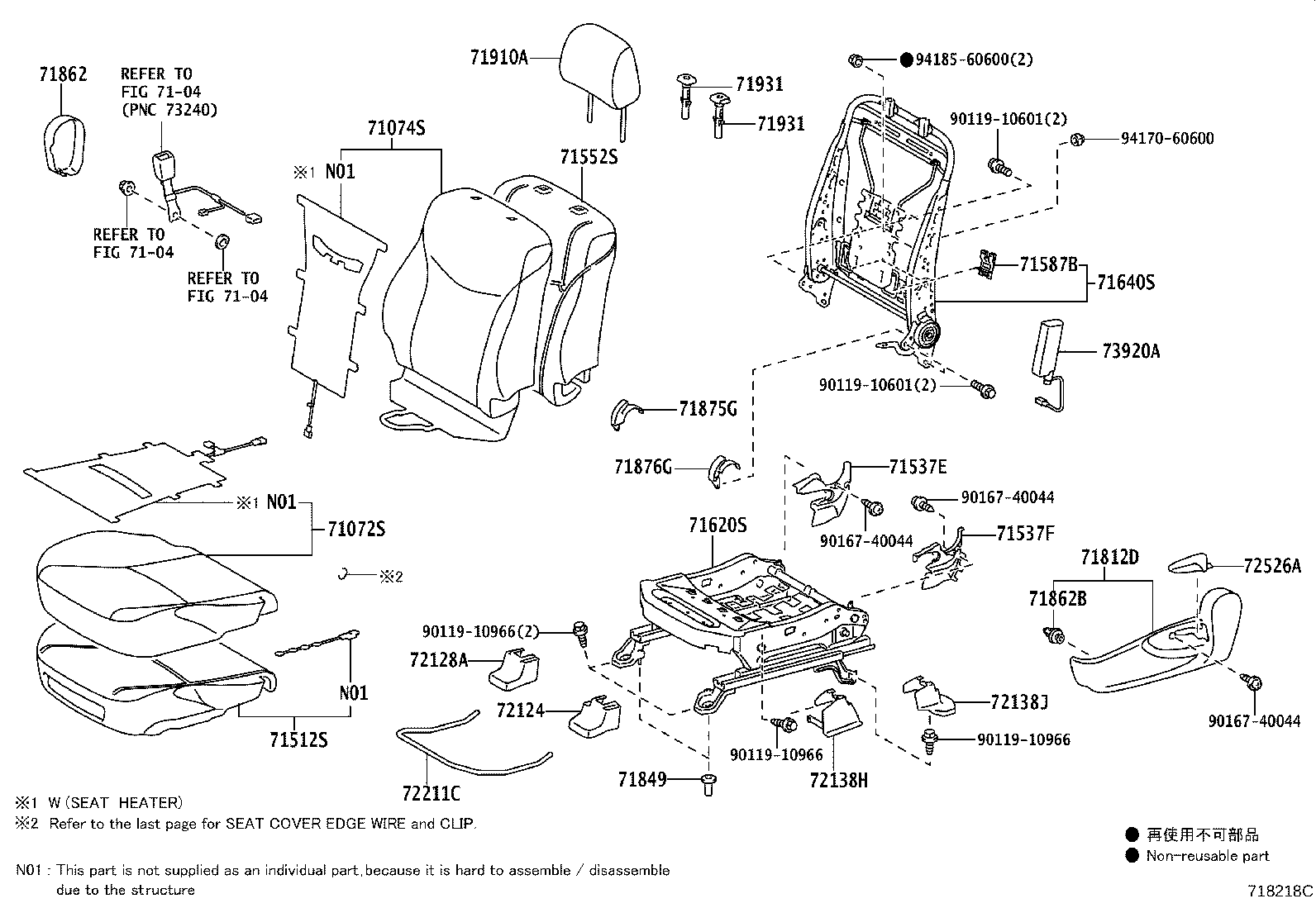

718218C 2012-03 → —

719024T 2012-03 → 2017-12

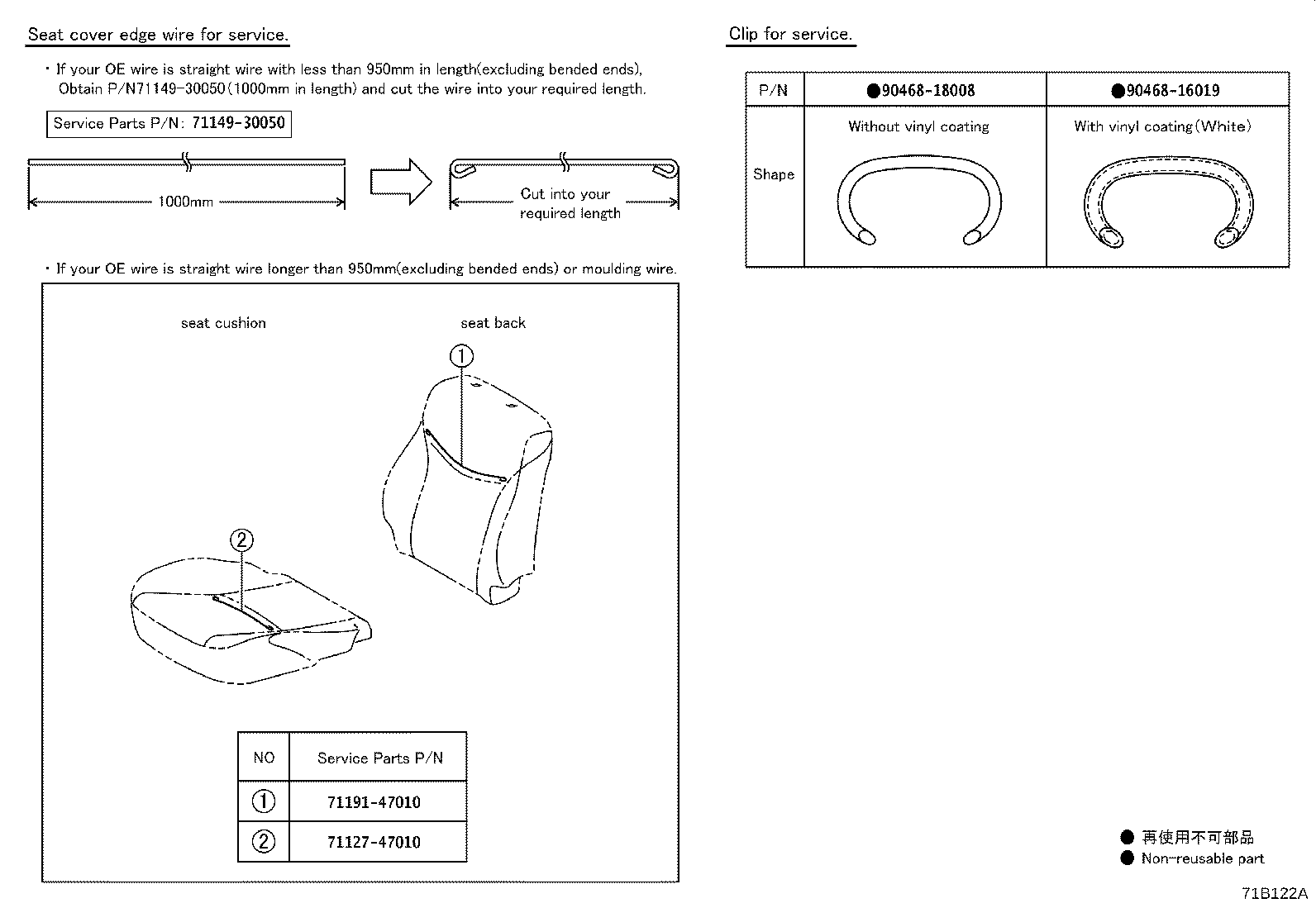

71B122A 2017-12 → —

Part groups

PNC	Description
71071S	Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S	Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S	Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S	Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71121	Bracket, Front Seat Cushion, RH
71511S	Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S	Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71537A	Protector, Front Seat Cushion
71537C	Protector, Front Seat Cushion Edge, RH
71537D	Protector, Front Seat Cushion Edge, LH
71537E	Protector, Front Seat Cushion, NO.1
71537F	Protector, Front Seat Cushion, NO.2
71551S	Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S	Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71587	Protector, Front Seatback Edge
71587B	Protector, Front Seatback Edge
71610S	Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71620S	Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71630S	Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
71640S	Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
71811D	Shield, Front Seat Cushion, RH
71812D	Shield, Front Seat Cushion, LH
71848A	Cap, Seat Adjuster Cover, RH
71849	Cap, Seat Adjuster Cover, LH
71861	Shield, Front Seat Cushion, Inner RH
71861B	Clip(FOR FRONT SEAT SHIELD, RH)
71862	Shield, Front Seat Cushion, Inner LH
71862B	Clip(FOR FRONT SEAT SHIELD, LH)
71867A	Shield, Front Seat Cushion, Inner NO.1 RH
71873	Shield, Front Seat Cushion, Lower RH
71874	Shield, Front Seat Cushion, Lower LH
71875A	Cover, Reclining Adjuster Inside, RH
71875G	Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
71876	Cover, Reclining Adjuster Inside, LH
71876G	Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
71910A	Headrest Assy, Front Seat
71931	Support, Front Seat Headrest
72123A	Cover, Seat Track Bracket, Outer Front RH
72124	Cover, Seat Track Bracket, Outer Front LH
72127A	Cover, Seat Track Bracket, Inner Front RH
72128A	Cover, Seat Track Bracket, Inner Front LH
72137J	Cover, Front Seat Track, RH Rear Outer
72137K	Cover, Front Seat Track, RH Rear Inner
72138H	Cover, Front Seat Track, LH Rear Inner
72138J	Cover, Front Seat Track, LH Rear Outer
72211	Handle, Seat Track Adjusting
72211C	Handle, Seat Track Adjusting
72494	Handle, Vertical Adjusting, RH
72525A	Handle, Reclining Adjuster Release, RH
72526A	Handle, Reclining Adjuster Release, LH
73910A	Airbag Assy, Front Seat, RH
73920A	Airbag Assy, Front Seat, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
